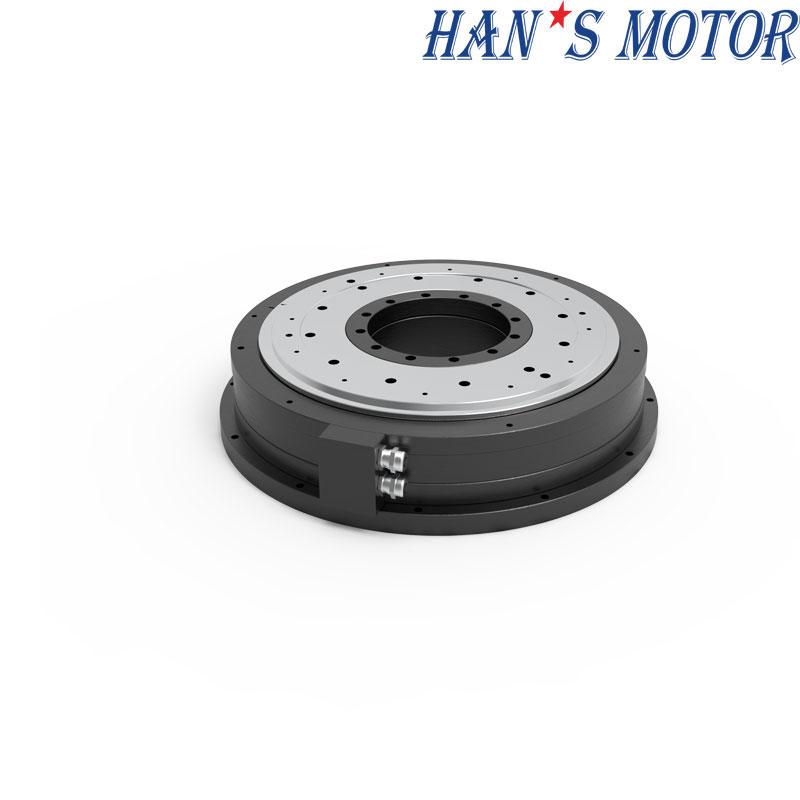

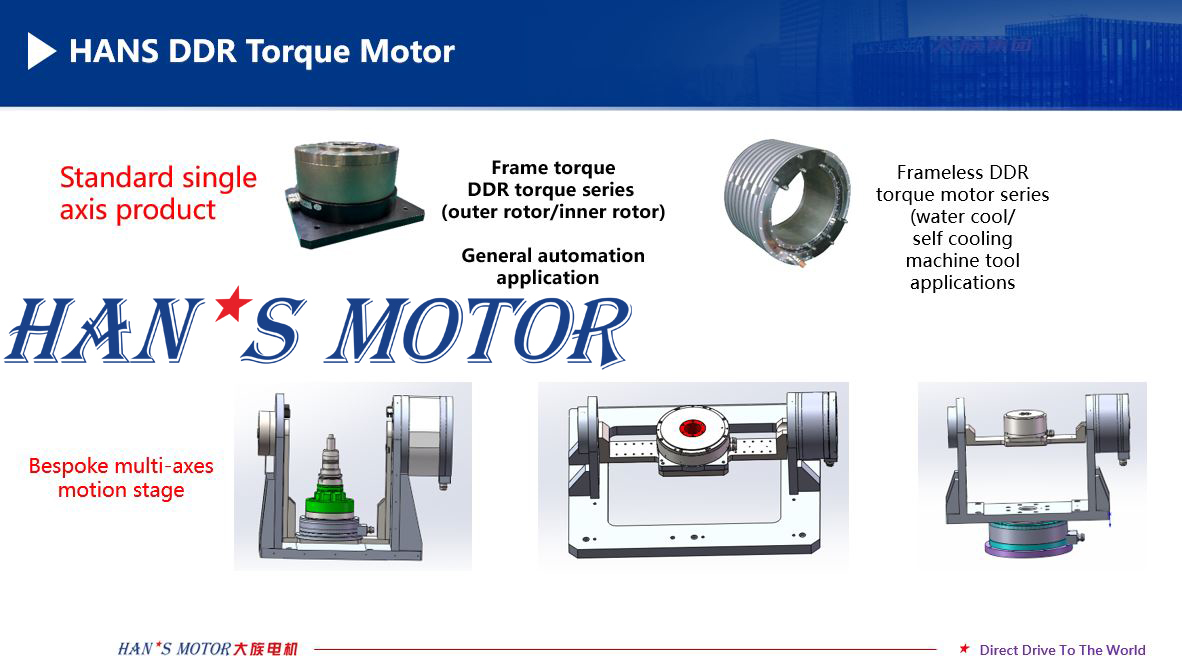

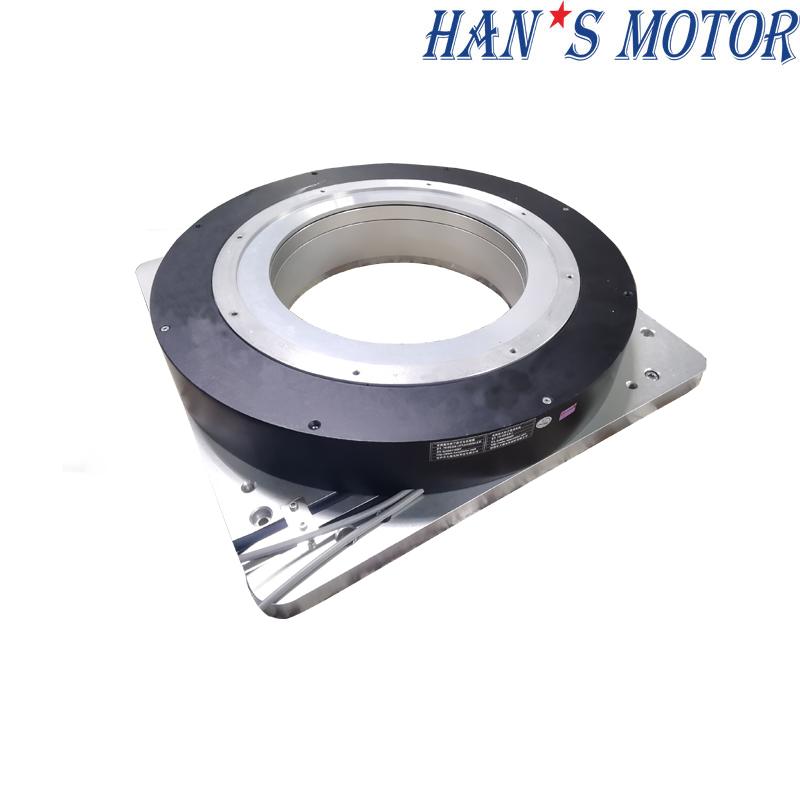

Products Name: HAN'S Frame inner Rotor Torque Motor HANS-H Series

Product Specifications

Frame inner Rotor Torque Motor HANS-H Series Specification
Motor Model No.： HANS-H-xxx-Dxxx-Hxxx-T25-1-A			H-005	H-010	H-015
Performance Parameters	Symbol	Unit	H-005	H-010	H-015
Cable Outlet			1	1	1
Outer Diameter	D1	mm	154	154	154
Center Hole	D2	mm	25	25	25
Installation Height	H	mm	55	73	90
Continuous torque (Tmax)	Tc	Nm	5.0	10.0	17.7
Peak torque	Tp	Nm	15	30	51
Vmax,Tc@Vbus=310Vdc	Nmax,Tc	Rpm	600	600	350
Vmax,Tp@Vbus=310Vdc	Nmax,Tp	Rpm	500	500	200
Vmax,0@Vbus=310Vdc	Nmax,0	Rpm	800	800	450
Encoder (BISS-C)		P/rev	23bits	23bits	23bits
Positioning Accuracy		arc sec	±10/±5	±10/±5	±10/±5
Repeat Accuracy		arc sec	±1.5	±1.5	±1.5
Maximum axial load (recommend)	Fa	N	3000	3000	3000
Maximum torque load (recommend)	T	Nm	200	200	200
Motor outlet		M	0.2	0.2	0.2
Cable bending radius (within drag chain）		mm	37.5	37.5	37.5
Continuous current (Tmax)	Ic	Arms	2.3	2.3	2.3
Peak Current (1s)	Ip	Arms	7	7	7
Torque Constant (within 25℃±5℃）	Tf	Nm/Arms	2.16	3.70	7.70
Electromotive constant (within 25℃±5℃）	Te	Vrms/rad/s	0.72	1.23	2.60
Resistance (within 25℃±5℃）	R	Ω(p-p)	6	8	13
Inductance (within 25℃±5℃）	L	mH(p-p)	15	20	35
Pole pairs	p		8	8	8
Max.coil temperature	Tmax	℃	120	120	120
Motor Mass		KG	4.2	5.5	8.0
Mover Mass	Mc	KG	1.1	1.5	2.5
Rotor Moment of Inertia	Jm	Kg*m2	0.0021	0.0029	0.0049
Axial Runout		mm	0.03	0.03	0.03
Radial Runout		mm	0.03	0.03	0.03

Dimension

Characteristics:

Standardization：Single interface of encoder, good versatility of power cable and encoder cable.

User-friendly：Absolute encoder, needn’t change hall commutation, power-on without jitter.

Short lead-time：Core materials are made in China, with sufficient stock.

High precision：It can reach±10/±5 arc-sec before and after compensation.

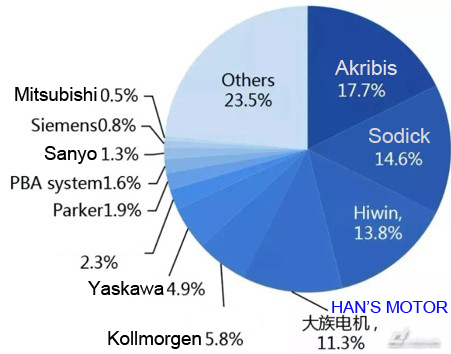

Replaceable：For the main competitors.: Hiwin, Akribis, Kollmorgen

Wide ranges of specifications：Continuous torque is from 1Nm to 380Nm, peak torque is 3Nm to 1100Nm

Customization：Meet customer’s satisfaction of high-end and cost-effective.
