High Torque Frame Motor Direct Drive Motor

Low Noise High Torque DDR Torque Motor Industrial Robot Arm Joints HANS-G Series

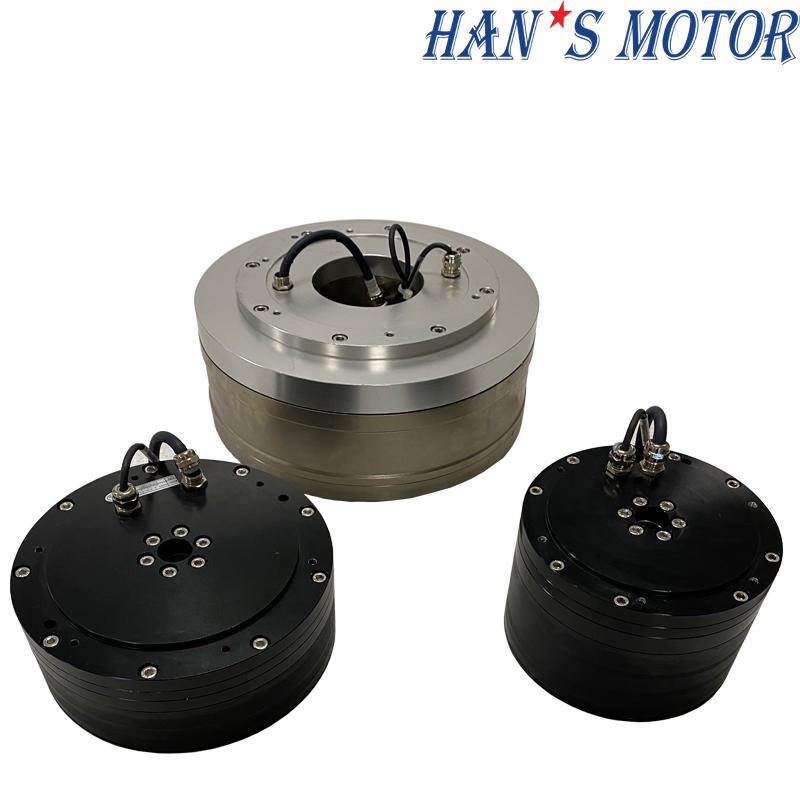

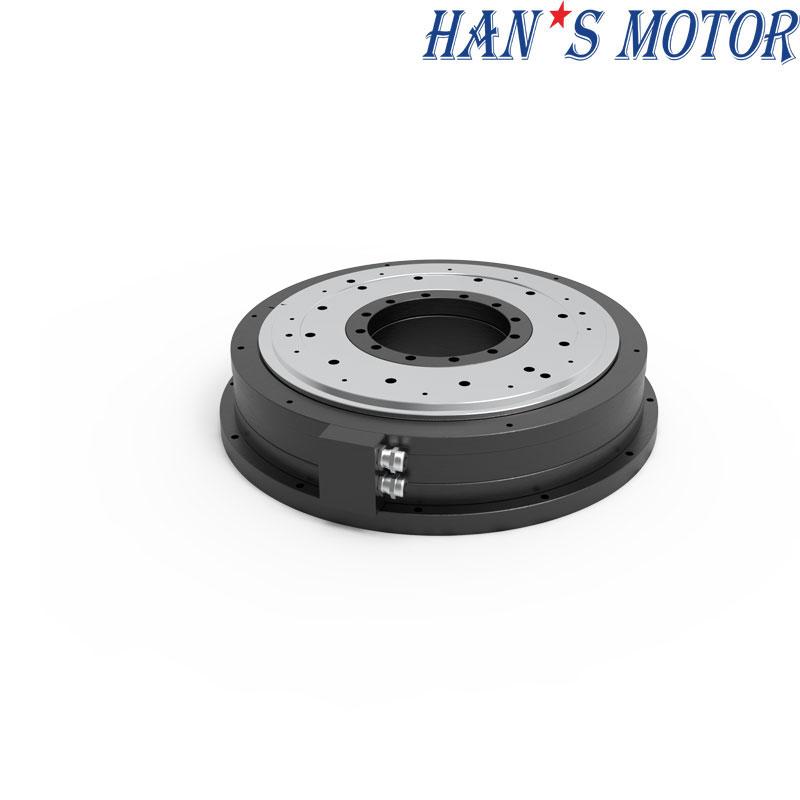

HAN'S High-Precision Large Hollow Frame Inner Rotor Torque Motor

Product description:

Highly integrated precision design, easier to use

Large hollow frame torque motor, more powerful

Features:

Small volume, high torque, high precision, standardization,Simplification, low cost

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name:

High Speed Torque Motor Frame Inner Rotor Torque Motor HAN'S-G Series

Product Specifications

Frame Inner Rotor Torque Motor HANS-G Series Specification
Motor Model No.：HANS-G-xxx-Dxxx-Hxxx-T43-1-A			G-025	G-050	G-070
Performance Parameters	Symbol	Unit	G-025	G-050	G-070
Cable Outlet			1	1	1
Outer Diameter	D1	mm	208	208	208
Center Hole	D2	mm	43	43	43
Installation Height	H	mm	90	130	170
Continuous torque (Tmax)	Tc	Nm	25	50	74
Peak torque	Tp	Nm	75	150	222
Vmax,Tc@Vbus=310Vdc	Nmax,Tc	Rpm	550	260	170
Vmax,Tp@Vbus=310Vdc	Nmax,Tp	Rpm	460	190	110
Vmax,0@Vbus=310Vdc	Nmax,0	Rpm	600	300	200
Encoder (BISS-C)		P/rev	23bits	23bits	23bits
Positioning Accuracy		arc sec	±10/±5	±10/±5	±10/±5
Repeat Accuracy		arc sec	±1.5	±1.5	±1.5
Maximum axial load (recommend)	Fa	N	3000	3000	3000
Maximum torque load (recommend)	T	Nm	200	200	200
Motor outlet		M	0.2	0.2	0.2
Cable bending radius (within drag chain）		mm	37.5	37.5	37.5
Continuous current (Tmax)	Ic	Arms	4.3	4.3	4.3
Peak Current (1s)	Ip	Arms	13	13	13
Torque Constant (within 25℃±5℃）	Tf	Nm/Arms	5.75	11.50	17.20
Electromotive constant (within 25℃±5℃）	Te	Vrms/rad/s	1.92	3.83	5.73
Resistance (within 25℃±5℃）	R	Ω(p-p)	2.5	4.5	5.7
Inductance (within 25℃±5℃）	L	mH(p-p)	7.4	12.2	16.0
Pole pairs	p		16	16	16
Max.coil temperature	Tmax	℃	120	120	120
Motor Mass		KG	17	27	32
Mover Mass	Mc	KG	6.0	8.3	9.2
Rotor Moment of Inertia	Jm	Kg*m2	0.015	0.027	0.031
Axial Runout		mm	0.05	0.05	0.05
Radial Runout		mm	0.05	0.05	0.05

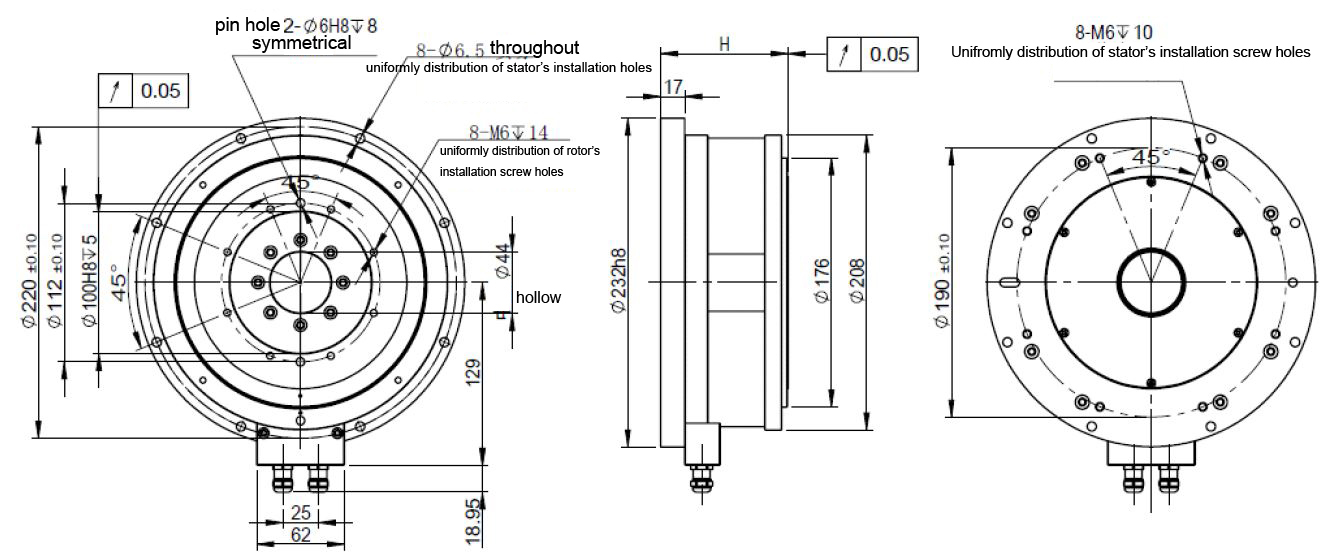

Dimension

Characteristics:

Direct drive, high dynamic response;

High accuracy;
Integrated BISS-C interface absolute position feedback;
Inner rotor/outer rotor structure;
High speed/low speed winding design;
Reliable performance, mature process, fast delivery

Minimal torque fluctuation, low moment of inertia, fast dynamic response
