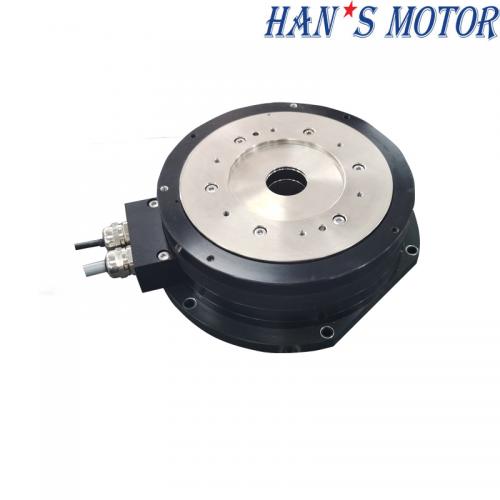

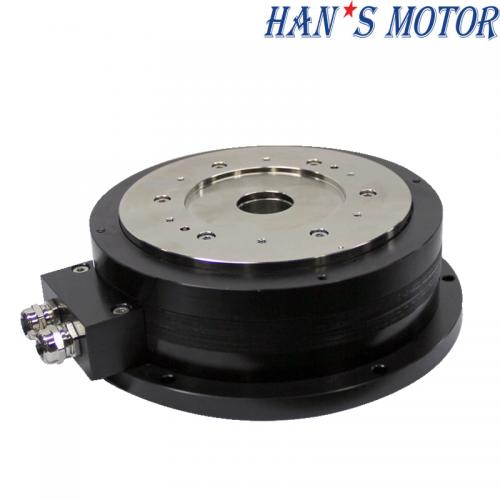

145mm Outer Diameter Cost-Effective TX Series Direct Drive 5Nm High Reliability Frame Inner Rotor Torque Motors

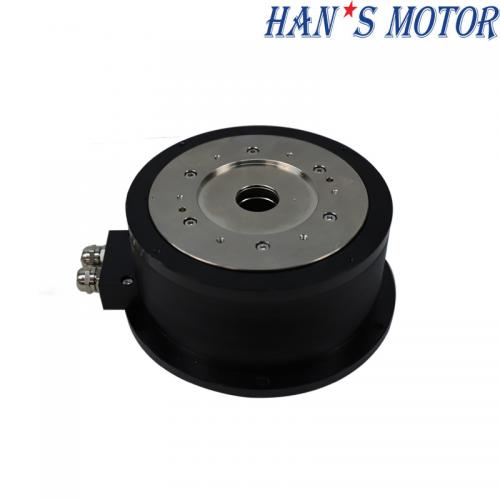

TX Series High Dynamic Performance Frame Inner Rotor Torque Motor TX-005-D145-H62-T25-1-A

Product description:

1. High dynamic performance and high reliability;

2. High dynamic response and high drive control;

3. Simplified mechanical designandSimple installation;

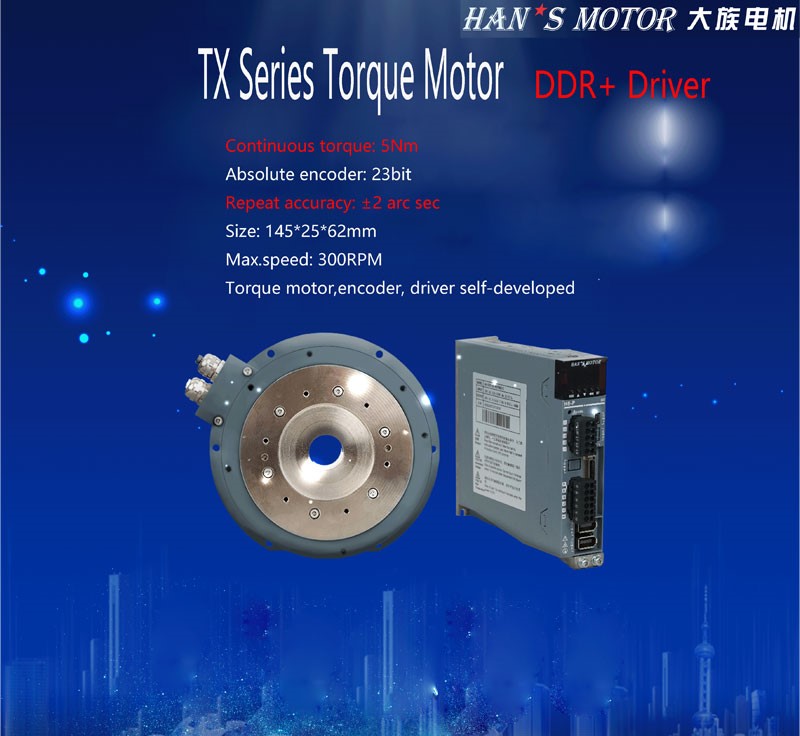

4. Outer diameter 145mm, continuous torque 5Nm, peak torque 15Nm, Max. speed 300RPM and 23bit absolute encoder, positioning accuracy:±15 arc sec and 2.1A continuous current.

Features:

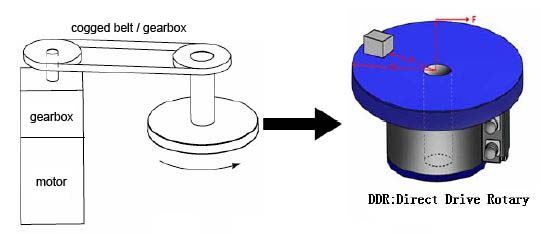

1. The Direct Drive Rotary or DDR motor technology eliminates the mechanical transmissions and many of the negative aspects associated with conventional servo systems.

2. They are rigid, more compact, provide high dynamic performance, reduce cost of ownership, simplify the design of the machine and reduce wear and maintenance.

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name:

TX Series Frame Inner Rotor Torque Motor TX-005-D145-H62-T25-1-A Self-developed Integrated 5Nm Torque Motors

Product Specifications

Motor Model No.： TX-005-D145-H62-T25-1-A			5Nm.
Performance Parameters	Symbol	Unit	5Nm.
Outer Diameter	D1	mm	145
Center Hole	D2	mm	25
Installation Height	H	mm	62
Continuous torque (Tmax)	Tc	Nm	5.0
Peak torque	Tp	Nm	15
Vmax,0@Vbus=310Vdc	Nmax,0	Rpm	300
Encoder (BISS-C)		P/rev	23bits
Positioning Accuracy		arc sec	±15
Repeat Accuracy		arc sec	±2
Continuous current (Tmax)	Ic	Arms	2.1
Peak Current (1s)	Ip	Arms	6.3
Torque Constant (within 25℃±5℃）	Tf	Nm/Arms	2.4
Electromotive constant (within 25℃±5℃）	Te	Vrms/rad/s	0.8
Resistance (within 25℃±5℃）	R	Ω(p-p)	8.4
Inductance (within 25℃±5℃）	L	mH(p-p)	15.4
Pole pairs	p		8
Max.coil temperature	Tmax	℃	120
Motor Mass		KG	3.9
Mover Mass	Mc	KG	0.95
Rotor Moment of Inertia	Jm	Kg*m2	0.00166
Axial Runout		mm	0.03
Radial Runout		mm	0.03

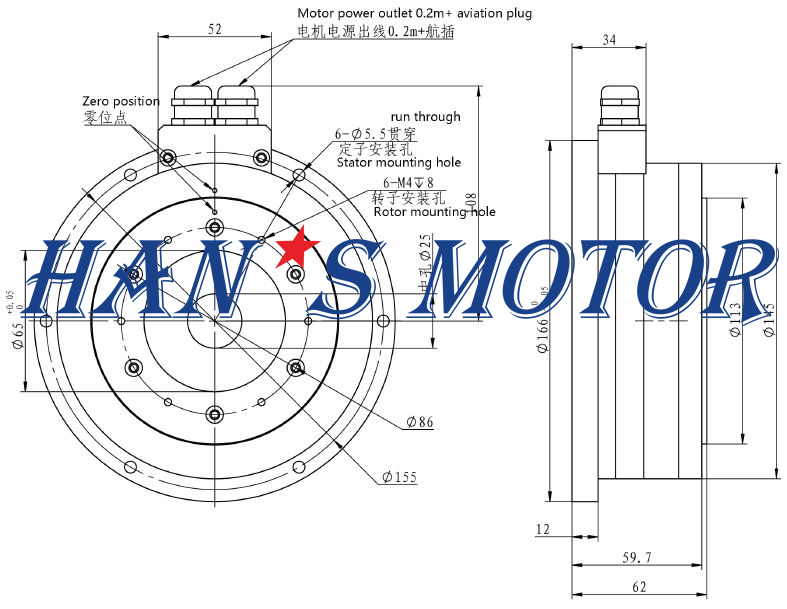

Dimension

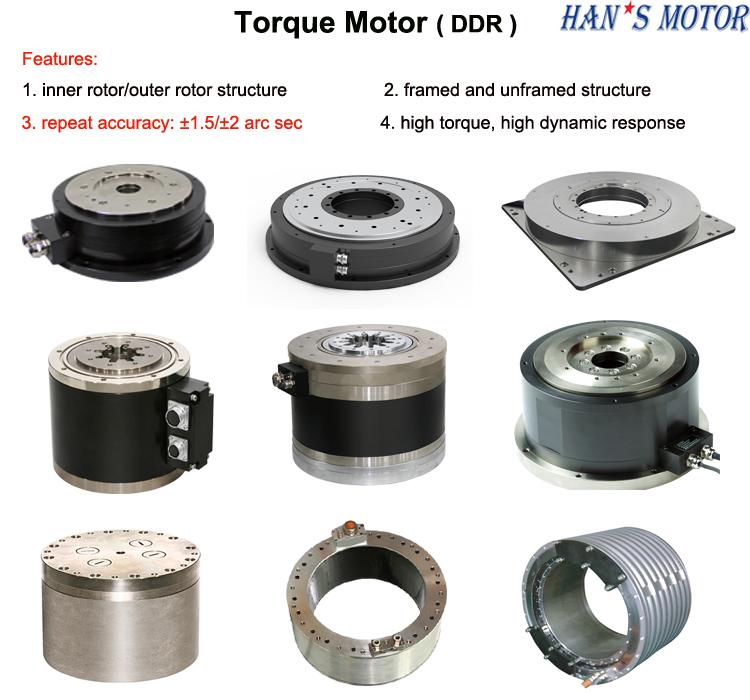

high peak torque motors

Characteristics:

1. Excellent dynamic performance

2. Simple usage: Absolute encoder, needn’t change phase of Hall, power on without shake.

3. Fast delivery time: Major materials are made in China.

4. High repeat precision: It can reach ±2.0 arc sec before/ after compensation.

5. Compact design, low inertia, light weight, portable size, easy installation, suit for high speed and high frequency motion

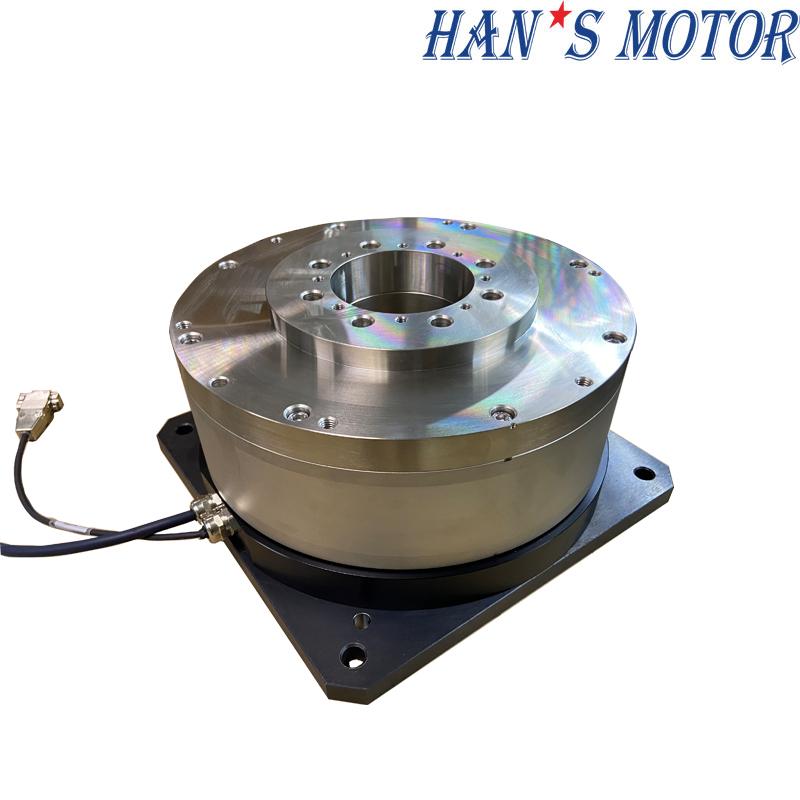

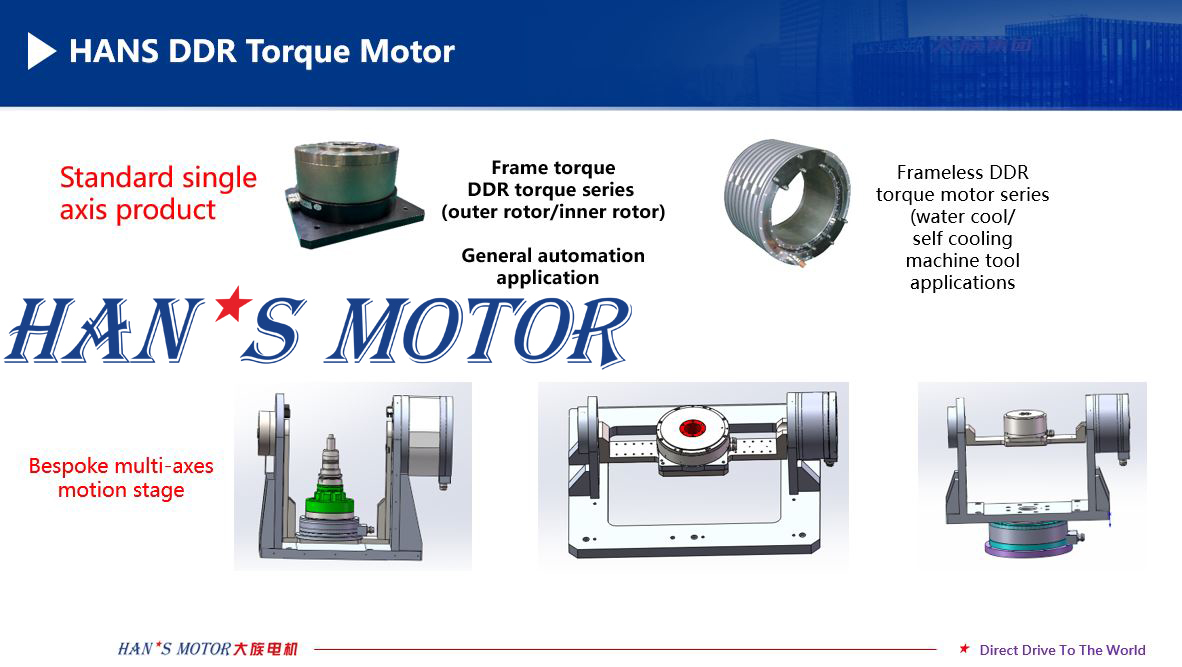

direct drive rotary motors motion control

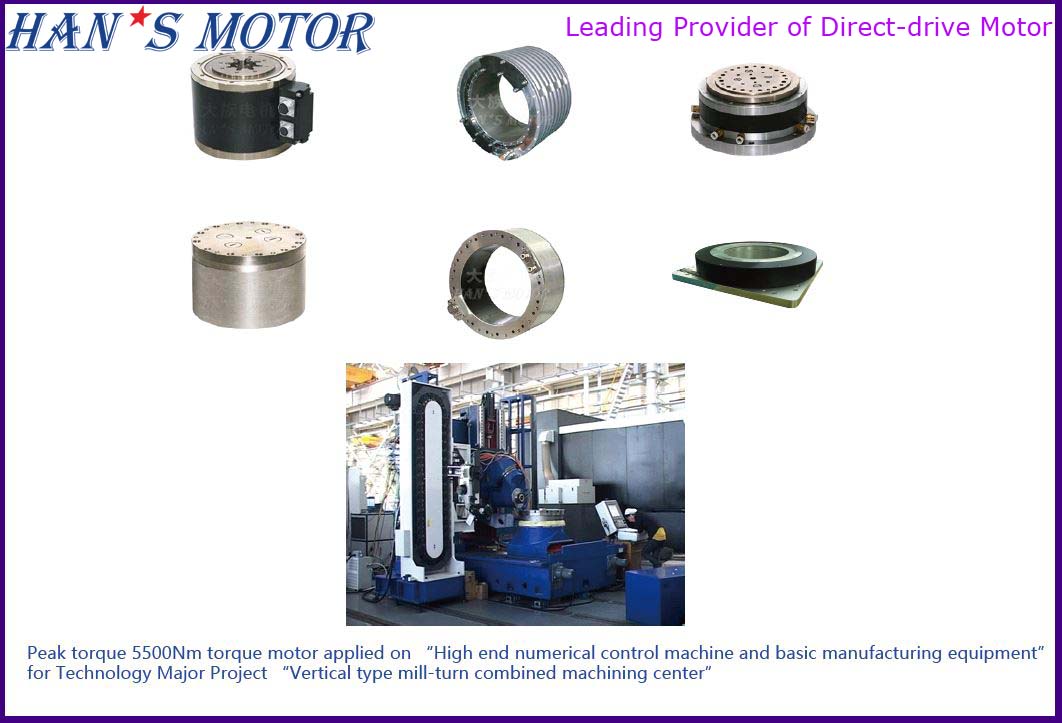

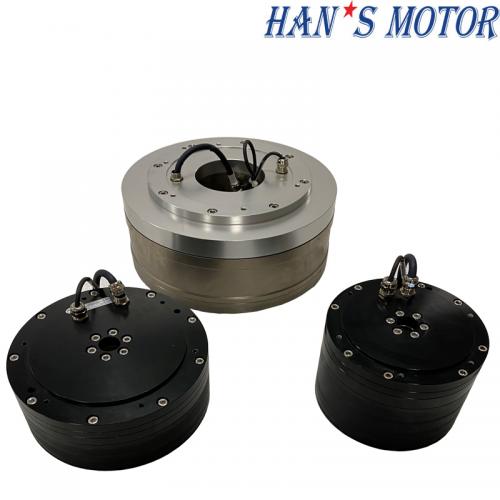

HAN'S MOTOR Direct drive rotary torque motors

Direct drive rotary torque motors

Why choose us?

1. HAN'S Motor is a global supplier in direct drive technology, ranging from linear motors, torque motors, servo drives, robots to customized motors and other industrial automation solutions.

2. Meet customer's satisfaction of high-end and cost-effective.

3. Direct-drive technology is recognized as a leading solution for the requirements of high productivity, improved accuracy and increased dynamics of modern machinery.

4. Passed ISO 9001and ISO 14001 management system certification and CE certificate.

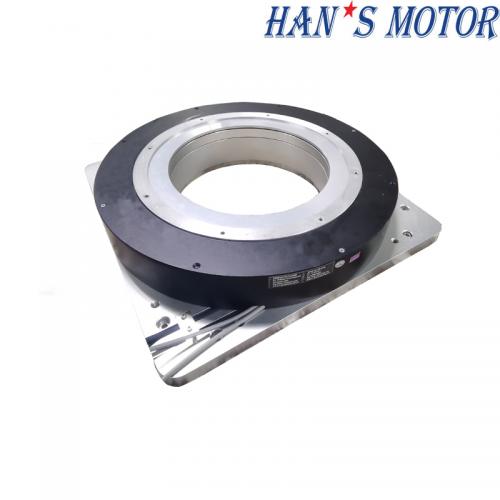

HAN'S LASER Direct drive rotary torque motors

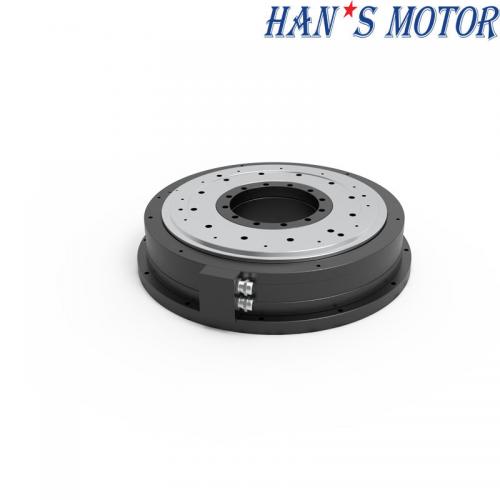

direct drive rotary motors HAN'S MOTOR

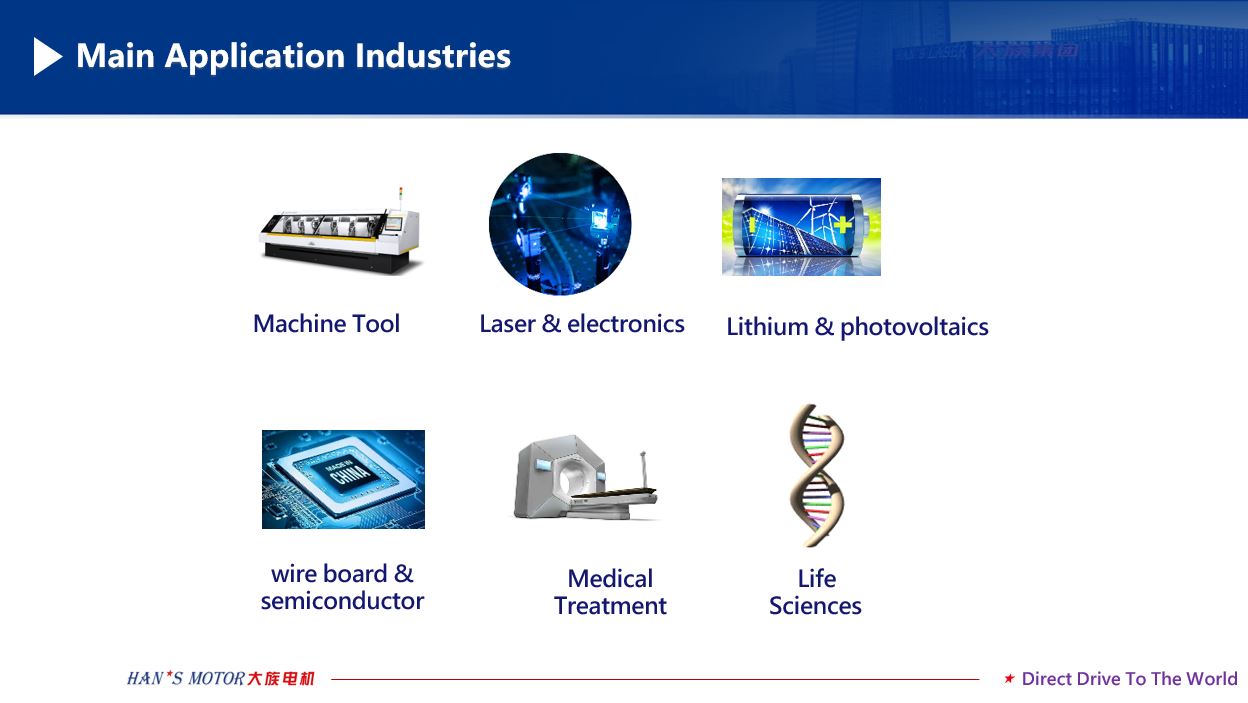

Applications:

Products are mainly used in machine tool 、Laser 、 Electron 、 Lithium electricity 、 photovoltaic 、Panel 、 semi-conductor 、 Medical treatment 、 Life sciences industries high-end equipment.

HAN'S MOTOR Direct drive rotary torque motors

Exhibitions & International market

motion control

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
