FID Series Low Noise Long Life Inner Rotor Frame Torque Motor Solutions

HAN'S Frame Inner Rotor High Torque Motor For Automatic Applications

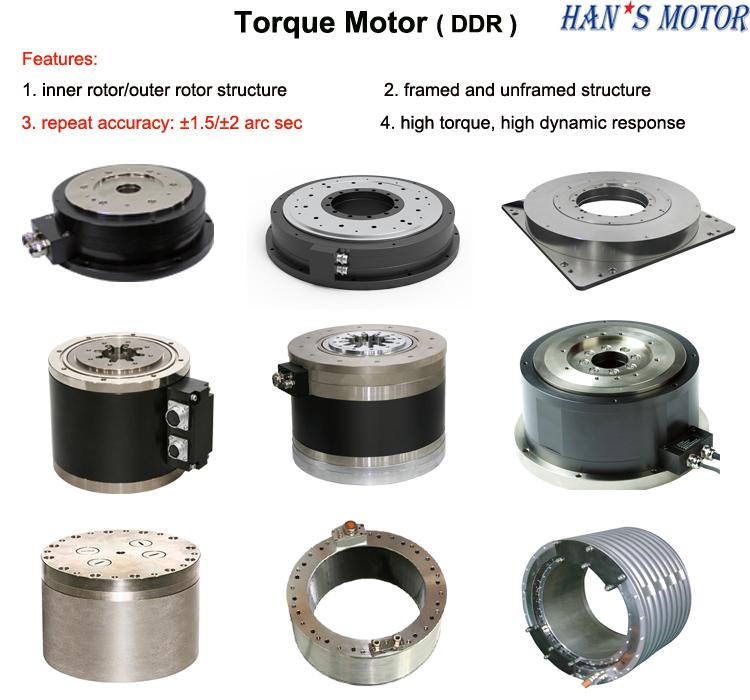

Features:

1. Design: Direct drive, high dynamic response with high level of control;
2. Size: Powerful motor in a small space/ Hollow shaft/ Power density
3. Performance: High speed/precision/efficiency
4. Durability: Reliable performance, maintenance free, encapsulated design

Advantages.: Torque motors (also known as direct drive rotary motors (DDR) )

Torque motors have benefitted greatly from the design,they can provide even greater efficiency and power, especially at low rpm.Meanwhile minimizing maintenance requirements,which are used in a wide variety of products from rotary tables to robotic arms.

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

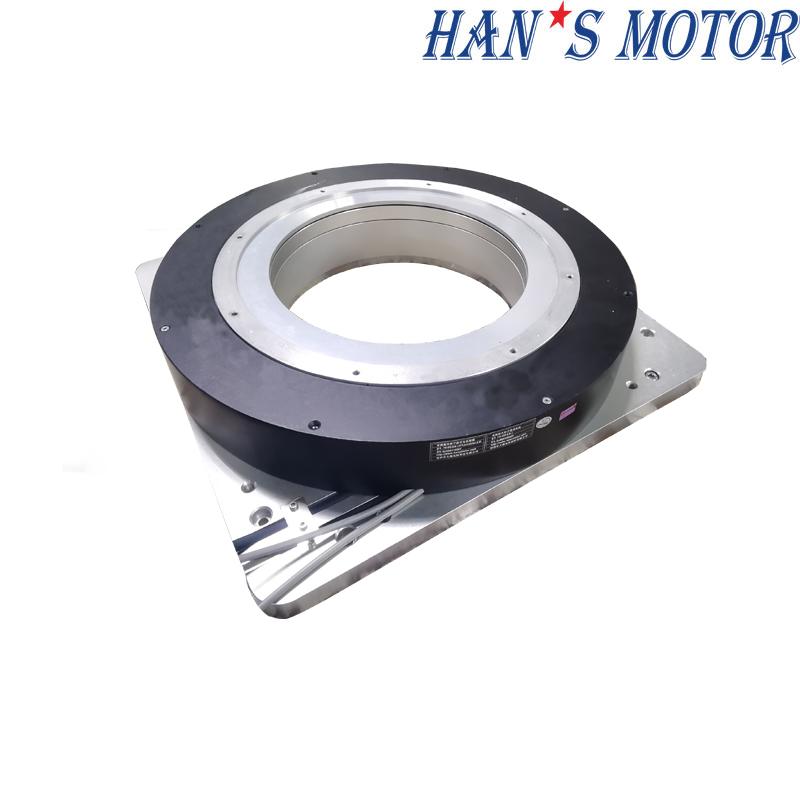

Products Name: HAN'S FID Series High Precision Frame Inner Rotor High Torque Motor For Industrial Automation

Product Specifications

Frame Rotor Torque Motor FI Series Specification
Motor Model No.： FID-xxx-x-A-1			002-S-A-1	040-P-A-1
Performance Parameters	Symbol	Unit	002-S-A-1	040-P-A-1
Working voltage	Vdc	V	48.0	200.0
Continuous torque (Tmax)	Tc	Nm	1.5	42.0
Peak torque	Tp	Nm	5.0	58.0
Vmax,Tc@Vbus=310Vdc	Nmax,Tc	Rpm	300.0	120.0
Vmax,Tp@Vbus=310Vdc	Nmax,Tp	Rpm	120.0	110.0
Vmax,0@Vbus=310Vdc	Nmax,0	Rpm	380.0	130.0
Encoder (Incremental 1Vpp Sine Wave)	line number/270°	P/rev	5870.0	47200.0
Repeat Accuracy		arc sec	±1	±1.5
Positioning Accuracy		arc sec	±30	±30
Continuous current (Tmax)	Ic	Arms	1.5	2.5
Peak Current (1s)	Ip	Arms	4.7	3.5
Torque Constant (25℃,±5%）	Kt	Nm/Arms	1.0	16.8
Electromotive constant (25℃,±5%）	Ke	Vrms/rad/s	0.3	5.6
Resistance (within 25℃±5℃）	R	Ω(p-p)	4.6	5.0
Inductance (within 25℃±5℃）	L	mH(p-p)	3.5	22.0
Pole pairs	p		8	33
Max.coil temperature	Tmax	℃	120	120
Motor Mass		KG	3.5	23.0
Mover Mass	Mr	KG	0.70	6.70
Rotor Moment of Inertia	Jm	Kg*m2	0.0011	0.1430
Axial Runout		mm	0.005	0.010
Radial Runout		mm	0.005	0.010
Minimum bending radius of cable	R	mm	37.50	37.50
Working voltage	Vdc	V	48.0	200.0
Continuous torque (Tmax)	Tc	Nm	1.5	42.0

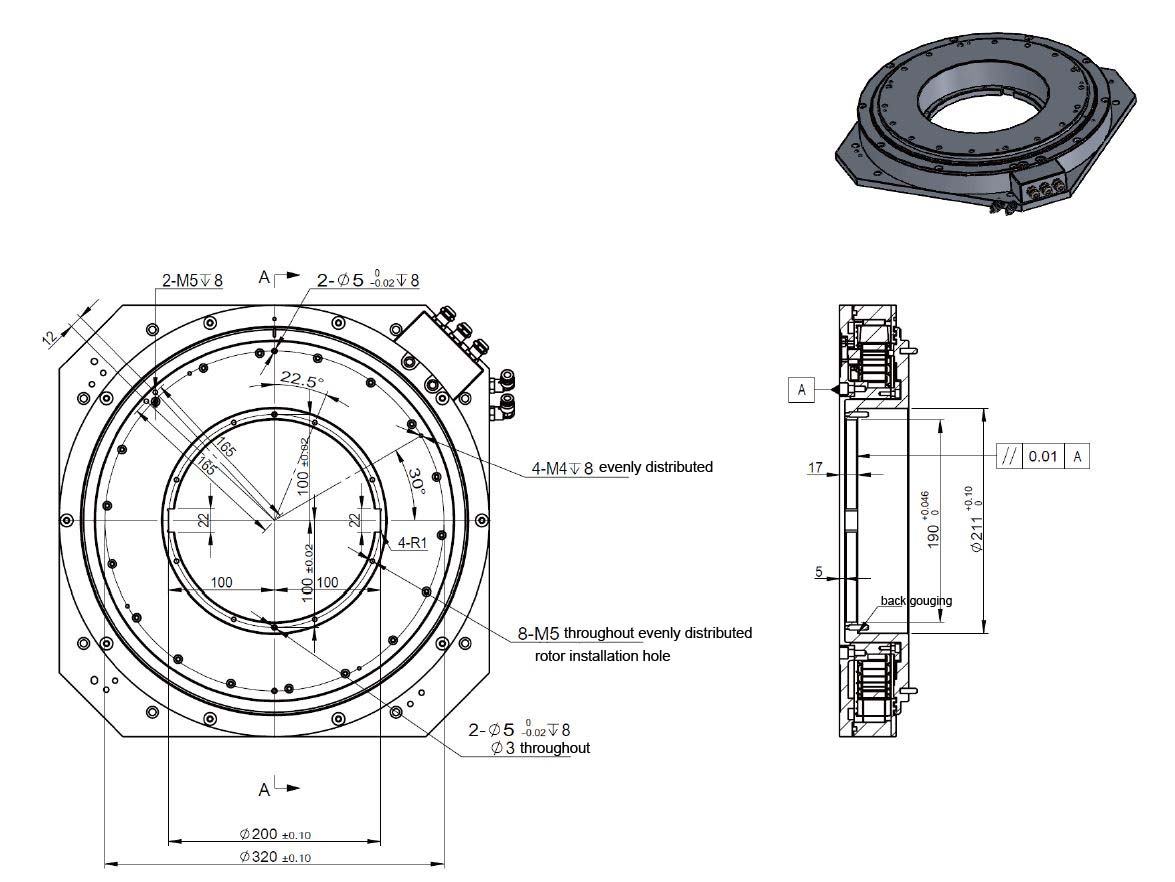

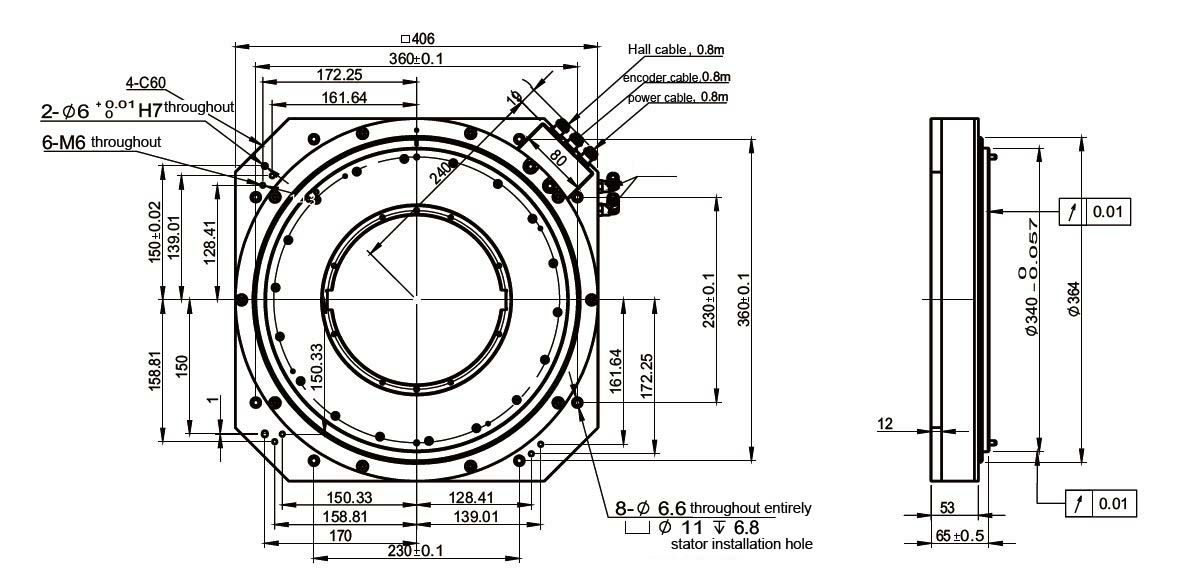

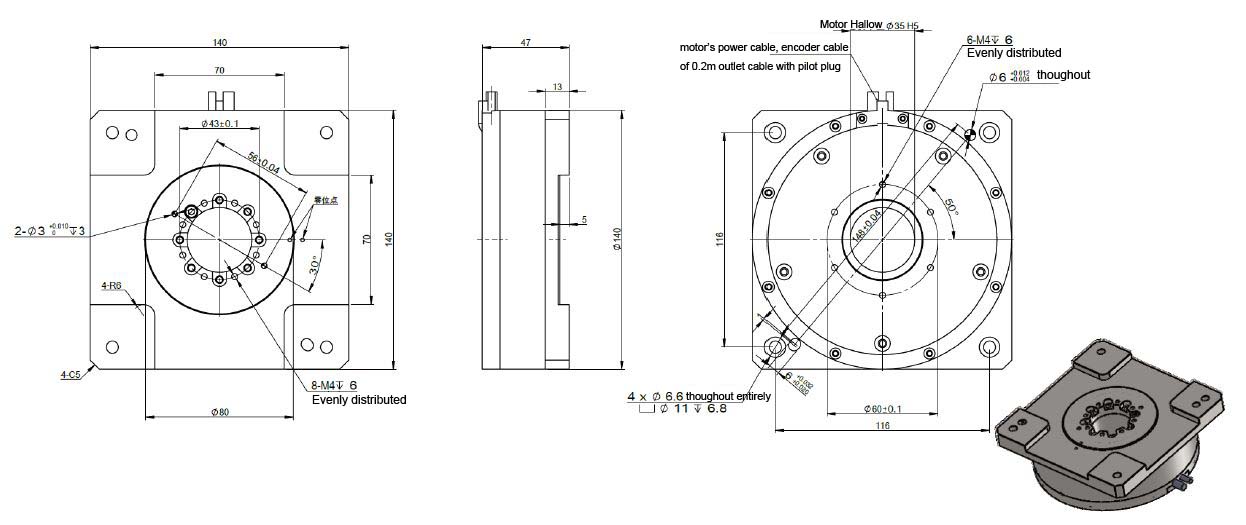

Dimension

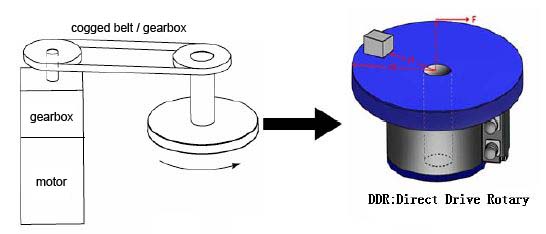

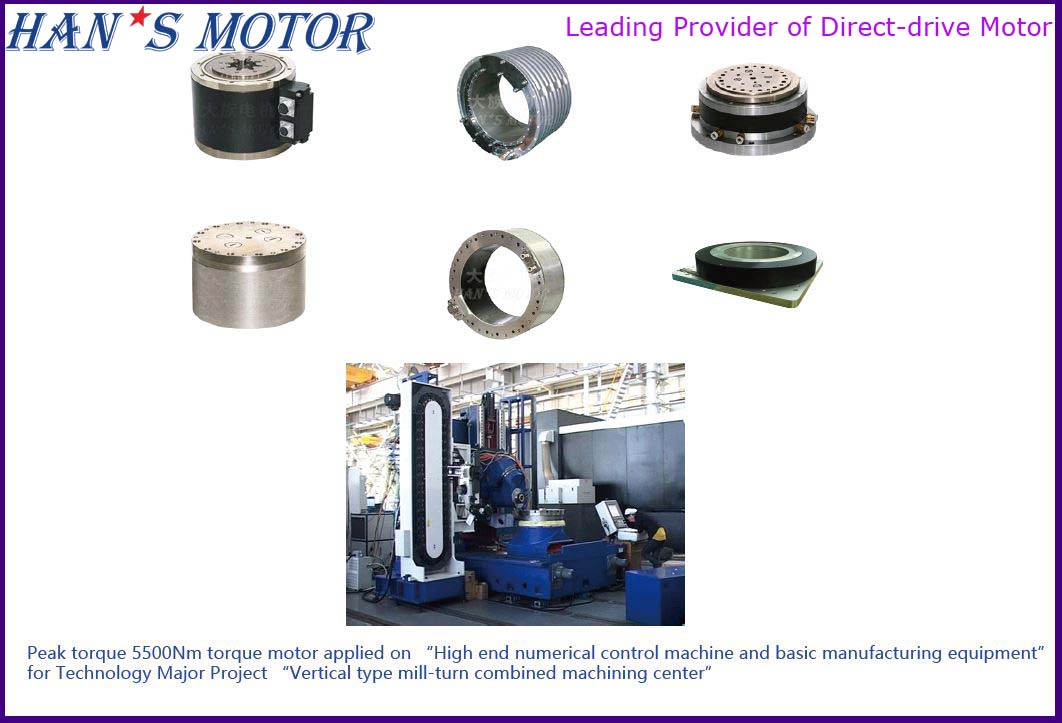

Direct Drive Torque Motors DDR

Direct Drive Torque Motors DDR

Characteristics:

1. Supply high torque at low speeds, increased rigidity and greater accuracy

2. Standard Inner rotor/outer rotor structure

3. HAN'S MOTOR direct drive torque motors designed with the aim of ensuring excellent performance with effective-cost can be used in many applications--CNC high speed machining center, Automatic CNC cutting machine, Precision CNC grinder, Heavy gantry machining center, Precision milling machine, Precision CNC lathe machine etc.

4. Using high energy permanent magnets to generate high torque for functional safety,smooth motion even at low speeds with stable performance (low velocity ripple)

5. Easy to install with precise installation dimensions,extremely easy to service and low cost

6. high level of availability and no elasticity in the power transmission system

Direct-Drive Torque Motors HAN'S MOTOR

Why choose us?

Q1: Are you factory or trade company?
A1: Han's Motor focus on linear motors, torque motors, motor modules, motion stages, AC servo systems, variable frequency drives,and so on.

Which has specialized in direct drive system in the domestic research, development, promotion, application for 16 years.
Q2: Guarantee period of HAN'S MOTOR products?
A2: One year warranty and prompt technical support.
Q3: Can you offer customizable service?
A3: We can make bespoke models according to your requirement and design.

Q4: What's speciality of HAN'S MOTOR DDR Torque Motors?

A4: High overload capability/peak torque and available with hollow shaft.

HAN'S LASER MOTOR

Production Line & Quality Test.:

HAN'S MOTOR DDR torque motors

Applications:

Compact, precise, smooth motion and fully-integrated motor with improved dynamic performance .

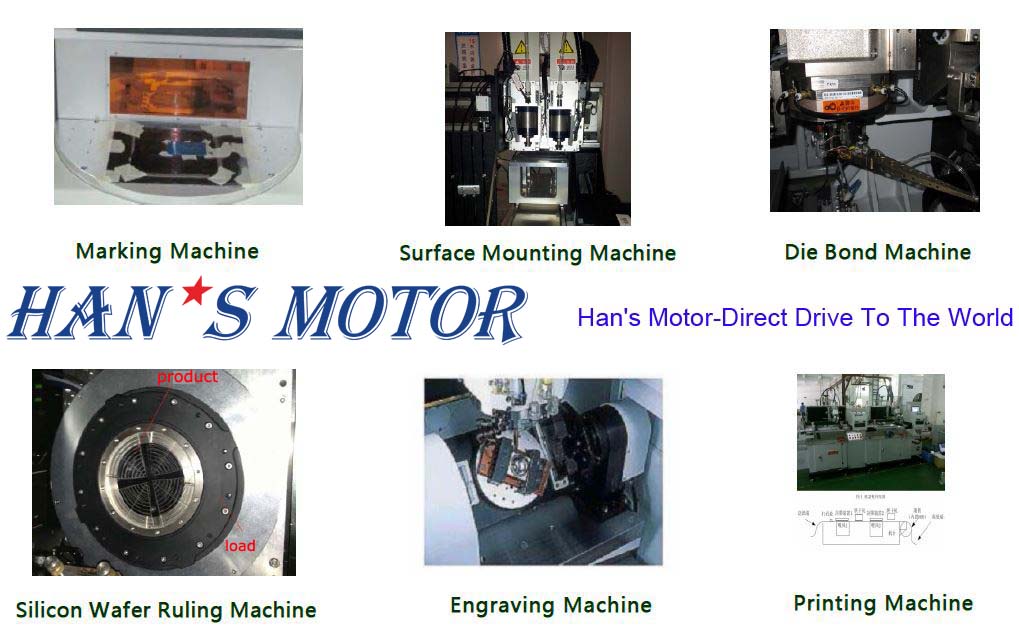

Widely used for high precision applications and industrial automations.:

DDR torque motors applications

Direct-Drive Torque Motors

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order

Related Tags :

Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Submit
