Frame Inner Rotor High Precision Torque Motor direct drive rotation（DDR）
Product description:
Torque motors supply high torque at low speeds, increased rigidity and greater accuracy.
Provided in a range of frameless kits and standard constructions, our direct drive torque motors can be used to replace traditional gearbox-based systems in many applications.
It is designed with the aim of ensuring excellent performance with high quality, through the use of modern digital control technology our devices are highly productive and flexible, providing effective automated solutions across many of the major industrial markets.
Features:
Size.: Powerful motor in a small space/ Hollow shaft/ Power
density,Low mass.
Performance.: High rigidity,high precision,high speed,high acceleration and small noise
Durability.: Smooth motion even at low speeds and excellent efficiency
Brand:
HAN'S MOTOROrder(MOQ):

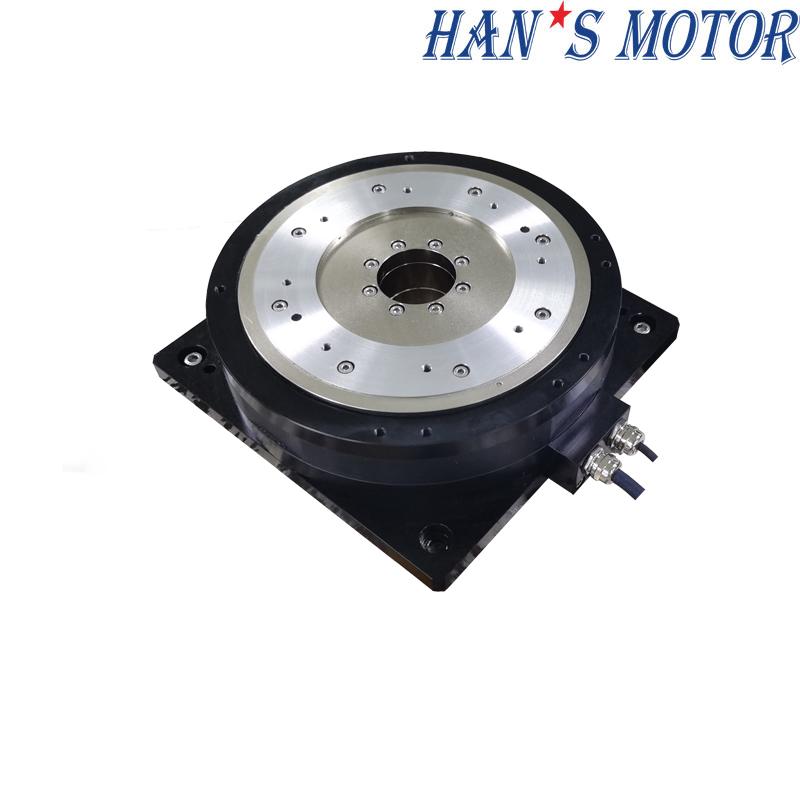

1Products Name: High Speed Frame Inner Rotor Torque Motor FID-040-S-A-2
Product Specifications
|
Rated Performance |
|
|
FID-040-S-A-2 |
|
Motor Model |
Symbol |
Unit |
|
|
Max.working voltage |
Vdc |
V |
200 |
|
Continuous current (under temperature Tmax.) |
Ic |
Arms |
2.5 |
|
Peak current (under temperature Tmax.) |
Ic |
Arms |
3.5 |
|
Continuous torque (under temperature Tmax.) |
Tc |
Nm |
42 |
|
Peak torque (under temperature Tmax.) |
Tc |
Nm |
58 |
|
Max.revolution speed (Tc=42Nm) |
Nmax |
Rpm |
110 |
|
Max.revolution speed (Tc=58Nm) |
Nmax |
Rpm |
100 |
|
Encoder (ABS BISS protocol) |
|
Position number /revolution |
26bit |
|
Repeatability accuracy |
|
arc sec |
±1.5 |
|
Gas-electrical specification |
|
|
|
|
Torque Constant (under 25℃,±5%） |
Tf |
N/Arms |
16.8 |
|
Potential constant (under 25℃,±5%) |
Te |
Vrms/rad/s |
5.6 |
|
Restistance (under 25℃,±5%) |
R |
Ω(p-p) |
5 |
|
Inductance (under 25℃,±20%） |
L |
mH |
22 |
|
Pole-pairs number |
p |
|
33 |
|
Allowable temperature of high coil |
Tmax |
℃ |
120 |
|
Mechanical specification |
|
|
|
|
Motor weight |
|
KG |
27 |
|
Rotor weight |
Mc |
KG |
7.5 |
|
Rotor Moment of Inertia |
Jm |
Kg*m2 |
0.158 |
|
Axial Runout |
|
mm |
0.01 |
|
Radial Runout |
|
mm |
0.01 |

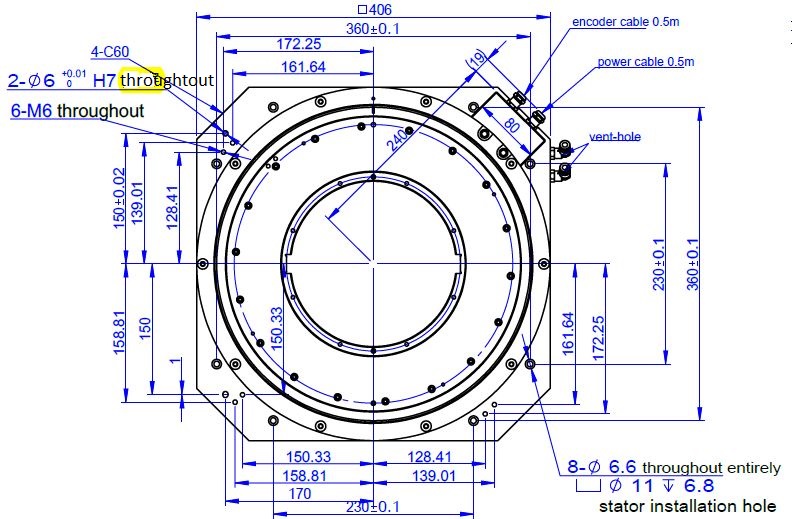

Dimension
Characteristics:
1. The load is directly coupled to the motor without mechanical transmission elements such as gearboxes, rack and belt. In this system, the motor directly drives the load.
2. Have many superior performance features including zero backlash, high accuracy, fast response time, high vacuum compatibility, and are available in a wide range of sizes.
3. Hollow shaft design, advanced control technology for precise control of angular or linear position, velocity, and acceleration.
4. Energy efficiency make them suitable for a number of applications, such as semiconductor, medical, machine tool, printing, rotary tables, factory automation, and robotics.

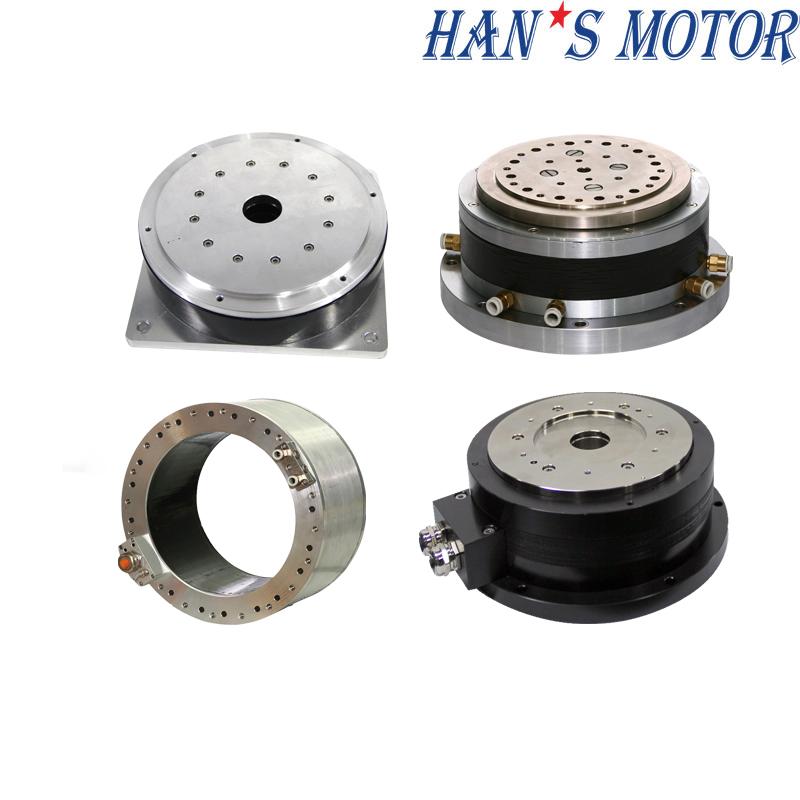

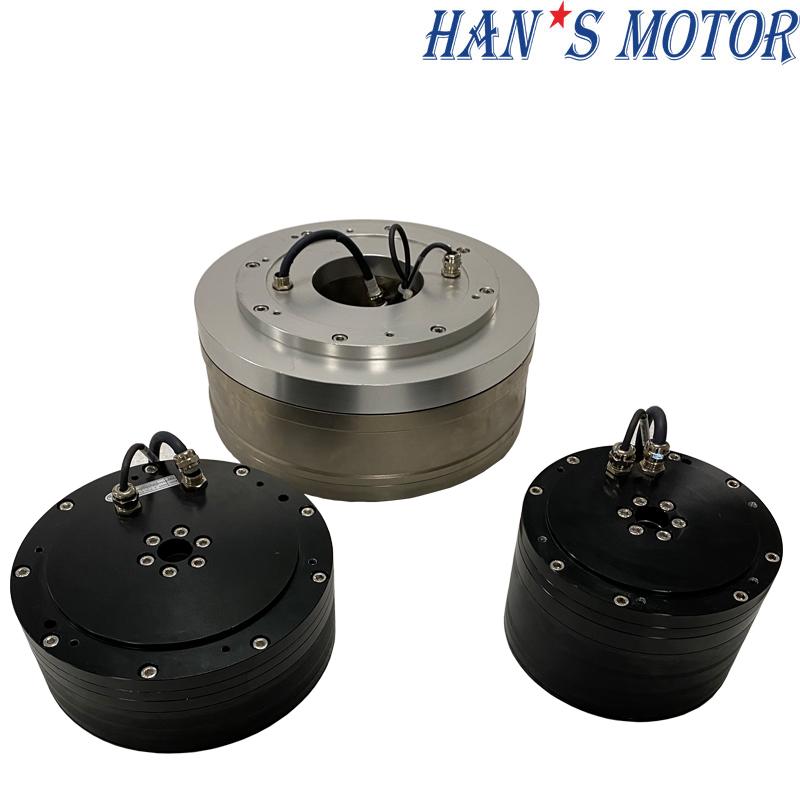

HAN'S MOTOR DDR Torque Motor Products Series.:
Why choose us?
Q1: Are you factory or trade company?
A1: We are factory. Established in 2005, it
is a subsidiaries of Han’s Laser
(Stock Code: 002008), which is one of the global leaders which manufacture
professional laser equipment.
Q2: Guarantee time of HAN’S Motor?
A2: One particular year warranty for products and
technical support in accordance to your needs.
Q3: What’s your products range?
A3: Specialized in direct drive system in the
domestic R&D, promotion, application.Including linear motor、Torque motor 、Motion stage 、AC servo system 、 Variable-Frequency Drive etc. And linear motor
market share reached leading level in China.
Q4: What's your quality standard?
Passed ISO 9001and ISO 14001 management system certification and CE certificate.

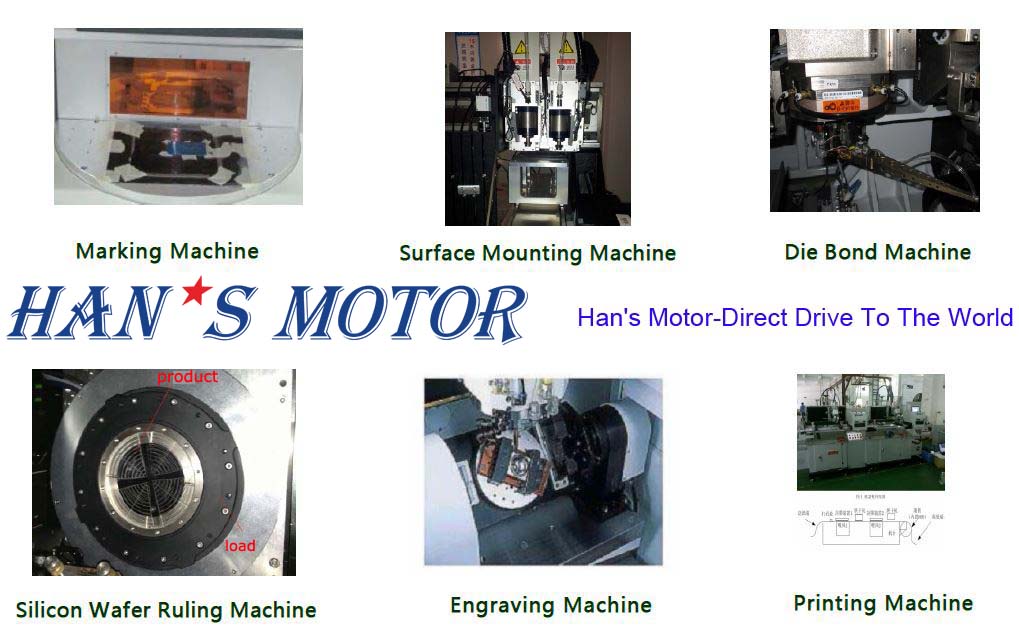

Applications:
Torque motors are used in a wide variety of products, from rotary tables to robotic arms.
CNC high speed machining center, automatic CNC cutting machine, precision CNC grinder,
precision milling machine, marking machine, die bonding machine, engraving machine and printing machine etc.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
