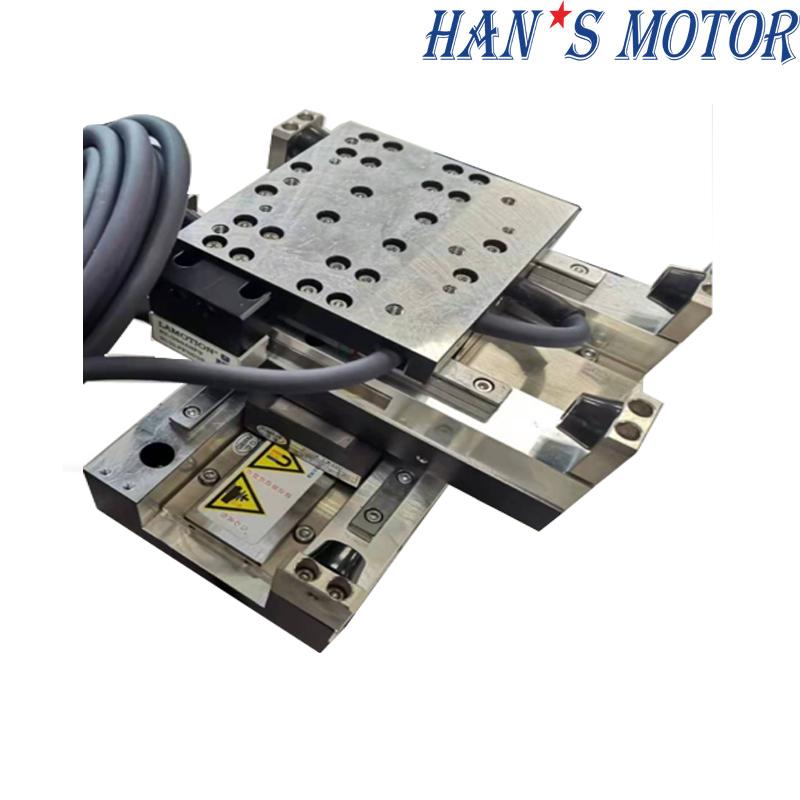

Direct Drive Linear Motor Precision Motion Platform LMB170
Features:
Durability and reliability are the main concerns when operating heavy-duty construction machinery.
Efficient, stable and reliable performance.
Low noise and smooth work.
High-quality and fast speed, easy installation.
Advantages:
1. Comprehensive modern high-tech enterprise with the integration of R&D, manufacture, sales and service.
2. Competitive price of linear motion system stage.
3. Linear motor stage are suitable for demanding applications in high performance,high speed, high accuracy and high reliability.
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: High Dynamics Precise
Positioning Accuracy Linear Motor Stages LMB170
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
120 |
|
Peak Force |
N |
900 |
|
Max. Load |
kg |
90 |
|
Effective Stroke |
mm |
100-2500 |
|
Resolution |
μm |
0.5 |
|
Max.Speed（1） |
mm/s |
2000 |
|
Repeat accuracy |
μm |
±1 |
|
Weight |
kg |
4.5 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
Performance
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
8 |
8 |
10 |
10 |
12 |
14 |
14 |
16 |
18 |
18 |
20 |
|
N |
2 |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
7 |
8 |
8 |
9 |
|
Stage Total Length (mm) |
470 |
570 |
670 |
770 |
870 |
970 |
1070 |
1170 |
1270 |
1370 |
1470 |
1570 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer

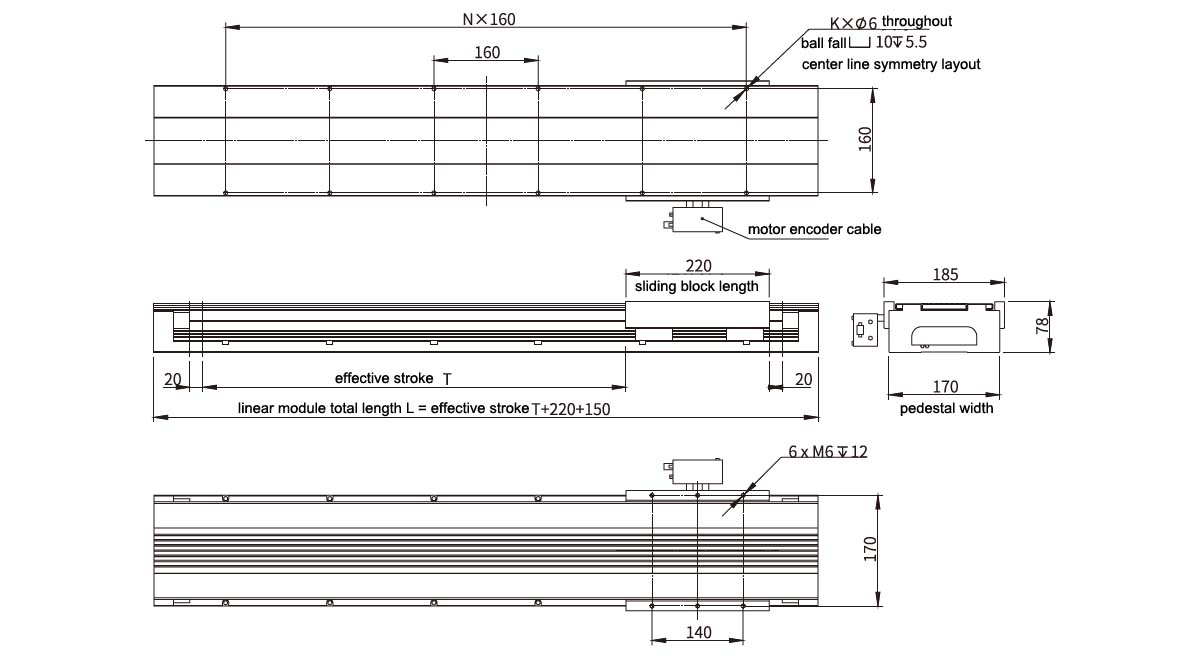

Dimension
Characteristics:
1. Speed: Direct drive technology can help maximize the productivity of your machine and meet application requirements.
2. Precision, powerful, excellent performance and reliable quality, the products involved in a wide range of applications, such as packaging, printing, textile, semiconductor production, and assembly industries.
3. Improve Machine Performance positioning accuracy, speed regulation, and reduced energy usage.
Why choose us?
Q1: What’s property of your
company?
A: SHENZHEN HAN’S MOTOR S&T
CO.,LTD. is manufacturer with own R&D, production and sales, a subsidiary
of Han’s Laser (Stock Code: 002008), it becomes the world's famous laser
equipment manufacturer and the flagship of Chinese national laser industry.
Q2: How long is your delivery
time?
A: 20 working days for general
production, shipment would be arranged immediately once payment is received.
Q3: Do you have products in stock?
A2: Some products are available in stock and can be delivered within 10 days.
Q4: which payment method is acceptable?
A4: T/T
Q5: What's your warranty terms?
A: 12
months on the parts of product, please contact us for more
details.
E-mail.: zhangk141204@hanslaser.com
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
Laser cutting machine, laser engraving machine, glue dispenser, solder machine, semiconductor machinery, sliding platform, measuring machine, SMT equipment, printing machinery, paper machinery, textile machinery,
food machinery, medical equipment, high speed-transportation equipment, etc.

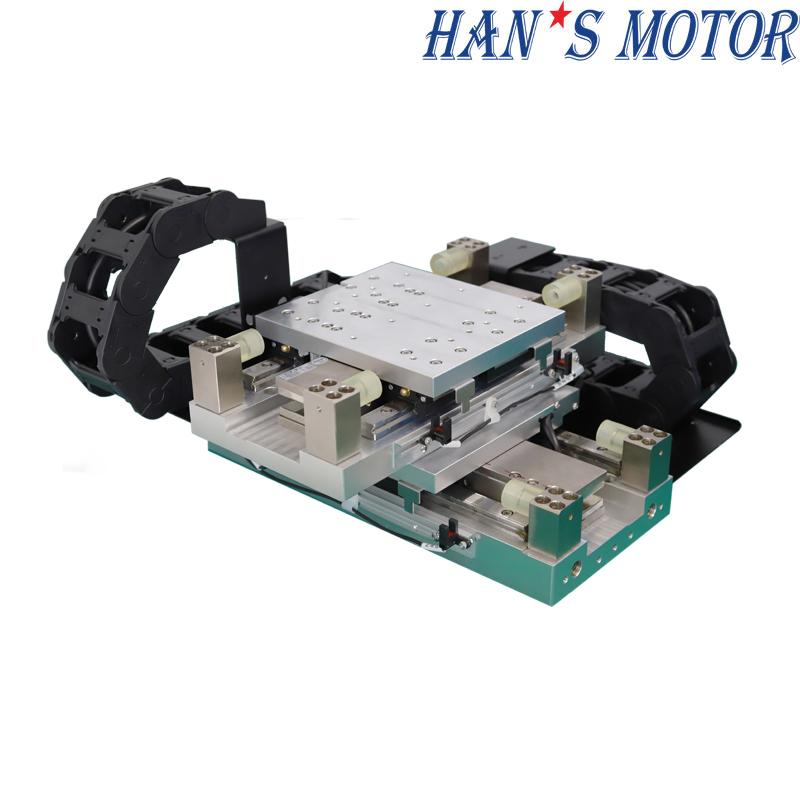

HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
