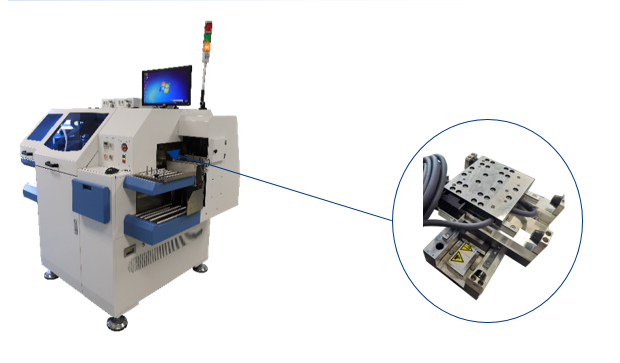

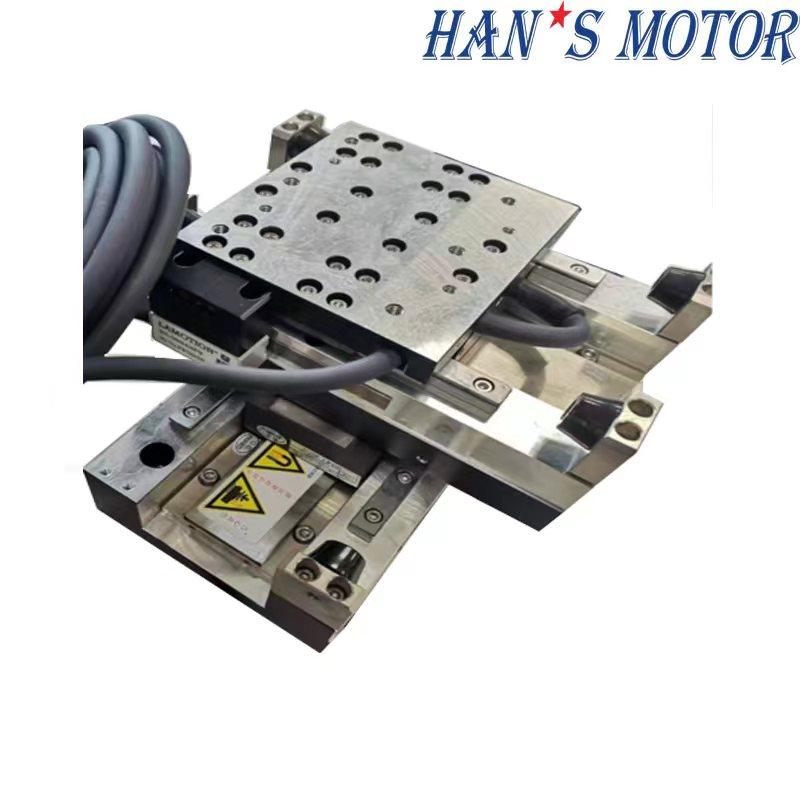

XY micro linear positioning platform miniature square linear motor stage for semiconductor equipment

Features： 1. Modular design 2. High precision 3. High speed 4. Cross stage can be built arbitrarily

Features: 1. Customized as required 2. High precision, high thrust 3. High speed, high acceleration 4. XY and multi-axis stages can be assembled arbitrarily

HAN'S MOTOR High Load Linear Module Motorized Linear Stage LMB130 series Features: 1. A linear motor actuator that is developed to respond to the long-stroke, high-speed, and high-precision requirements as the manufacture equipment is made larger and the speed of the transfer equipment is made faster. 2. It can be used in a wide variety of applications, such as semiconductor equipment, 3D printer, laser machines,CNC machines, glue dispenser, soldering machine, screw machine, laser cutting & engraving machines,CNC machining center, material handling equipment etc. Advantages: 1. High rigidity and heavy load, energy consumption 2. Smooth running, low noise and high speed 3. High accurancy and easy setting up 4. High positioning accuracy and repeat positioning accuracy

Features： 1. Short travel 2. Fast speed 3. high precision 4. Quickly assemble to XY cross stage

HAN'S MOTOR High Precision Linear Module Motorized Linear Stage LMB100 series Features: 1. Linear Stages consists of a platform and a base joined by a linear bearing,which restricts the platform to a single axis; 2. Positioning of the platform is controlled by a linear actuator equipped with a lead screw or a toothed belt; 3. Adopt an open structure, which is convenient for disassembly and maintenance; 4. Built-in grating or magnetic grating feedback system, the resolution is 0.1um, 0.5um, 1um, 5um for optional; Repeat accuracy up to ±1um Advantages.: 1. Strong low-speed stability and setting of positioning 2. Built-in aluminum mounting plate for excellent heat dissipation

Features： 1. XYθ aixs stage 2. High precision 3. High speed 4. Long service life

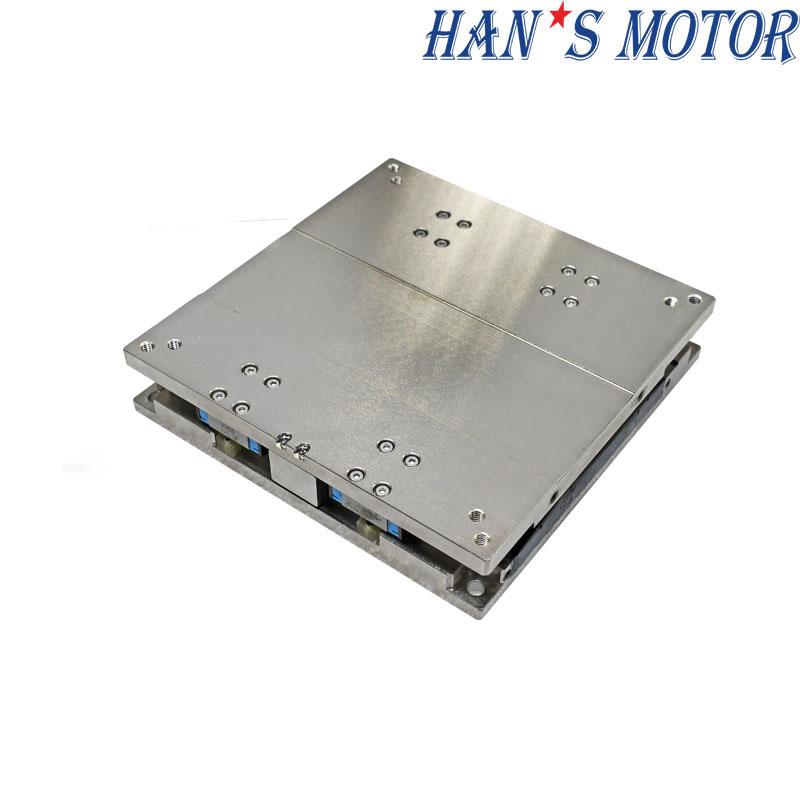

Features： 1. 120x120mm size 2. High speed 3. High precision 4. High frequency response

HAN'S MOTOR Long Travel Miniature Precision Direct Drive Motor Linear Stage LMB170 series Features: Flat-type motion stage ; Open-type construction, easy for disassembly and maintenance ; Built-in time grating or magnetic grating with optional resolution rate 0.1um，0.5um，1um，5um. ； Repeatability accuracy ±1um ； Compact size and suit for light loading and high precision applications ; Cross platform can be constructed in X/Y . Advantages: 1) High load slider in fast and smooth motion. 2) Strict production standards ISO9001 for accurate and precise positioning. 3) Special design of bottom and side sliding nuts for simple disassembly. 4) Low energy-consumption and environmental conservation. widely used in machinery manufacturing, electronics, semiconductors, optoelectronics, medical treatment, factory automation and other fields.
