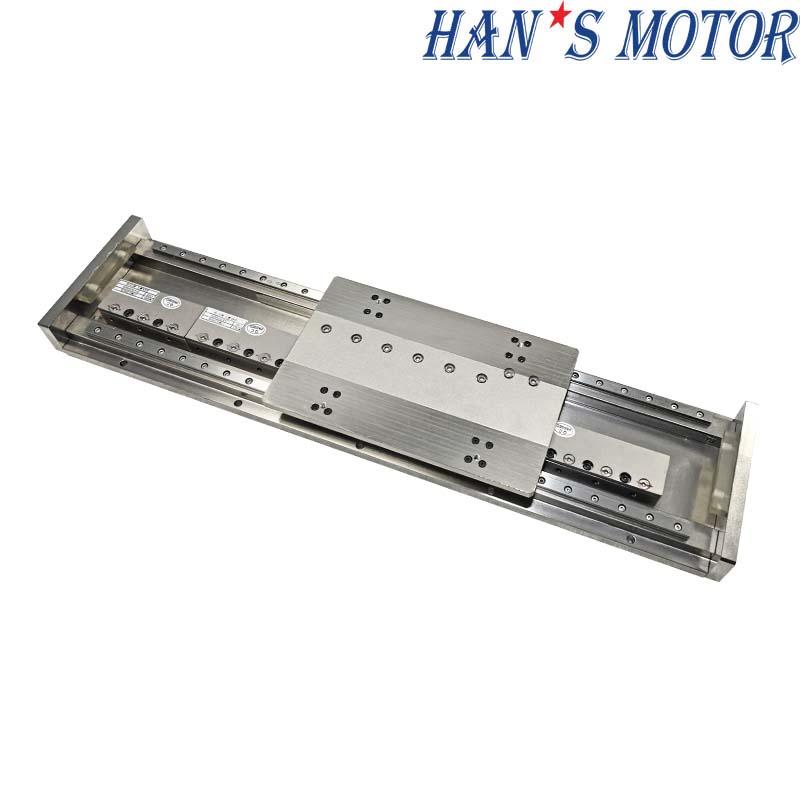

HAN'S MOTOR High Precision Linear Module Motorized Linear Stage LMB100 series
Features:
1. Linear Stages consists of a platform and a base joined by a linear bearing,which restricts the platform to a single axis;
2. Positioning of the platform is controlled by a linear actuator equipped with a lead screw or a toothed belt;
3. Adopt an open structure, which is convenient for disassembly and maintenance;
4. Built-in grating or magnetic grating feedback system, the resolution is 0.1um, 0.5um, 1um, 5um for optional;
Repeat accuracy up to ±1um
Advantages.:
1. Strong low-speed stability and setting of positioning
2. Built-in aluminum mounting plate for excellent heat dissipation
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: HAN'S MOTOR LMB100 series Motorized Linear Slider Stage
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
15 |
|
Peak Force |
N |
150 |
|
Max. Load |
kg |
5 |
|
Effective Stroke |
mm |
200 |
|
Resolution |
μm |
0.1 |
|
Max.Speed |
mm/s |
700 |
|
Repeat accuracy |
μm |
±0.6 |
|
Weight |
kg |
3.5 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
Stage Performance Paramater
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
10 |
14 |
14 |
18 |
18 |
22 |
26 |
26 |
30 |
34 |
34 |
|
N |
1 |
2 |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
7 |
8 |
8 |
|
Stage Total Length (mm) |
320 |
420 |
520 |
620 |
720 |
820 |
920 |
1020 |
1120 |
1220 |
1320 |
1420 |

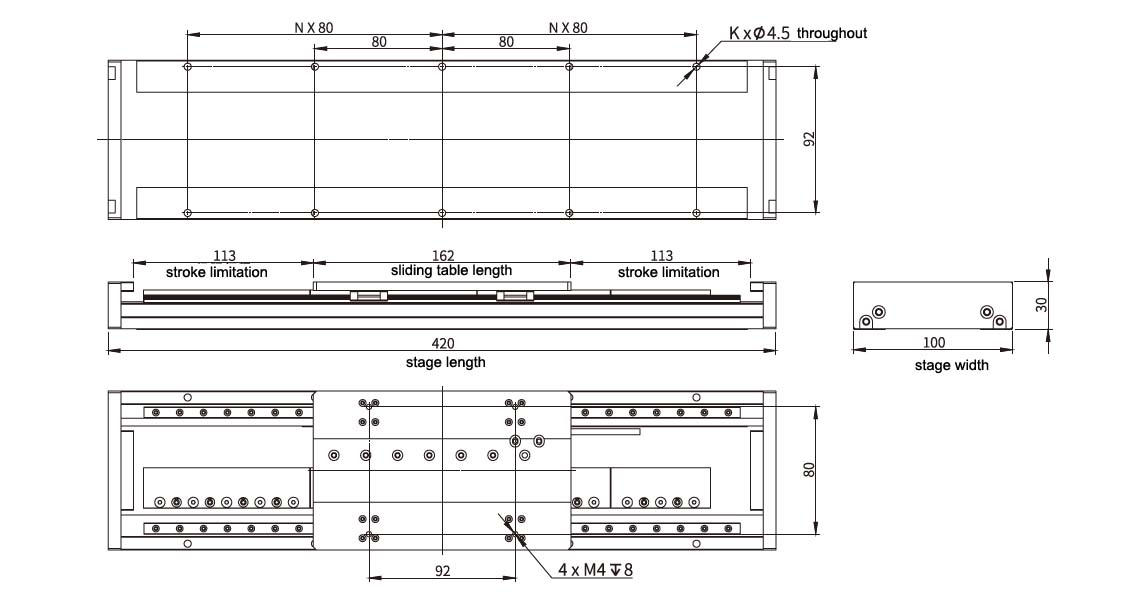

Dimension
Characteristics:
Repeat accuracy up to ±1um;
Small size and simple structure, which is suitable for light load and high precision occasions;
Quickly assemble to XY cross stages;
High precision motion stage, widely used for high precision accuracy movements, which includes linear motion, vertical motion axes, pitch rotation and rotary motion etc.
