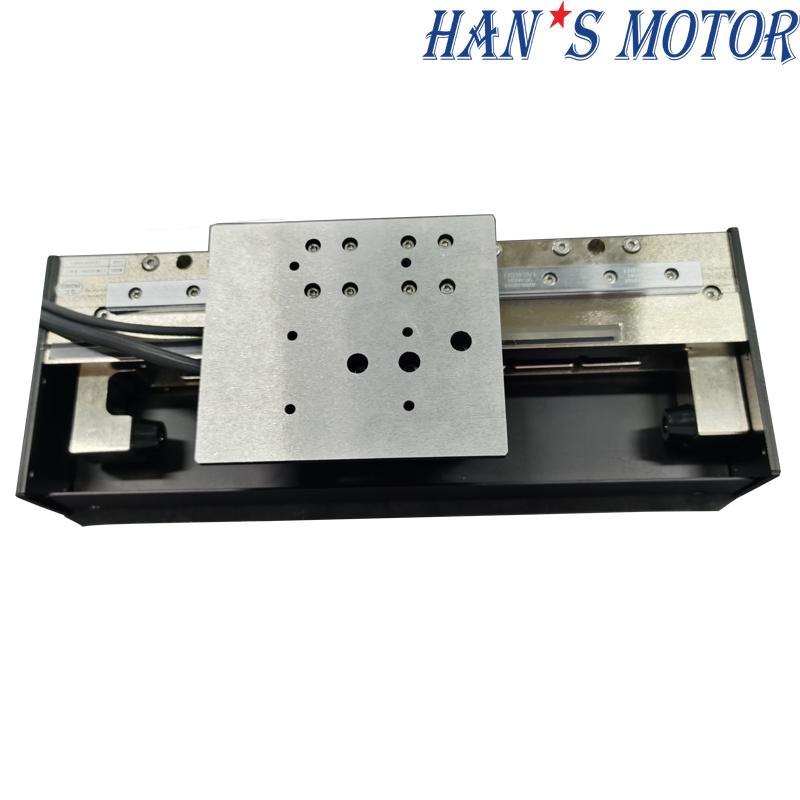

HAN'S MOTOR High Load Linear Module Motorized Linear Stage LMB130 series
Features:
1. A linear motor actuator that is developed to respond to the long-stroke, high-speed, and high-precision requirements as the manufacture equipment is made larger and the speed of the transfer equipment is made faster.2. It can be used in a wide variety of applications, such as semiconductor equipment, 3D printer, laser machines,CNC machines, glue dispenser, soldering machine, screw machine, laser cutting & engraving machines,CNC machining center, material handling equipment etc.
Advantages:
1. High rigidity and heavy load, energy consumption
2. Smooth running, low noise and high speed
3. High accurancy and easy setting up
4. High positioning accuracy and repeat positioning accuracy
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: HAN'S MOTOR CNC Linear Guide Stage Motion Slide Table Linear Stage LMB130 series
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
15 |
|
Peak Force |
N |
150 |
|
Max. Load |
kg |
5 |
|
Effective Stroke |
mm |
100-2200 |
|
Resolution |
μm |
0.5 |
|
Max.Speed (1) |
mm/s |
1500 |
|
Repeat accuracy |
μm |
±1 |
|
Weight |
kg |
1.8 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
Stage Performance Paramater
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
8 |
10 |
12 |
14 |
14 |
16 |
26 |
18 |
20 |
24 |
24 |
|
N |
2 |
3 |
5 |
5 |
6 |
6 |
7 |
5 |
8 |
9 |
11 |
11 |
|
Stage Total Length (mm) |
380 |
480 |
580 |
680 |
780 |
880 |
980 |
1080 |
1180 |
1280 |
1380 |
1480 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer

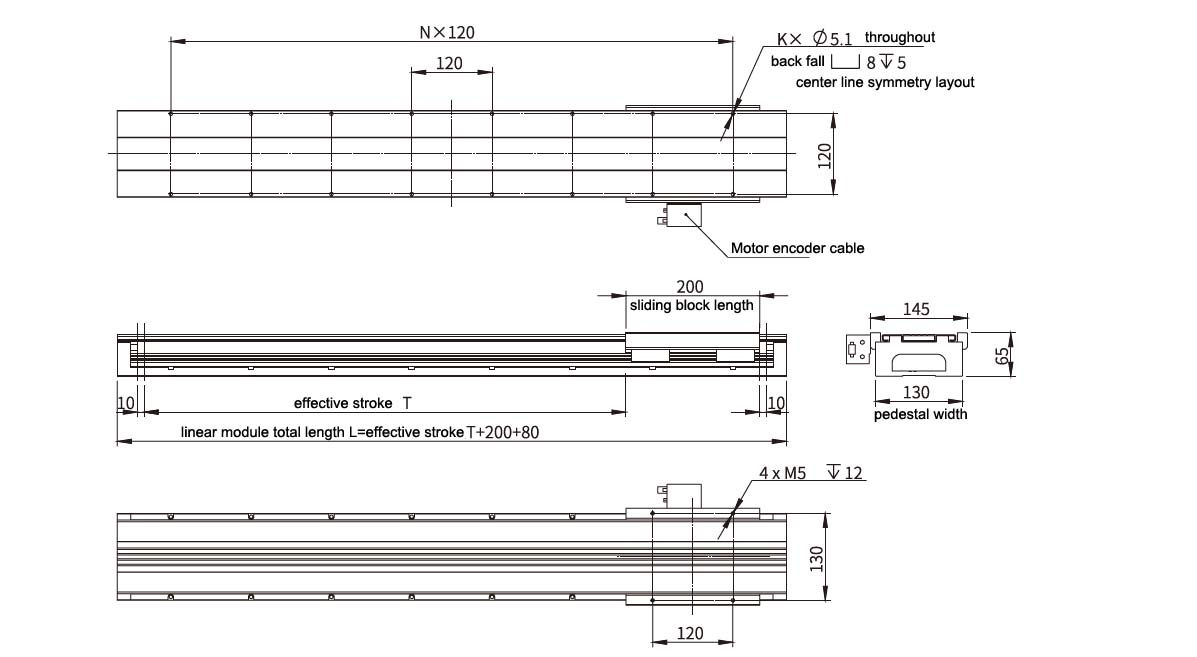

Dimension
Characteristics:
1. Aluminum extrusion molding, integrated pedestal
2. High positioning accuracy with long service life, repeated positioning accuracy ±1μm
3. High motion speed, lightweight compact design
4. Easy to install and disassemble
5. Smooth ball screw and good lubrication design
