Features：
1. Modular design
2. High precision
3. High speed
4. Cross stage can be built arbitrarily
Brand:
HAN'S MOTOROrder(MOQ):
1Product name：High-speed and high-precision Micro Linear Motion System Stages
Characteristic:
1. Adopt open structure, it is convenient for disassembly and maintenance;
2. Built-in grating or magnetic grating feedback system, 0.1μm, 0.5μm, 1μm, 5μm resolutions for optional;
3. Adopt moving magnet flat linear motor;
4. Repeat accuracy up to ±1um;
5. Small size and simple structure, it is suitable for light load and high precision occasions;
6. Quickly assemble to XY cross stages;

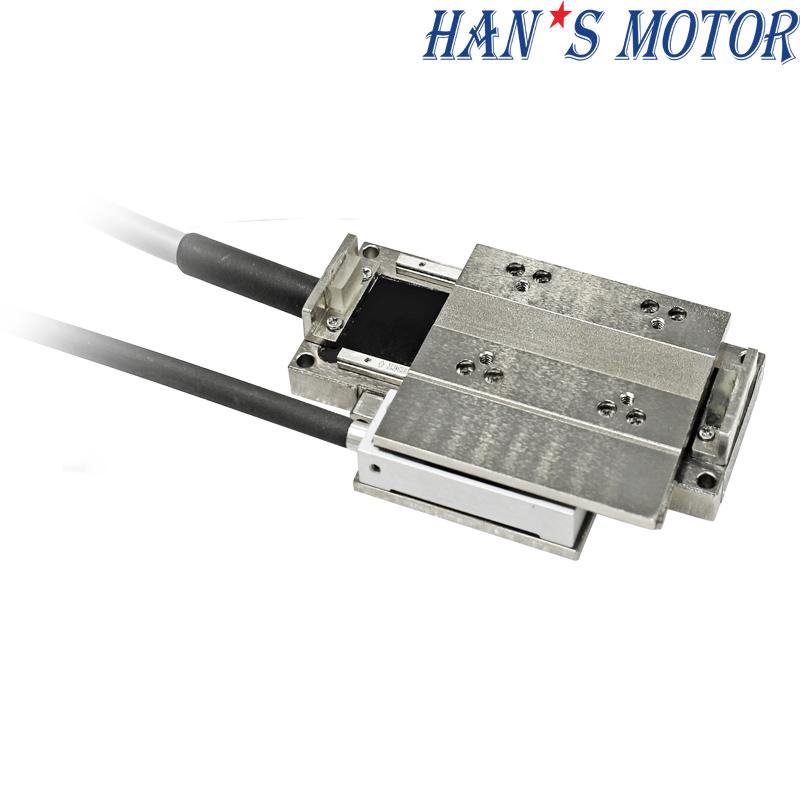

Product introduce：
As modern manufacturing processes move down
to the micro scale, smaller and more efficient worktables are required. HAN'S
LAM38 miniature linear motor stage is the industry's smallest linear motor
driven motion system with excellent performance for fast linear movement and
precise positioning of lighter loads in a small operating area. The LAM38 can
meet the requirements of continuous operation 24 hours a day, 7 days a week,
and achieve a breakthrough in "high throughput automation" in the
micro-application field.
Model：LMA38-10-()-A
G01: grating feedback, 0.1μm resolution
G05: grating feedback, 0.5μm resolution
Motor and Stage Specifications
Motor specifications
Units
Value
Continuous Force (Tmax）
N
0.6
Peak Force
N
3
Motor Constant
N√W
0.5
Max.Continuous Power Dissipation
W
1.42
Continuous Current (Tmax）
Arms
0.15
Peak Current (1S)
Arms
0.8
Force Constant (25℃，±5%）
N/Arms
4
Back EMF Constant (25℃，±5%）
Vrms/m/s
1.3
Electrical Resistance(25℃，±5%）P-P
Ω
30
Inductance(25℃，±20%）P-P
μm
0.25
Max Coil Temperature
℃
120
Polar Distance (N-N) (360℃ Electrical cycle)
mm
24
Magnetic Attraction
N
11
Stage specifications
Units
Value
Max. Load
kg
1
Effective Stroke
mm
10
Resolution
μm
0.1
Max.Speed（1）
mm/s
200
Repeat accuracy
μm
±0.5
Weight
kg
0.1
0-40℃、20-80%RH

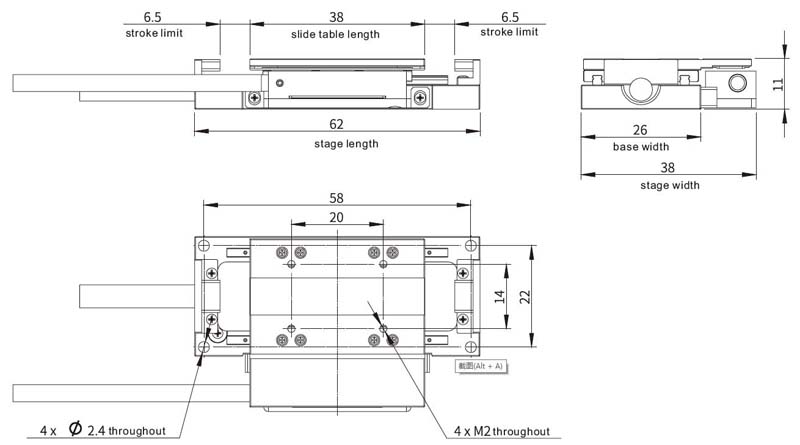

Installation dimensions
