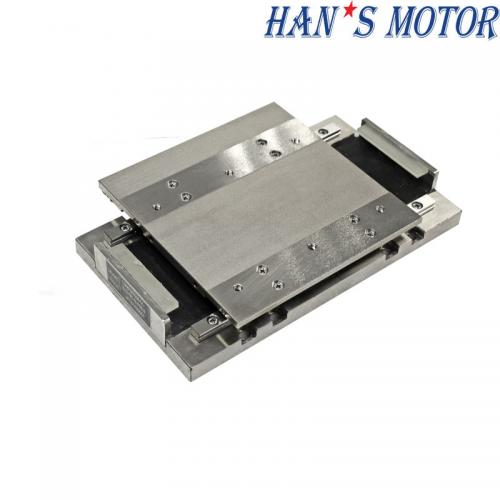

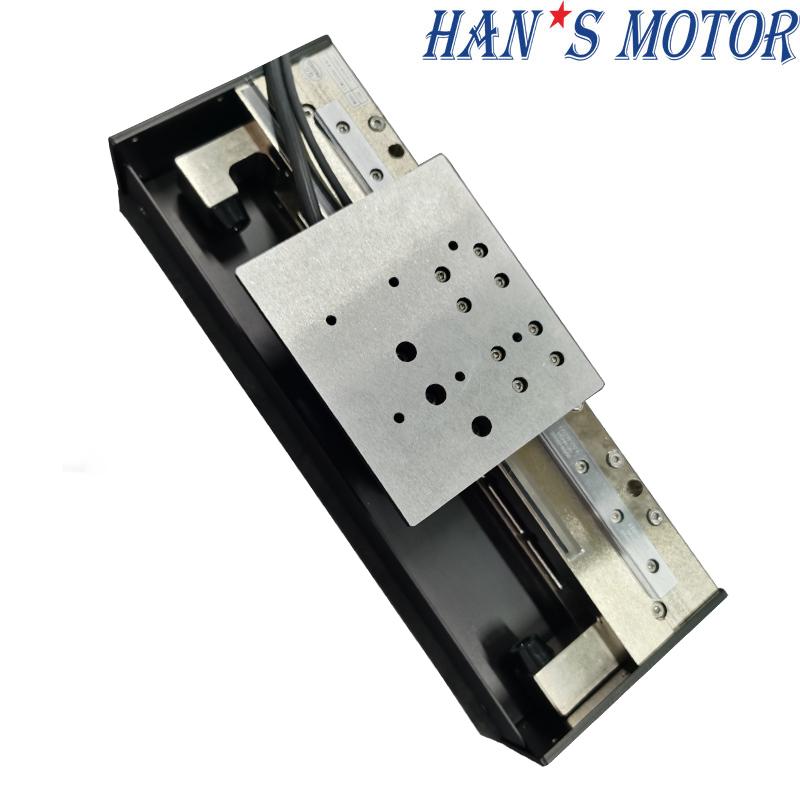

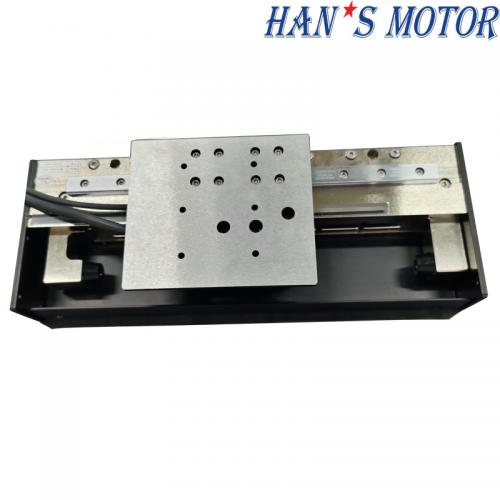

High Precision Linear Motor Miniature Motion Stage LMB100
Features:
1. Low friction, smooth, accurate motion for normal loading condition.
2. The driving power is small which reduces the energy consumption.
3. High positioning accuracy and repeat positioning accuracy.
Advantages:
High quality and fast speed
Stable and reliable low noise and smooth
Good impact toughness and stable operation
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: High Precision And Fast Speed Linear Motor Guide Stage LMB100-200-G05-A
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
15 |
|
Peak Force |
N |
150 |
|
Max. Load |
kg |
5 |
|
Effective Stroke |
mm |
200 |
|
Resolution |
μm |
0.1 |
|
Max.Speed |
mm/s |
700 |
|
Repeat accuracy |
μm |
±0.6 |
|
Weight |
kg |
3.5 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
Performance
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
10 |
14 |
14 |
18 |
18 |
22 |
26 |
26 |
30 |
34 |
34 |
|
N |
1 |
2 |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
7 |
8 |
8 |
|
Stage Total Length (mm) |
320 |
420 |
520 |
620 |
720 |
820 |
920 |
1020 |
1120 |
1220 |
1320 |
1420 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer

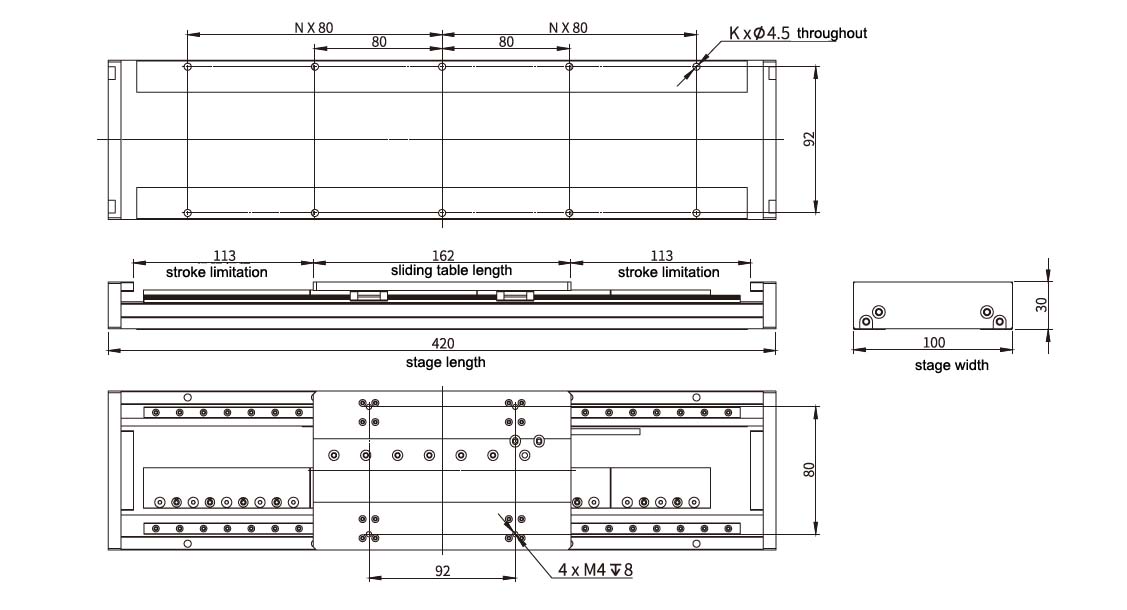

Dimension
Characteristics:
1. High precision and superior quality
2. Original export and factory
direct sales with competitive price
3.
4. Easy installation, it's flexible and convenient to use
Why choose us?
Q1: When we can receive goods after placed
orders?
A: Leading time 10 days with stock, shipping time 7-10 days by air.
Q2: What's
your payment terms?
A: Wire transfer and Western Union are available.
Q3: If your
products can be customized?
A: It’s available according to the products (DDR/ Motion platform) according to the application requirement.
Q4: Can
you provide STEP file?
A: Yes, no problem with it.
Q5: Do
you provide control system?

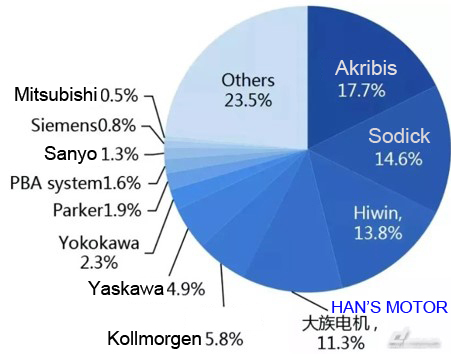

Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
3D printer, CNC machines, Glue dispenser, SMT machine, Robotic arm, Laser cutting and engraving machine, Medical devices, CNC router machine, automatic cutting equipment etc.

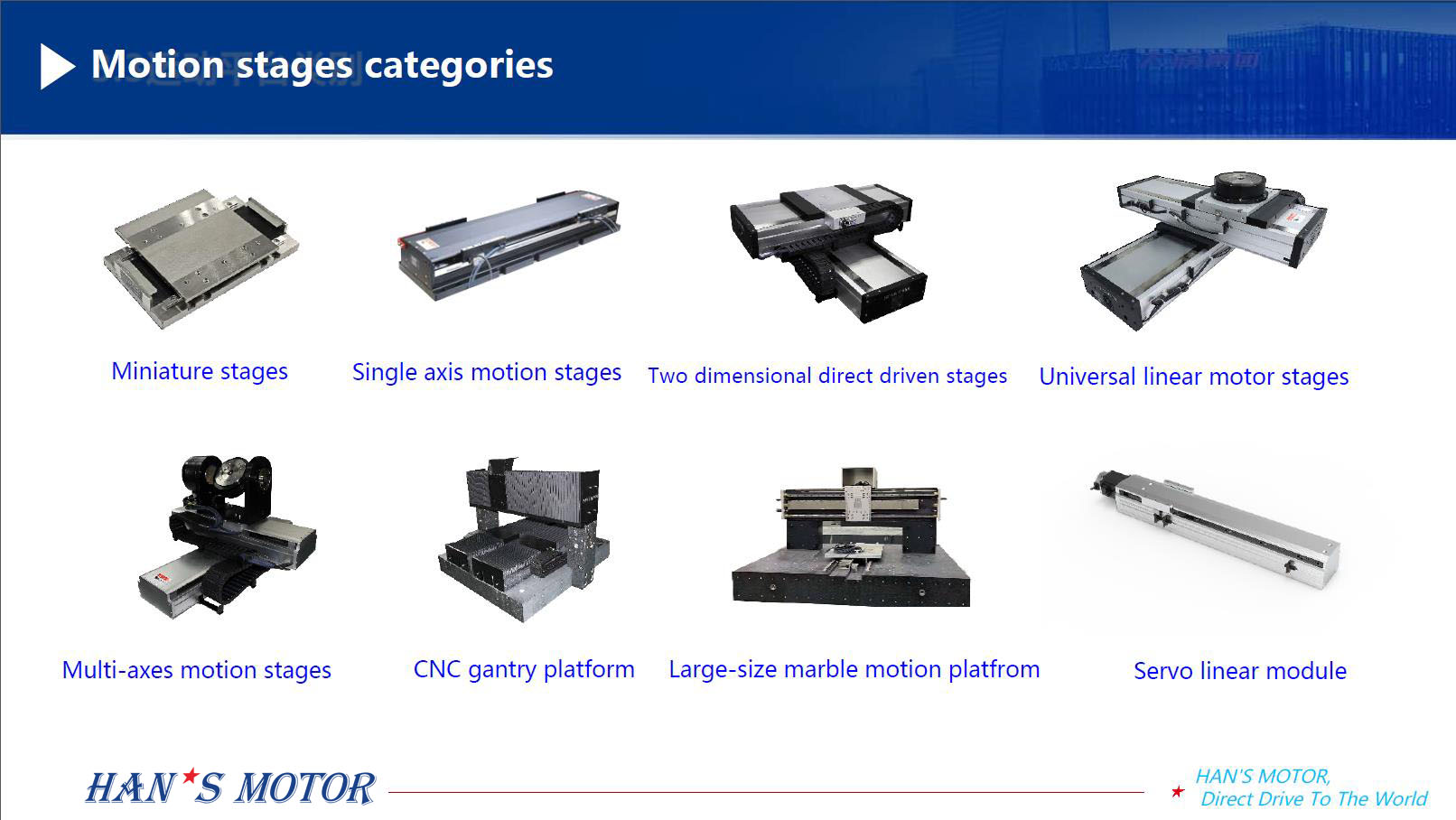

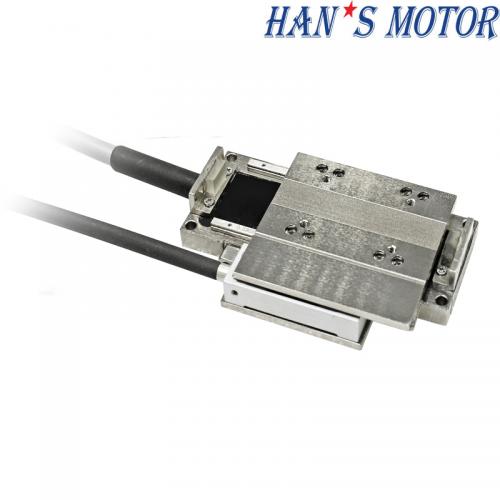

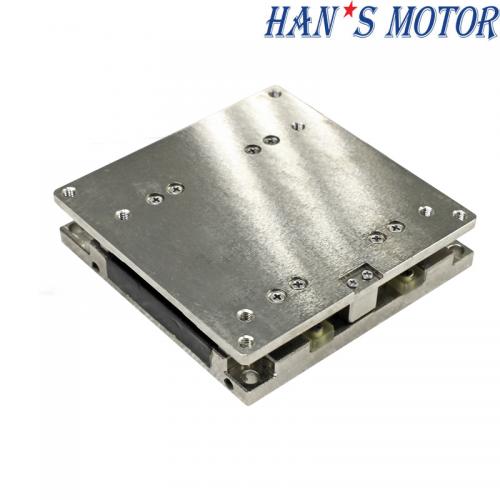

HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
