CNC linear guide rail motion stage LMA55-25-G01-A
Features:
The precision linear motor platform has ultra-low vibration, stable output, bass operation,
high dynamic performance, high positioning accuracy, high rigidity and high speed.
Advantages:
1. High stability
Imported high quality components to ensure the stable operation
2. High precision
Applied high precision linear encoder to remain great repeatability position
3. High load
High rigidity aluminium pedestal to be high rigidity to carry higher load
Brand:
HAN'S MOTOROrder(MOQ):

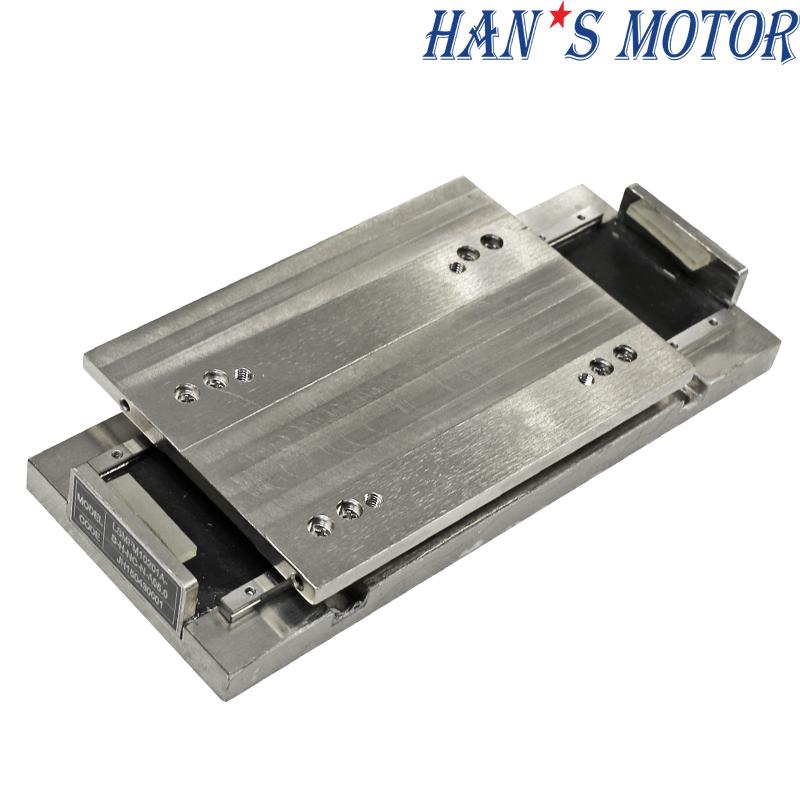

1Products Name: CNC Linear Guide Stage Rail Motion Linear Stage Miniature Stages LMA55-25-G01-A
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
|
Unit |
Data |
|
Continuous Force (Tmax） |
N |
6.5 |
|
Peak Force |
N |
26 |
|
Motor Constant |
N√W |
1.65 |
|
Max.Continuous Power Dissipation |
W |
15.46 |
|
Continuous Current (Tmax） |
Arms |
0.8 |
|
Peak Current (1S) |
Arms |
3.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
8.1 |
|
Back EMF Constant (25℃，±5%） |
Vrms/m/s |
2.7 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
11.5 |
|
Inductance(25℃，±20%）P-P |
μm |
0.31 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm |
36 |
|
Electromagnetic Attraction |
N |
51 |
|
Stage Parameters |
||
|
|
Unit |
Data |
|
Max. Load |
kg |
2.5 |
|
Effective Stroke |
mm |
25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed (1) |
mm/s |
300 |
|
Repeat accuracy |
μm |
±0.5 |
|
Weight |
kg |
0.35 |
|
Working environment temperature and humidity |
0-40℃、20-80%RH |
|

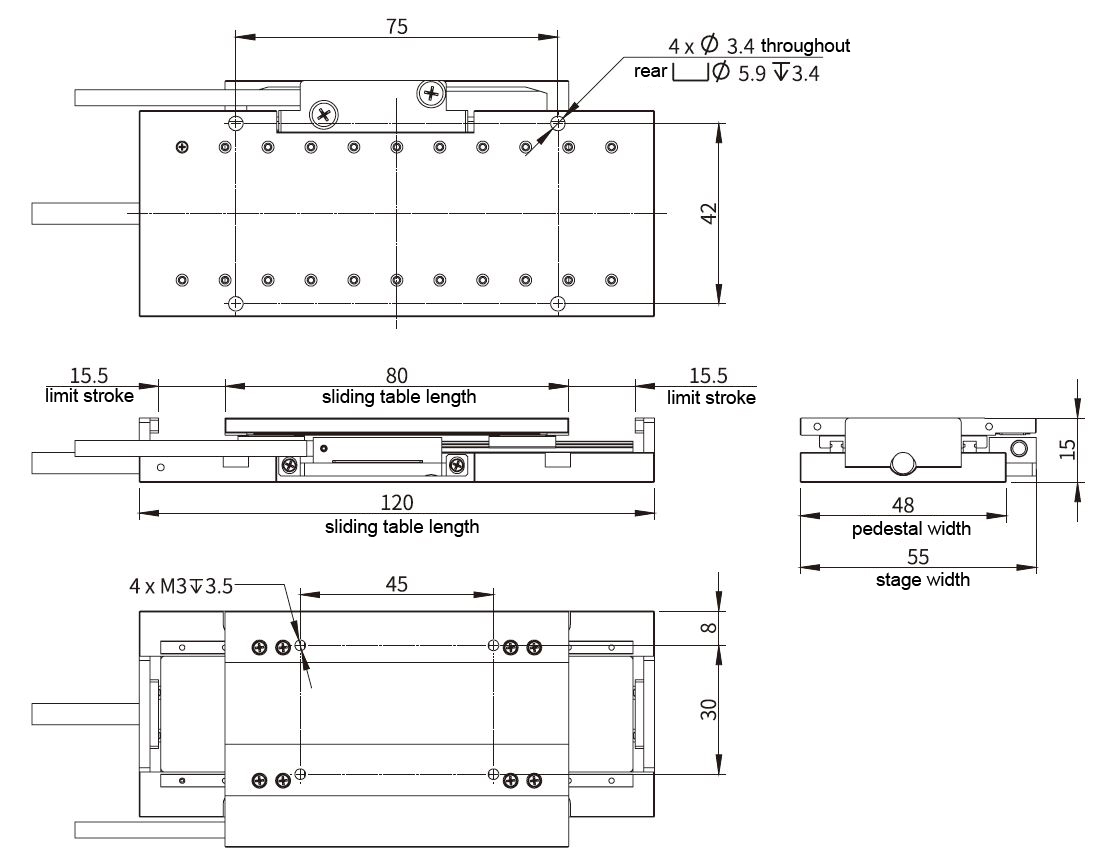

Dimension
Characteristics:
1. High stability compact structure, easy installation, high stability, compact structure, versatility feature, suitable for normal working environment
2. Stage pedestal
The use of high quality aluminium material,
unique design in line with engineering principles of high rigidity linear guide
rail.
3. Ball screw linear stage: Dust-free ball screw linear stage
Why choose us?
Q: What's your main products?
A: Our main products including linear motors, torque motors, motor modules, motion stages, AC servo systems, variable frequency drives and so on.
Q: What about the advantage of company?
A: Comprehensive modern high-tech enterprise
with the integration of R&D, manufacture, marketing and service.
Specialized in designing and manufacturing
precise linear guide system.
Focusing on research, development, production and sales of direct drive products in the global production base.

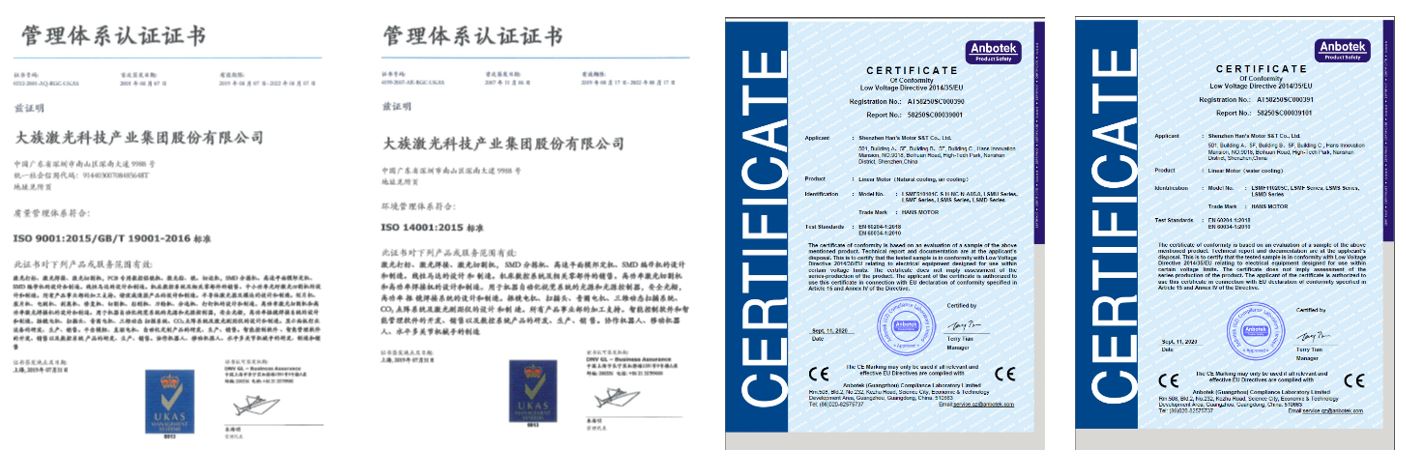

Passed ISO 9001 and ISO 14001 management system certification and CE certificate.
Exhibitions & Global marketing map
Applications:
Products widely used in CNC machines, medical and food machinery, packaging machinery, printing machines, and other automatic machines.
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
