Features：
1. Max. Playload 2.5kg
2. Effective travel 25mm
3. Max. speed 300mm/s
4. Repeated accuracy ±0.5μm
Brand:
HAN'S MOTOROrder(MOQ):

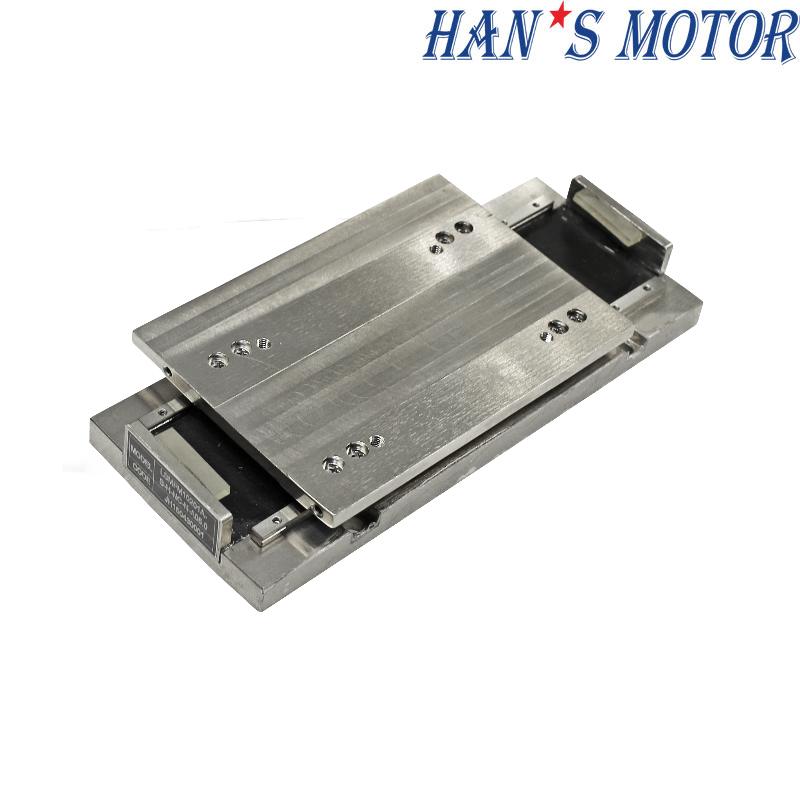

1Product name：High precision minuature linear stage for precision microassembly
Precision-class
miniature linear stage
The miniature
linear stage has an ironless linear motor that ensures smooth running. The
combination of stress-relieved aluminum base ensures good performance data. Built-in
high precision grating, repeated accuracy up to ±1μm.
Application fields
Industry and
research. Metrology. Photonics and precision scanning in semiconductor or flat
panel display manufacturing.
Motor and Stage Specifications
| Model： |
LMA55-25-XXX-A |
|
|
G01 |
Grating feedback, resolution: 0.1μm |
|
|
G05 |
Grating feedback, resolution: 0.5μm |
|
|
Motor specifications |
||
|
|
Units | Value |
|
Continuous Force (Tmax） |
N | 8 |
|
Peak Force |
N | 32 |
|
Motor Constant |
N√W |
1.74 |
|
Max.Continuous Power Dissipation |
W | 21.1 |
|
Continuous Current (Tmax） |
Arms | 0.8 |
|
Peak Current (1S) |
Arms |
3.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
10.0 |
|
Back EMF Constant (25℃，±5%） |
Vrms/m/s | 3.3 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
15.7 |
|
Inductance(25℃，±20%）P-P |
μm |
0.43 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm | 36 |
|
Magnetic Attraction |
N | 84 |
|
Stage specifications |
||
|
|
Units | Value |
|
Max. Load |
kg | 3.5 |
|
Effective Stroke |
mm | 25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed（1） |
mm/s | 700 |
|
Repeat accuracy |
μm |
±0.5 |
|
Weight |
kg | 0.5 |
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH |
|

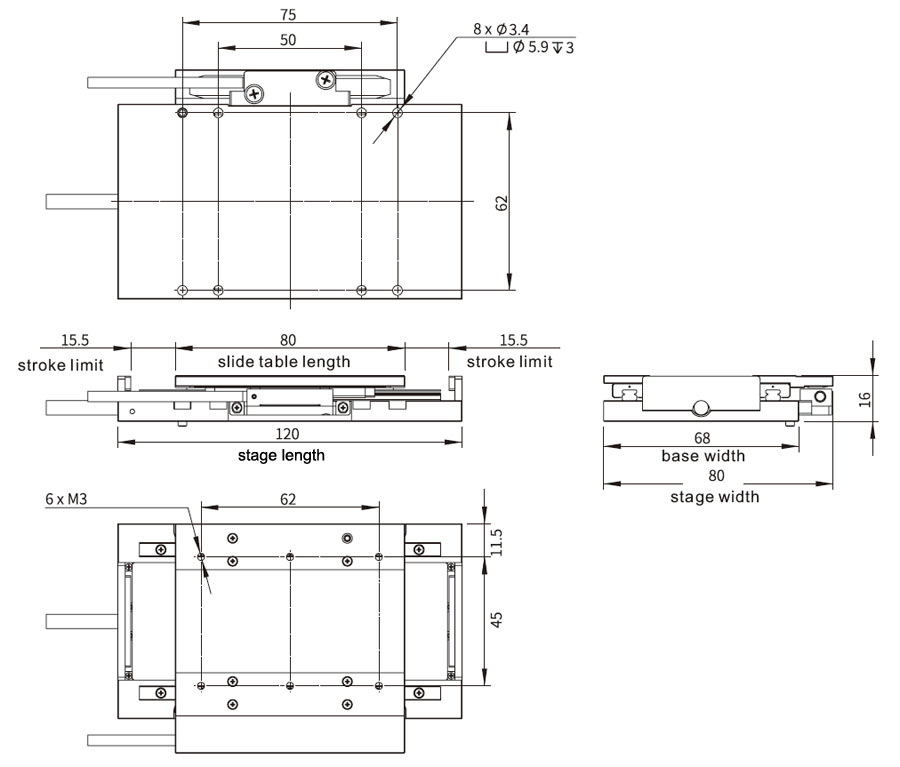

Dimensions
Laser Group Show
Our Company Show
Company
Qualification
Inventive Patent
Honor
Packaging & Delivery
Packaging Details.: plywood packing
