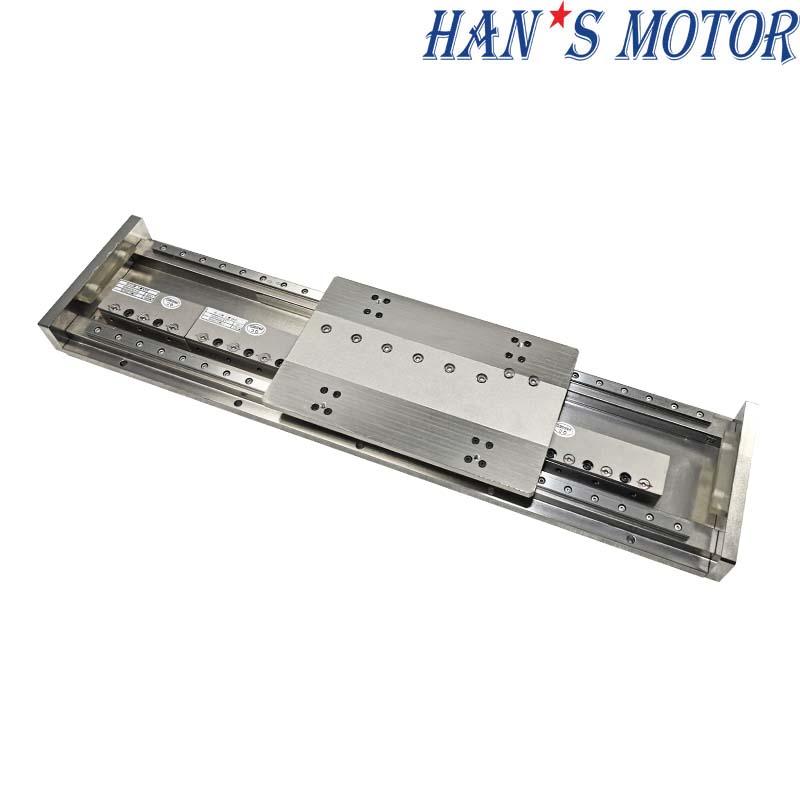

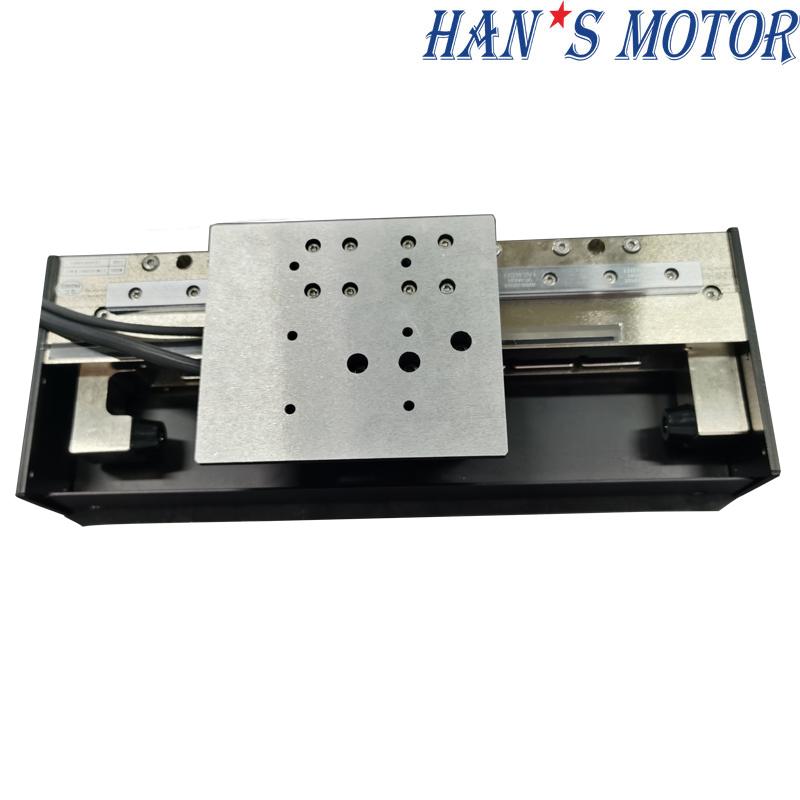

High Dynamics Linear Motor Stages LMB100 Direct-Drive Linear Stage
Features:
1. High stability: Imported high quality accessories to ensure the stable operation.
2. High precision: Applied high precision lead rail to remain a great position repeatability.
3. High load: Anodized aluminum base and parts, high rigidity and carry higher load.
Advantages:
High speed, high precision, super smooth, factory direct sales.
High duty, superior quality and original export.
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: High
Precision and High Speed Linear Guide Miniature Linear Stage LMB100-200-G05-A
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
15 |
|
Peak Force |
N |
150 |
|
Max. Load |
kg |
5 |
|
Effective Stroke |
mm |
200 |
|
Resolution |
μm |
0.1 |
|
Max.Speed |
mm/s |
700 |
|
Repeat accuracy |
μm |
±0.6 |
|
Weight |
kg |
3.5 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
Performance
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
10 |
14 |
14 |
18 |
18 |
22 |
26 |
26 |
30 |
34 |
34 |
|
N |
1 |
2 |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
7 |
8 |
8 |
|
Stage Total Length (mm) |
320 |
420 |
520 |
620 |
720 |
820 |
920 |
1020 |
1120 |
1220 |
1320 |
1420 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer
Dimension
Characteristics:
1. Adopt high rigidity aluminum profile, truly achieve high speed mechanical production efficiency, high positioning accuracy and repeat positioning accuracy.
2. With self-developed integrated guideway design, improved rigidity, straightness, and flatness leads to higher performance in applications: machinery manufacturing, electronics, semiconductors, optoelectronic,
medical treatment, construction, factory automation and other fields.
Why choose us?
Q1. Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufactured in Shenzhen plant.
Q2. What is advantage of your company?
A : Comprehensive modern high-tech enterprise with the integration of R&D, manufacture, sales and service.
Q3. How can we trust your company?
A: 100% direct supplier allows for maximized profits for clients.
100% excellent quality guaranteed where each production process is strictly controlled.
100% on-time delivery, approximately 19 years of professional production and installation.
Q4. Can you give warranty of your products?
A: All products are inspected for quality before shipment, materials and applications need to be able to work continuously through extremely harsh working environments.
Q5. What is the MOQ?
A: We need to discuss more details for customization, description of the products you want, such as size, material, quantity and so on. High quality and competitive price are always provided.
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
Automatic production lines, medical equipment, laser cutting equipment, spray machine equipment, dispenser, chip mounter, 3D printing machine etc.
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
