Industrial Automation Precision Linear Actuator

China Best Arc Motor Supplier High Precision Slide Table Smooth Operated CNC Guide Motor Ball Screw Linear Module LSS135M

Ball Screw Linear Module Guide Rail Linear Motion CNC Linear Guide Rail With 400W Motor

Product description:

Effective Length:100-1050mm

Max. itinerary: 1050mm

Max. speed: 1600mm/s

Motor capacity: 400W

Balls crew: Φ16mm

Linear slide: W15*H12.5--two pieces

Features:

1. Semi-sealer structure, high stability, compact and versatility, suitable for normal working environment

2. It is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

3. Drive method: ball screw/ synchronous belt

4. High speed mute, high positioning accuracy with long service life

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: Linear Guides Ball Screw Modules Effective Stroke 100-1050mm Aluminum and stainless Steel for CNC milling machine

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	20	32
	Max. velocity (mm/s)		250	500	1000	1600
	Max. conveyable weight	horizontal (kg)	70	47	24	13
		Vertical (kg)	17	12	6	-
	Rated thrust (N)		1388	694	433	347
	Standard stroke (mm)		100-1050mm
Parts	AC servo motor power (W)		400
	Ball screw O.D （mm)		C7 Φ16
	Linear slide		W15*H12.5
	Coupling		Motor Φ14 * screwΦ10
	Original sensor	external hanging	EE-SX672 (NPN)
		build-in	EE-SX674 (NPN)

Sensor Connection Diagram <Origin and End Points>

CNC Ball Screw Module Linear Slide Module

Allowable load torque table N.m

CNC Ball Screw Module Linear Slide Module

Installation method:

(Unit: mm)

Horizontal installation		A	B	C
Lead 5	40kg	795	63	225
	55kg	558	43	155
	70kg	422	32	115
Lead 10	25kg	588	95	276
	35kg	410	65	190
	47kg	295	46	135
Lead 20	6kg	1068	355	710
	15kg	416	136	275
	24kg	252	81	166
Lead 32	7kg	385	205	298
	13kg	204	106	156
	-	-	-	-

(Unit: mm)

Hanging installation		A	B	C
Lead 5	30kg	310	88	1066
	50kg	172	49	620
	70kg	115	32	422
Lead 10	20kg	351	122	743
	30kg	225	78	484
	47kg	135	46	294
Lead 20	5kg	852	428	1227
	12kg	345	173	522
	24kg	166	81	253
Lead 32	6kg	350	240	453
	13kg	155	106	204
	-	-	-	-

(Unit: mm)

Vertical installation		A	C
Lead 5	5kg	580	580
	11kg	264	264
	17kg	170	170
Lead 10	4kg	644	644
	8kg	322	322
	12kg	215	215
Lead 20	3kg	667	667
	6kg	335	335
	-	-	-

Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

(Unit: mm)

MY	174
MP	175
MR	153

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	400	200	HSAL-A04FL-B0.2-C2	HANS-A-00323-P
Han's	H	Brake (Vertical )	400	200	HSAL-A04BL-B0.2-C2	HANS-A-00323-P
International	P	without brake (Horizontal )	400	200	MSMF042L1U2M	MBDLN25SE
International	P	Brake (Vertical )	400	200	MSMF042L1V2M	MBDLN25SE
Mitsubishi	M	without brake (Horizontal )	400	200	HF-KP43	MR-J3-40A
Mitsubishi	M	Brake (Vertical )	400	200	HF-KP43B	MR-J3-40A

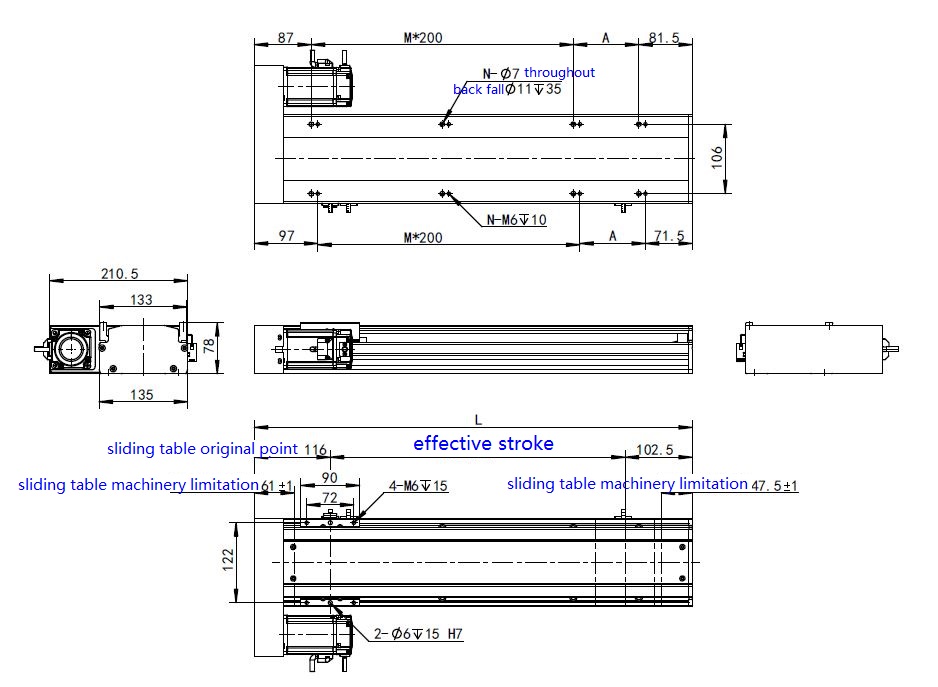

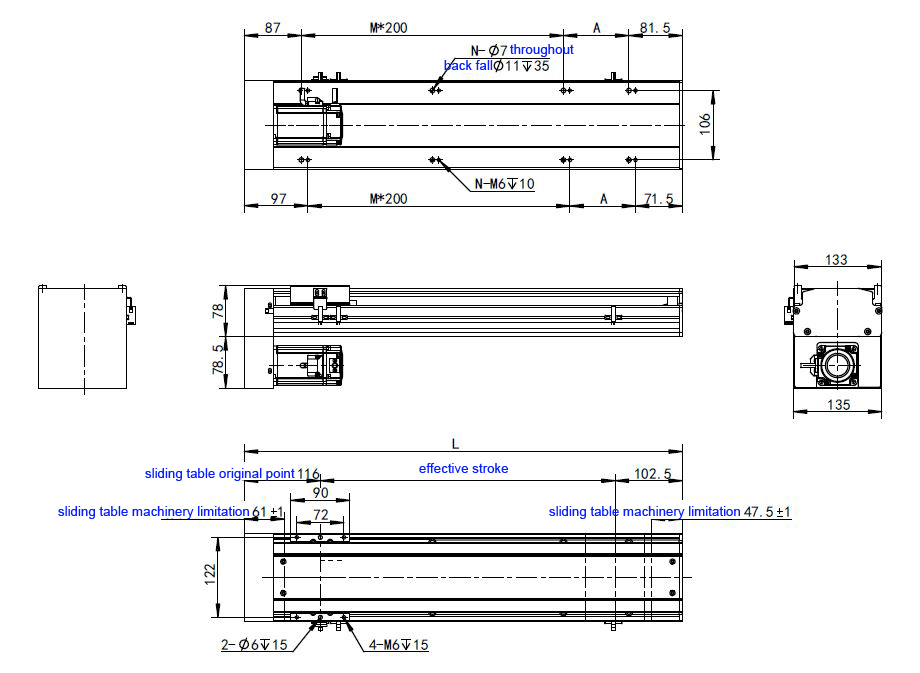

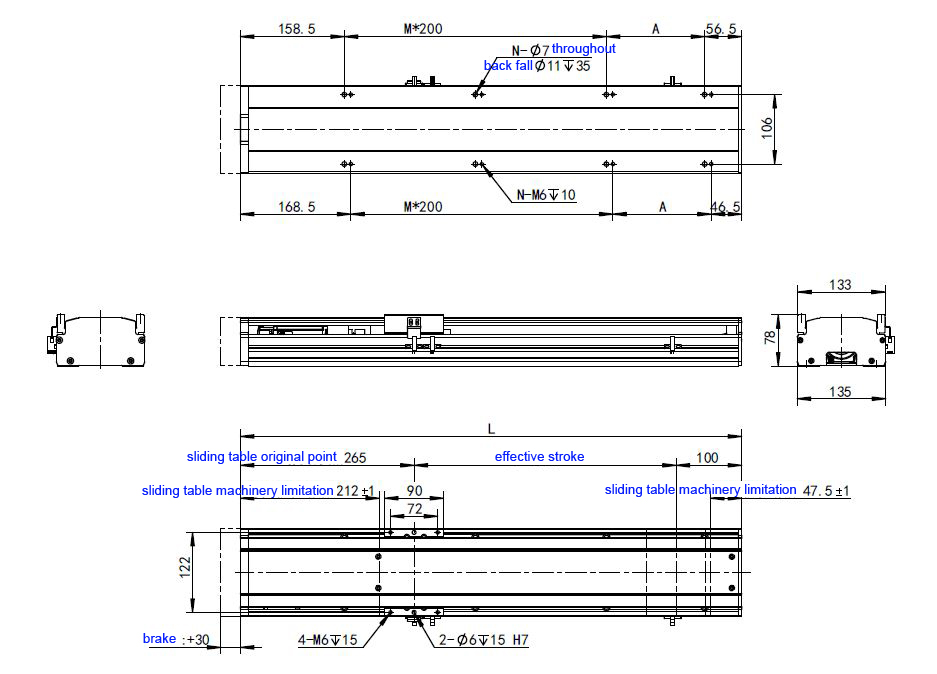

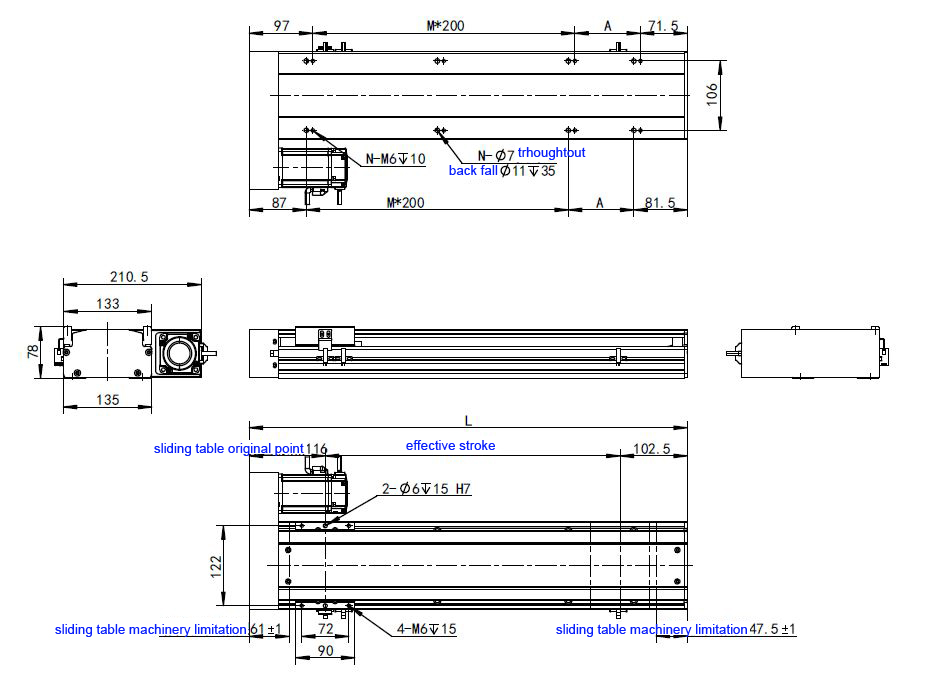

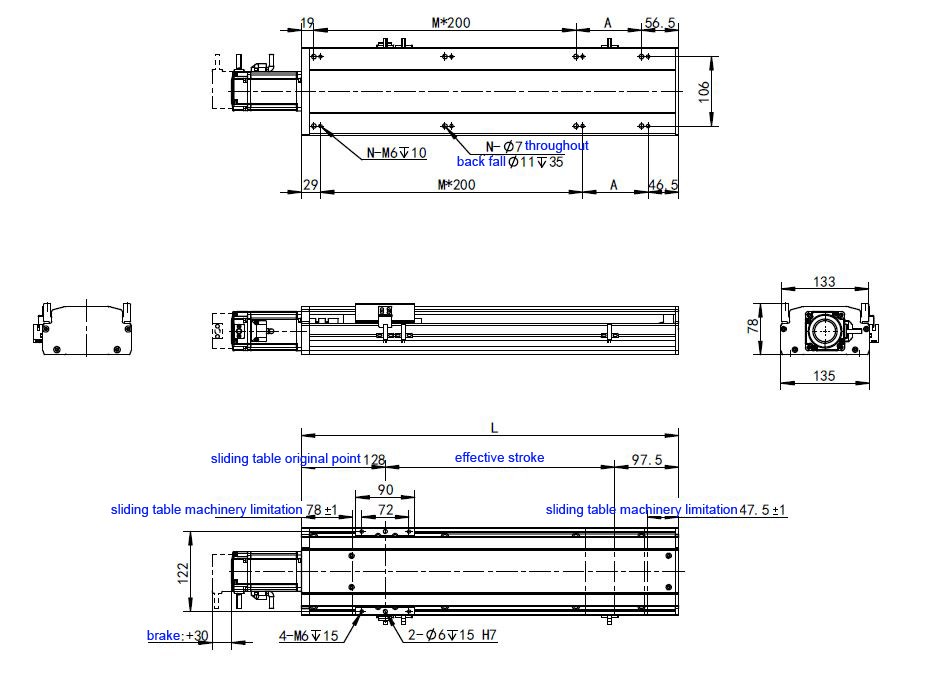

Dimension

Motor Built-in

HAN'S MOTOR linear motor module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	465	515	565	615	665	715	765	815	865	915	965	1015	1065	1115	1165	1215	1265	1315	1365	1415
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	8.86	9.42	9.98	10.54	11.1	11.66	12.22	12.78	13.34	13.9	14.46	15.02	15.58	16.14	16.7	17.26	17.82	18.38	18.94	19.5

Motor Exposed

HAN'S MOTOR linear motor module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	325.5	375.5	425.5	475.5	525.5	575.5	625.5	675.5	725.5	775.5	825.5	875.5	925.5	975.5	1025.5	1075.5	1125.5	1175.5	1225.5	1275.5
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	7.96	8.52	9.08	9.64	10.2	10.76	11.32	11.88	12.44	13	13.56	14.12	14.68	15.24	15.8	16.36	16.92	17.48	18.04	18.6

Motor Fold Down

linear motion guide rail

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	318.5	368.5	418.5	468.5	518.5	568.5	618.5	668.5	718.5	768.5	818.5	868.5	918.5	968.5	1018.5	1068.5	1118.5	1168.5	1218.5	1268.5
A	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5
N	4	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14
KG	8.5	9.06	9.62	10.18	10.74	11.3	11.86	12.42	12.95	13.54	14.1	14.66	15.22	15.78	16.34	16.9	17.46	18.02	18.58	19.14

Motor Left Fold

linear motion guide rail

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	318.5	368.5	418.5	468.5	518.5	568.5	618.5	668.5	718.5	768.5	818.5	868.5	918.5	968.5	1018.5	1068.5	1118.5	1168.5	1218.5	1268.5
A	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5
N	4	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14
KG	8.5	9.06	9.62	10.18	10.74	11.3	11.86	12.42	12.95	13.54	14.1	14.66	15.22	15.78	16.34	16.9	17.46	18.02	18.58	19.14

Motor Right Fold

linear motion guide rail

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	318.5	368.5	418.5	468.5	518.5	568.5	618.5	668.5	718.5	768.5	818.5	868.5	918.5	968.5	1018.5	1068.5	1118.5	1168.5	1218.5	1268.5
A	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5
N	4	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14
KG	8.5	9.06	9.62	10.18	10.74	11.3	11.86	12.42	12.95	13.54	14.1	14.66	15.22	15.78	16.34	16.9	17.46	18.02	18.58	19.14

Characteristics:

(1) Ball screw slide module: Including motor, coupling, mounting nut;

(2) High hardness, not easy to rust, not easy to deformed, wear-resistant and anti-corrosion;

(3) Built-in aluminum mounting plate for excellent heat dissipation and lighter weight;

(4) Fully covered by metal shielding for eliminating EMI to nearby encoder head;

(5) Solutions: Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc.
