CNC Linear Actuator Linear Motion Guide Linear Module

Wholesale Economic Motorized CNC Electrical Ball Screw Linear Motion Guide Rail Module LSS220

CNC Linear Actuator Linear Motion Guide Servo Module LSS220

Product description:

Belt Drive Linear Guide Rails Series

The belt drive linear guide rails are driven by synchronous belt,

can easily realize the long stroke and large range of motion.

Using aluminum structure, the max stroke can reach 1500mm, max speed up to 2000mm/s.

Linear motor is used for control system of high-speed motion platform motor, motion module providing huge direct kinetic.

Features:

1. Double linear guides, small moving mass and high thrust.

2. Linear encoder with high resolution.

3. High acceleration speed (up to 2000mm/s).

4. Stabilizing vibration strengthens low-speed stability and ultra-short setting time.

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: Heavy Duty Aluminium CNC Linear High Speed Belt driven Guide Rail Slide Module With 1500mm Stroke

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	25	40
	Max.velocity (mm/s)		250	500	1250	2000
	Max.conveyable weight	horizontal (kg)	150	120	105	43
		Vertical (kg)	55	45	20	12
	Ratedthrust (N)		2565	1281	640	320
	Standard stroke (mm)		100-1250mm
Parts	AC servo motor power (W)		750
	Ballscrew O.D （mm)		C7 Φ25
	Linear slide		W23*H18
	Coupling		Motor Φ19 * screwΦ19
	Original sensor	external hanging	EE-SX672 (NPN)
		build-in	EE-SX674 (NPN)

Sensor Connection Diagram <Origin and End Points>

High Precision Motorized Motion Slide Linear Motor Module

Allowable load torque table N.m

CNC Industry Linear Motor Stages

Installation method:

(Unit: mm)

Horizontal installation		A	B	C
Lead 5	100kg	5000	633	577
	125kg	3880	491	431
	150kg	3357	396	347
Lead 10	100kg	3220	563	474
	125kg	2554	434	367
	150kg	2113	349	295
Lead 25	65kg	1522	614	458
	85kg	1136	451	336
	105kg	893	350	262
Lead 40	18kg	2445	1616	1052
	30kg	1436	938	613
	43kg	978	630	412

(Unit: mm)

Hanging installation		A	B	C
Lead 5	110kg	500	569	4500
	130kg	412	469	3711
	150kg	347	396	3357
Lead 10	110kg	427	503	2900
	130kg	351	414	2444
	150kg	295	349	2113
Lead 25	70kg	420	564	1404
	90kg	315	420	1066
	105kg	262	350	893
Lead 40	15kg	1272	1955	2948
	24kg	778	1190	1813
	43kg	412	630	978

(Unit: mm)

Vertical installation

A

C

Lead 5

30kg

2355

2355

40kg

1768

1768

55kg

1288

1288

Lead 10

25kg

2505

2505

35kg

1795

1795

45kg

1396

1396

Lead 25

15kg

2711

2711

20kg

2033

2033

-

-

-

Lead 40

7kg

3511

3511

12kg

2055

2055

-

-

-

Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

(Unit: mm)

MY	2052
MP	2052
MR	1810

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	750	200	HSAL-A08FL-B0.2	HANS-A-00623-P
Han's	H	Brake (Vertical )	750	200	HSAL-A08BL-B0.2	HANS-A-00623-P
International	P	without brake (Horizontal )	750	200	MHMF082L1U2M	MCDLN35SE
International	P	Brake (Vertical )	750	200	MHMF082L1V2M	MCDLN35SE
Mitsubishi	M	without brake (Horizontal )	750	200	HF-KP73	MR-J3-70A
Mitsubishi	M	Brake (Vertical )	750	200	HF-KP73B	MR-J3-70A

Dimension

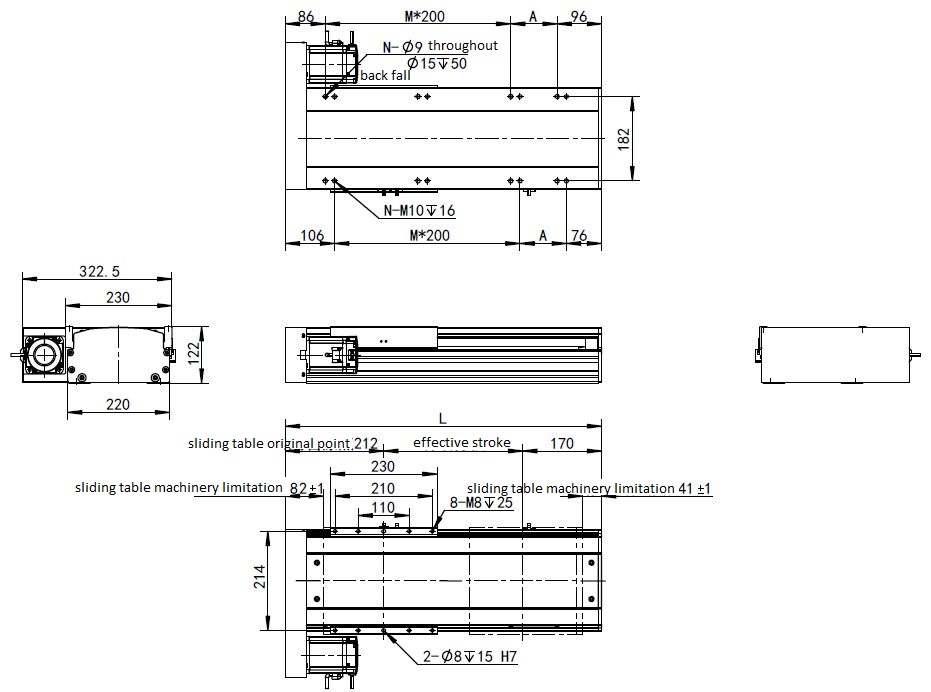

Motor Built-in

High Precision Motorized Motion Slide Linear Motor Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500
L	690	740	790	840	890	940	990	1040	1090	1140	1190	1240	1290	1340	1390	1440	1490	1540	1590	1640	1690	1740	1790	1840	1890	1940	1990	2040	2090
A	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8
N	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20
KG	29.32	30.79	32.26	33.73	35.2	36.67	38.14	39.61	41.08	42.55	44.02	45.49	46.96	48.43	49.9	51.37	52.84	54.31	55.78	57.25	58.72	60.19	61.66	63.13	64.6	66.07	67.54	69.01	70.84

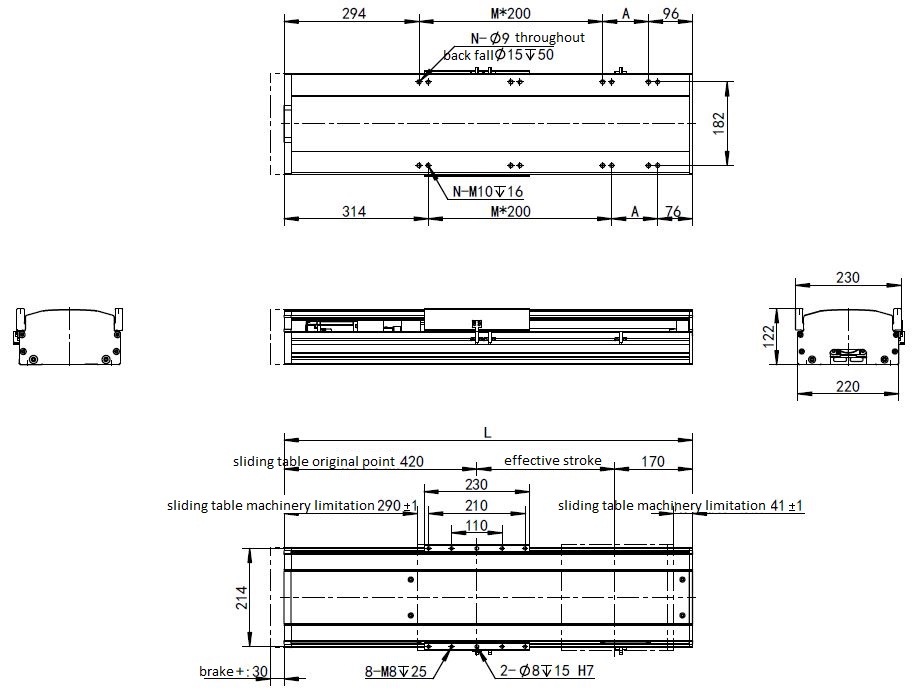

Motor Exposed

High Precision Motorized Motion Slide Linear Motor Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500
L	520	570	620	670	720	770	820	870	920	970	1020	1070	1120	1170	1220	1270	1320	1370	1420	1470	1520	1570	1620	1670	1720	1770	1820	1870	1920
A	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8
N	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20
KG	26.86	28.32	29.78	31.24	32.7	34.16	35.62	37.08	38.54	40	41.46	42.92	44.38	45.84	47.3	48.76	50.22	51.68	53.14	54.6	56.06	57.52	58.98	60.44	61.9	63.36	64.82	66.28	67.74

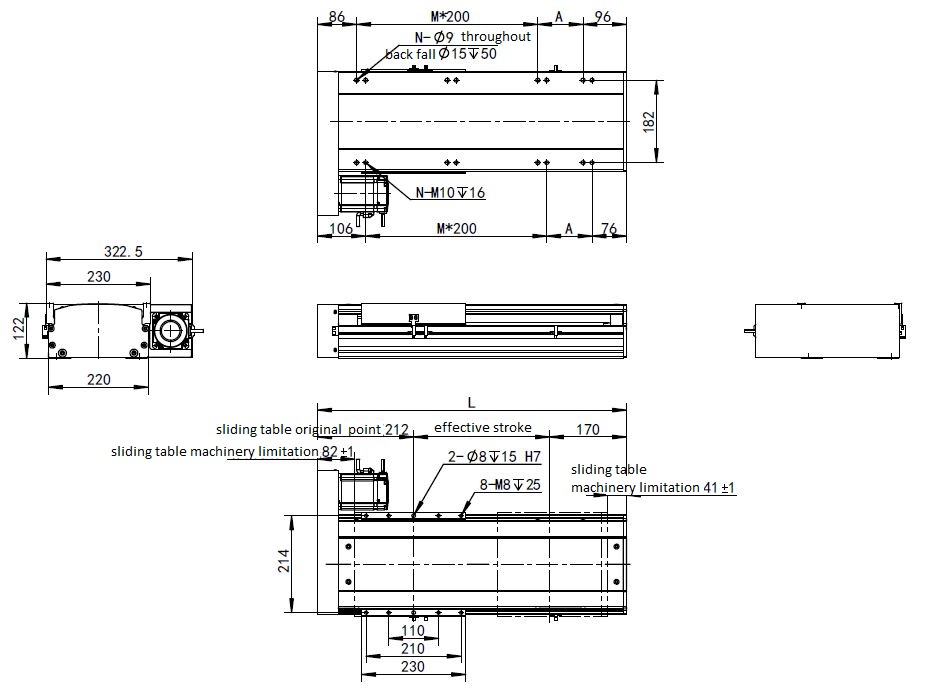

Motor Fold Down

High Precision Motorized Motion Slide Linear Motor Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500
L	482	532	582	632	682	732	782	832	882	932	982	1032	1082	1132	1182	1232	1282	1332	1382	1432	1482	1532	1582	1632	1682	1732	1782	1832	1882
A	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8
N	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20
KG	25.66	27.12	28.58	30.04	31.5	32.96	32.96	35.88	37.34	38.8	40.26	41.72	43.18	44.64	46.1	47.56	59.02	50.48	51.94	53.4	54.86	56.32	57.78	69.24	60.7	62.16	63.62	65.08	65.54

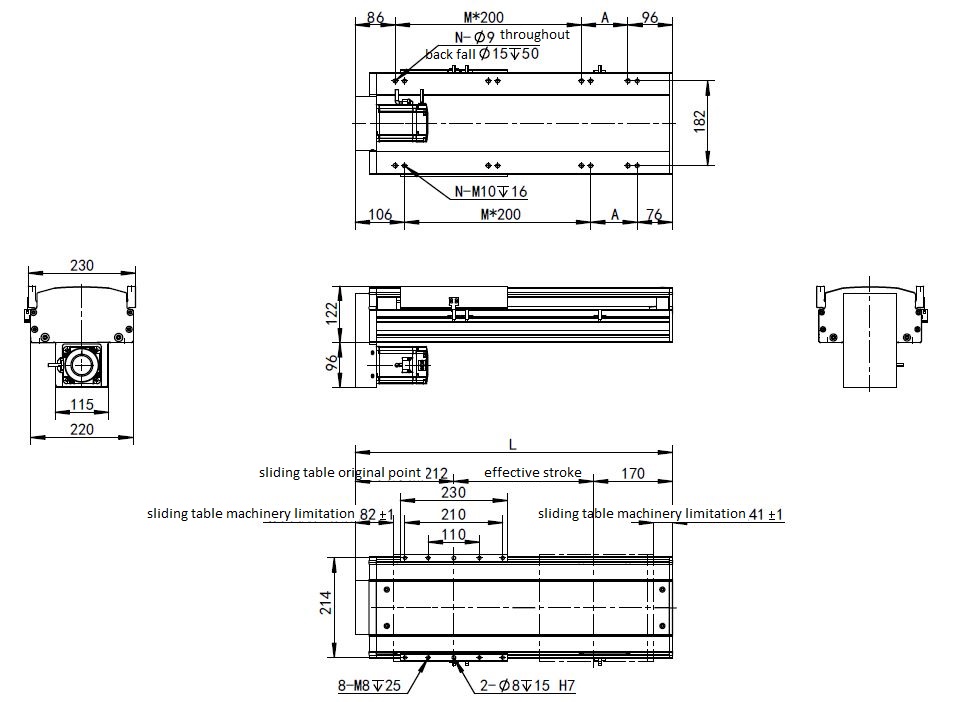

Motor Left Fold

High Precision Motorized Motion Slide Linear Motor Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500
L	482	532	582	632	682	732	782	832	882	932	982	1032	1082	1132	1182	1232	1282	1332	1382	1432	1482	1532	1582	1632	1682	1732	1782	1832	1882
A	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8
N	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20
KG	25.66	27.12	28.58	30.04	31.5	32.96	32.96	35.88	37.34	38.8	40.26	41.72	43.18	44.64	46.1	47.56	59.02	50.48	51.94	53.4	54.86	56.32	57.78	69.24	60.7	62.16	63.62	65.08	65.54

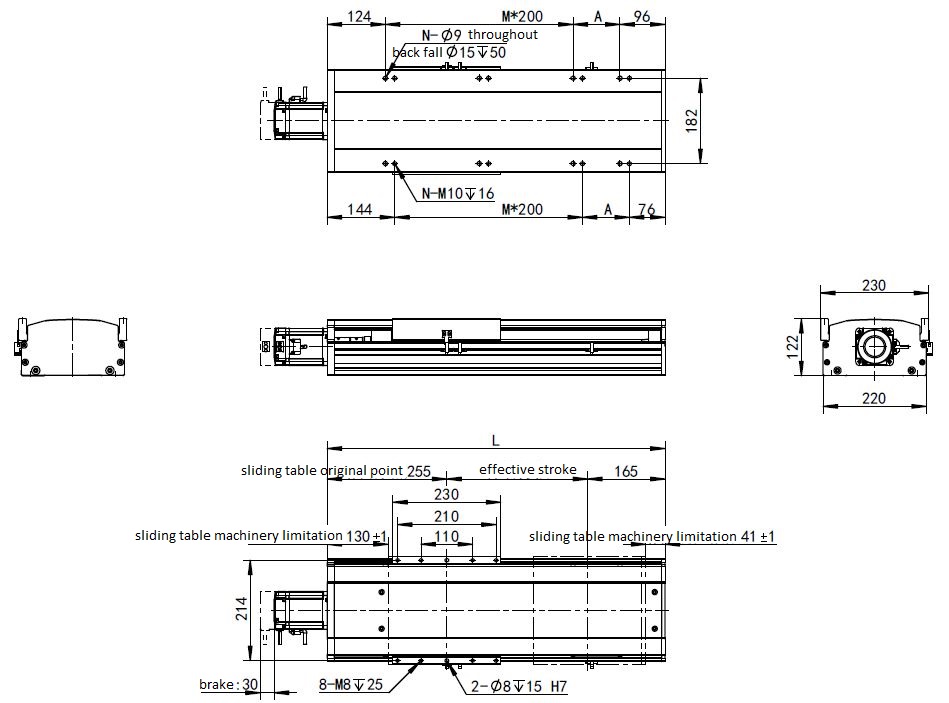

Motor Right Fold

High Precision Motorized Motion Slide Linear Motor Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500
L	482	532	582	632	682	732	782	832	882	932	982	1032	1082	1132	1182	1232	1282	1332	1382	1432	1482	1532	1582	1632	1682	1732	1782	1832	1882
A	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
M	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8
N	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20
KG	25.66	27.12	28.58	30.04	31.5	32.96	32.96	35.88	37.34	38.8	40.26	41.72	43.18	44.64	46.1	47.56	59.02	50.48	51.94	53.4	54.86	56.32	57.78	69.24	60.7	62.16	63.62	65.08	65.54

Characteristics:

1. High precision, fast speed and stable performance, fast delivery (short delivery period), simple structure, small size, high thrust.

2. High speed: Steel wire belt, fast speed, low noise, high-speed movement can be realized with controller.

High stability, compact structure, heavy load and long life.

3. Precision Bearing: Compact structure and beautiful appearance.

4. Nut grooves on multiple sides: The side and bottom are provided with nut slots for mounting and fixing modules, drag chains, sensors,motor connecting plates, etc.

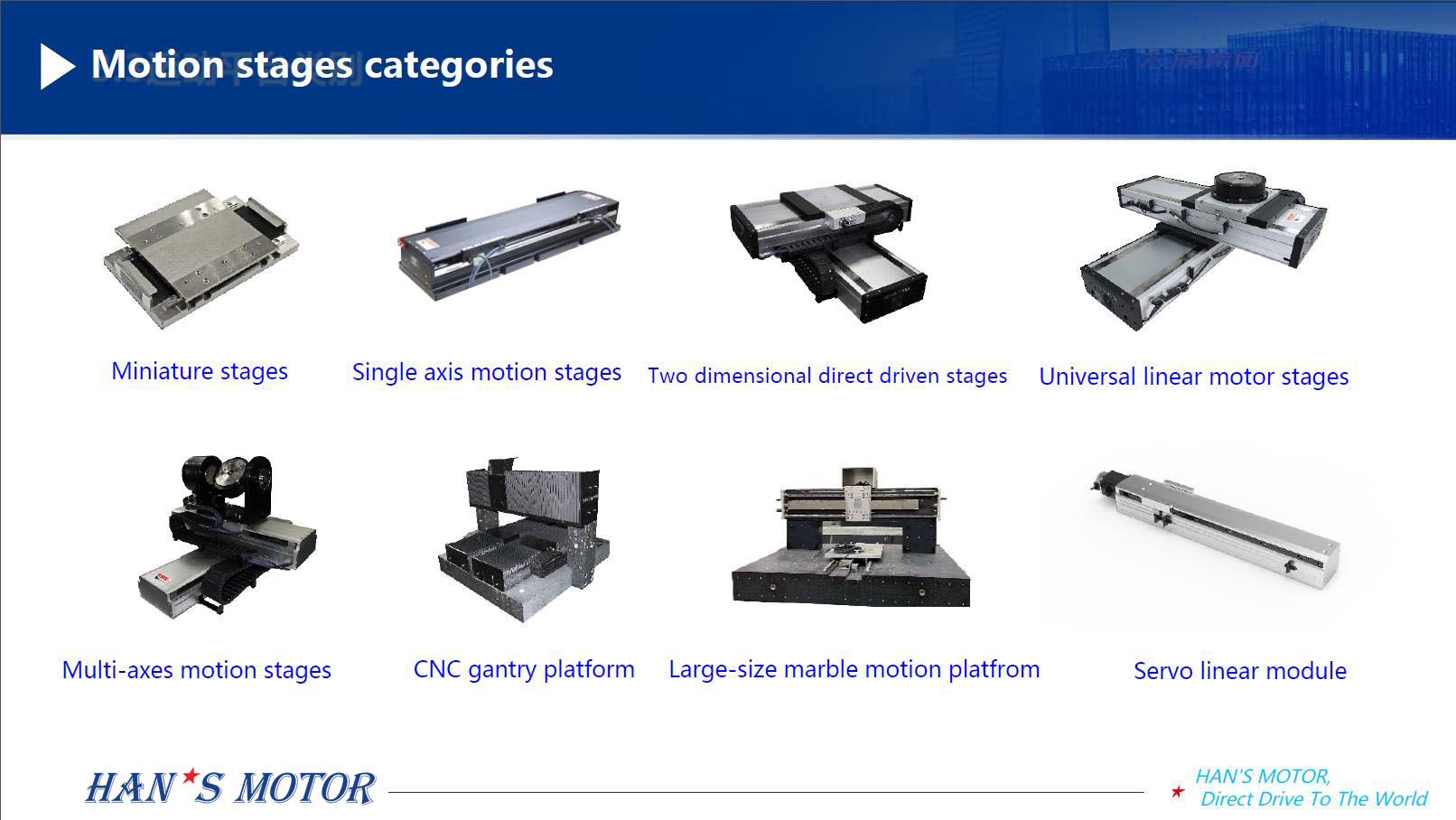

HAN'S MOTOR Linear Motor Module Related Products.:

HAN'S LASER CNC linear actuator Linear Motion Guide Linear Module

Why choose us?

Q1: Are you a factory or trading company?

A: We are an innovative and high technology enterprise specializing in R&D, application of direct drive in 2005 a

the wholly-owned subsidiaries of The listed company Han's Laser Technology Industry Group Co., Ltd

(Stock Code: 002008).

Manufacturing linear motor, DDR torque motor, motion stage, AC servo system, special used frequency inverter.

We are committed to helping customers premium solutions with excellent service teams.

Q2: How does your factory do regarding quality control?

A:”Quality is priority.” Our company passed the management system approved ISO 9001 & ISO 14001

Q3: How long is your delivery time?

A: Generally, it takes 10 days for sample order, maximum 35 days for bulk order. Specific production time according to the quantity you required.

Our services.

Solution can be customized to the customer's personalized needs. Provide the customer with high quality

R&D design and processing custom services professional and efficient pre-sale, middle-sale

and after-sales service team!

HAN'S LASER China Best DDR motor Supplier

Applications:

AOI detection equipment, solar photovoltaic stabling equipment, new energy lithium battery packaging equipment, solar photovoltaic laminated welding equipment, solar photovoltaic string welder, micrometer precision platform,

Cnc linear actuator Linear Motion Guide Linear Module HAN'S MOTOR

Exhibitions & Global Market Mapping:

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity,

samples in stock will be delivered within 15 days and customized model will be delivered within 35 days.
