High Precision Guide Slide Table Linear Motor Module

China Best Arc Motor Supplier Linear Motion Guide Rail Module For 3D Printer LSS135

Aluminum Durable Linear Module Linear Guides Slide 100MM-1050MM Effective Linear Stage LSS135

Product description:

Effective Length:100-1050mm

Max. itinerary: 1050mm

Max. speed: 1600mm/s

Motor capacity: 400W

Balls crew: Φ16mm

Linear slide: W15*H12.5--two pieces

Features:

1. Low cost automation solution, easy to install and disassemble

2. Long stroke solid aluminum profile structure

3. Smooth ballscrew and good lubrication design

4. Aluminum extrusion molding and integrated pedestal

5. Dust proof in hard environment and easy for maintenance

6. High positioning accuracy with long service life

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: Aluminum Durable Linear Module Linear Guides Slide 100MM-1050MM Effective Linear Stage LSS135

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	20	32
	Max.velocity (mm/s)		250	500	1000	1600
	Max.conveyable weight	horizontal (kg)	110	88	40	13
		Vertical (kg)	33	22	10	8
	Ratedthrust (N)		1388	694	347	218
	Standard stroke (mm)		100-1050mm
Parts	AC servo motor power (W)		400
	Ballscrew O.D （mm)		C7 Φ16
	Linear slide		W15*H12.5
	Coupling		Motor Φ14 * screwΦ10
	Original sensor	external hanging	EE-SX672 (NPN)
		build-in	EE-SX674 (NPN)

Sensor Connection Diagram <Origin and End Points>

CNC Industry Linear Motor Stages

Allowable load torque table N.m

CNC Industry Linear Motor Stages

Installation method:

(Unit: mm)

Horizontal installation		A	B	C
Lead 5	60kg	2512	242	232
	80kg	1811	172	164
	110kg	1284	114	108
Lead 10	30kg	2727	470	430
	50kg	1577	266	242
	88kg	854	134	122
Lead 20	10kg	2304	1222	1028
	22kg	1443	540	451
	40kg	860	277	233
Lead 32	15kg	1033	545	405
	25kg	604	311	233
	30kg	495	251	188

(Unit: mm)

Hanging installation		A	B	C
Lead 5	55kg	257	269	2883
	75kg	178	186	2000
	110kg	108	114	1284
Lead 10	35kg	363	395	2368
	55kg	218	238	1445
	88kg	123	134	854
Lead 20	12kg	854	1019	2552
	20kg	500	596	1588
	40kg	233	277	860
Lead 32	15kg	405	545	1033
	30kg	188	251	495
	-	-	-	-

(Unit: mm)

Vertical installation		A	C
Lead 5	15kg	1118	1118
	22kg	770	770
	33kg	513	513
Lead 10	10kg	1500	1500
	14kg	1072	1072
	22kg	682	682
Lead 20	7kg	1700	1700
	10kg	1188	1188
	-	-	-
Lead 32	5kg	1503	1503
	8kg	944	944
	-	-	-

Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

(Unit: mm)

MY	551
MP	552
MR	485

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	400	200	HSAL-A04FL-B0.2-C2	HANS-A-00323-P
Han's	H	Brake (Vertical )	400	200	HSAL-A04BL-B0.2-C2	HANS-A-00323-P
International	P	without brake (Horizontal )	400	200	MSMF042L1U2M	MBDLN25SE
International	P	Brake (Vertical )	400	200	MSMF042L1V2M	MBDLN25SE
Mitsubishi	M	without brake (Horizontal )	400	200	HF-KP43	MR-J3-40A
Mitsubishi	M	Brake (Vertical )	400	200	HF-KP43B	MR-J3-40A

Dimension

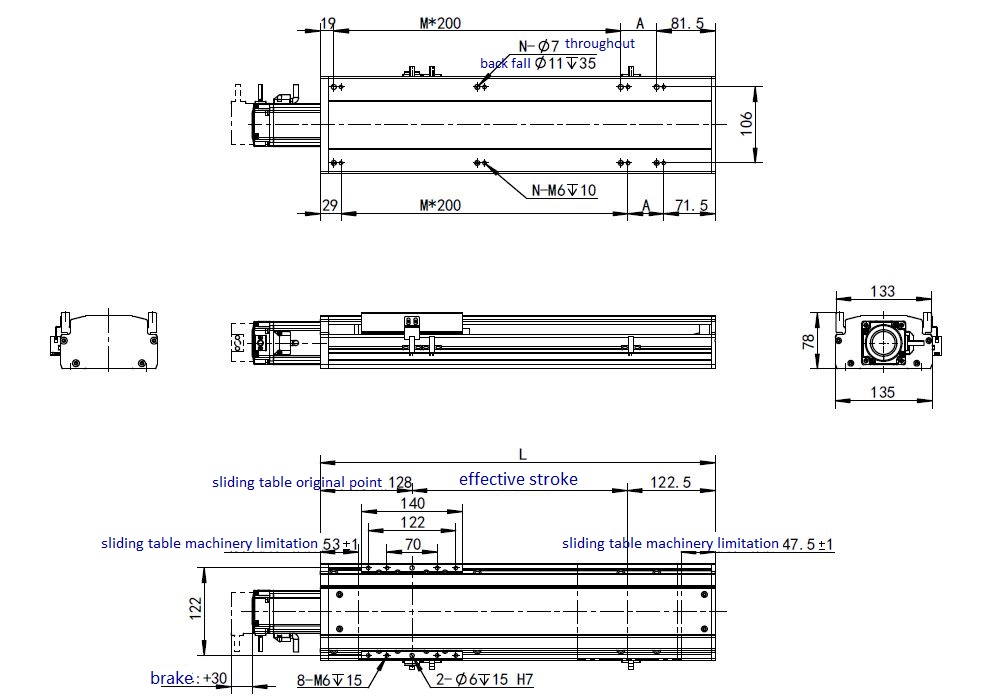

Motor Built-in

HAN'S LASER CNC Industry Linear Motor Stages

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	490	540	590	640	690	740	790	840	890	940	990	1040	1090	1140	1190	1240	1290	1340	1390	1440
A	50	100	150	200	500	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	10.06	10.62	11.18	11.74	12.3	12.86	13.42	13.98	14.54	15.1	15.66	16.22	16.78	17.34	17.9	18.46	19.02	19.58	20.14	20.7

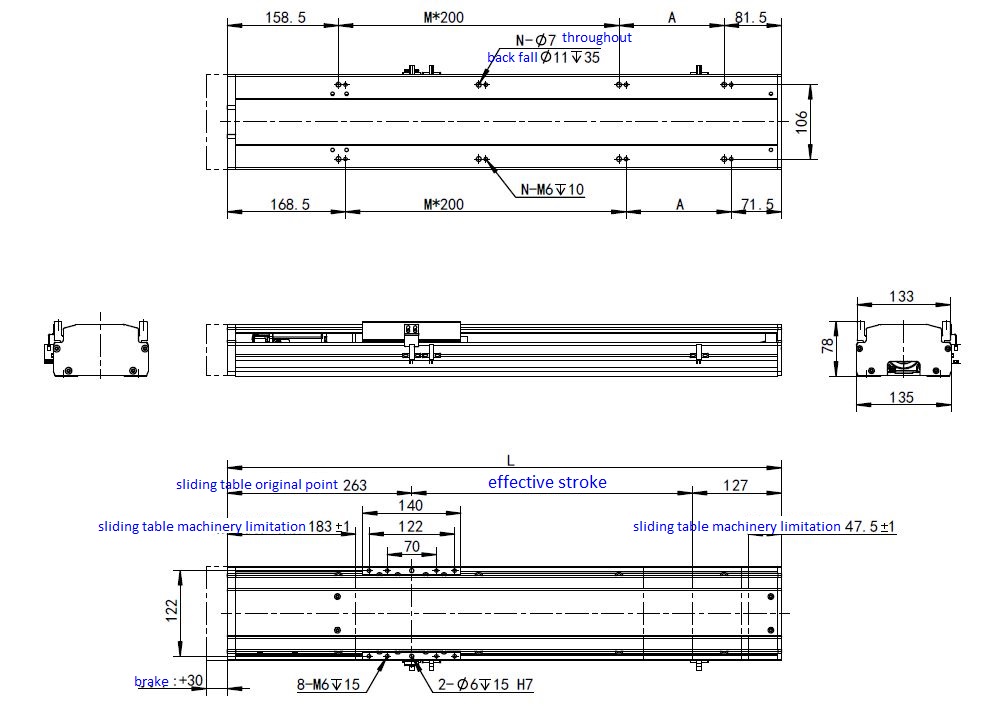

Motor Exposed

CNC Industry Linear Motor Stages HAN'S MOTOR

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	350.5	400.5	450.5	500.5	550.5	600.5	650.5	700.5	750.5	800.5	850.5	900.5	950.5	1000.5	1050.5	1100.5	1150.5	1200.5	1250.5	1300.5
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	9.3	9.85	10.4	10.95	11.5	12.05	12.6	13.15	13.7	14.25	14.8	15.35	15.9	16.45	17	17.55	18.1	18.65	19.2	19.75

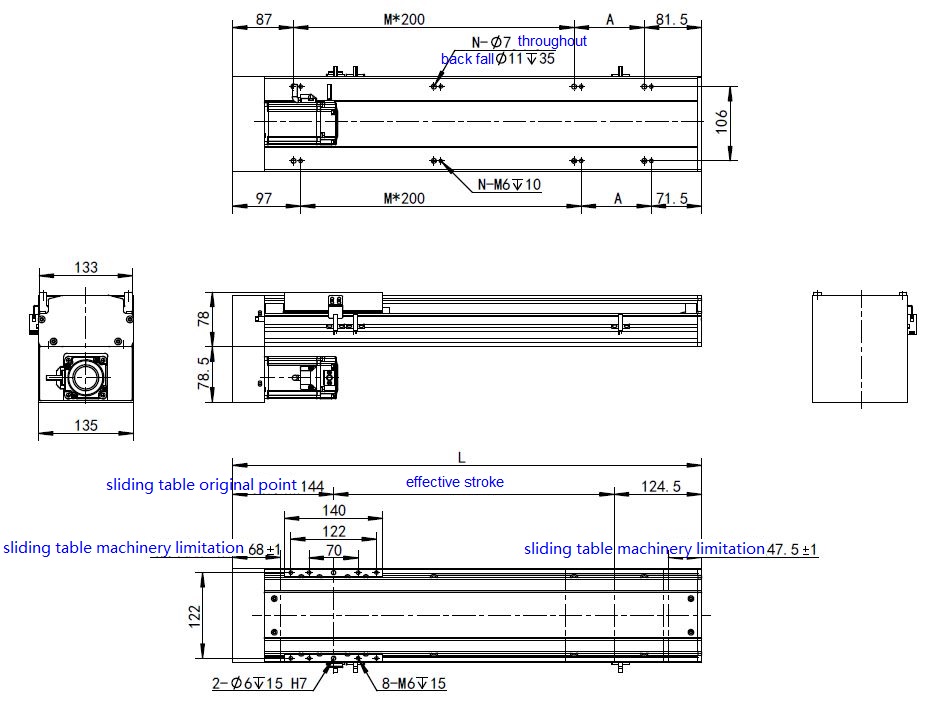

Motor Fold Down

CNC Industry Linear Motor Stages

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	368.5	418.5	468.5	518.5	568.5	618.5	668.5	718.5	768.5	818.5	868.5	918.5	968.5	1018.5	1068.5	1118.5	1168.5	1218.5	1268.5	1318.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	9.94	10.48	11.02	11.56	12.1	12.64	13.18	13.72	14.26	14.8	15.34	15.88	16.42	16.96	17.5	18.04	18.58	19.12	19.66	20.2

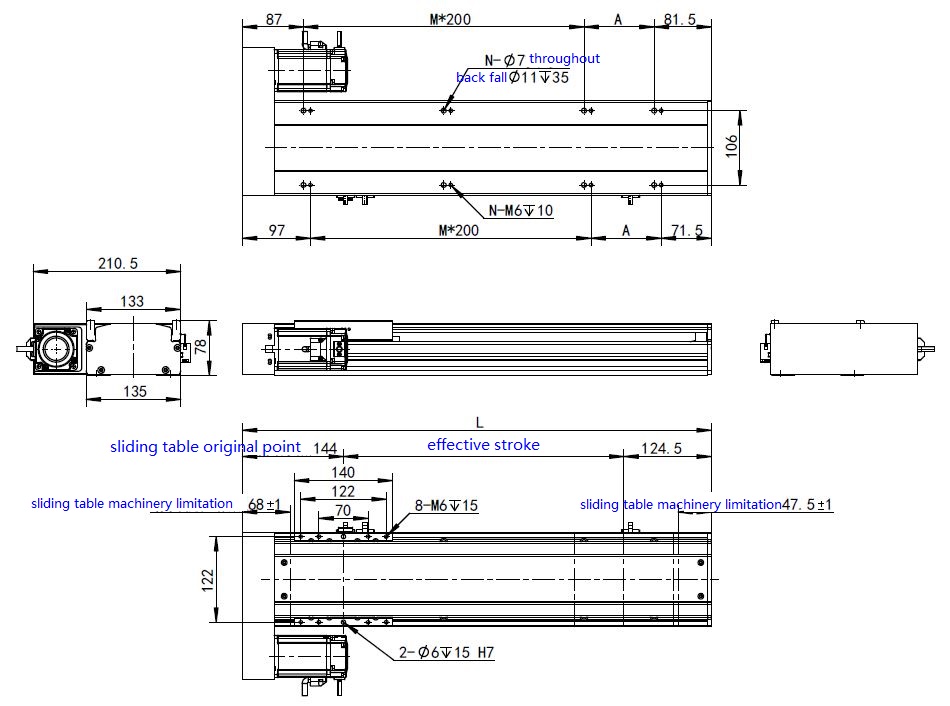

Motor Left Fold

HAN'S LASER CNC Industry Linear Motor Stages

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	368.5	418.5	468.5	518.5	568.5	618.5	668.5	718.5	768.5	818.5	868.5	918.5	968.5	1018.5	1068.5	1118.5	1168.5	1218.5	1268.5	1318.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	9.94	10.48	11.02	11.56	12.1	12.64	13.18	13.72	14.26	14.8	15.34	15.88	16.42	16.96	17.5	18.04	18.58	19.12	19.66	20.2

Motor Right Fold

High precision linear motion guide module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	368.5	418.5	468.5	518.5	568.5	618.5	668.5	718.5	768.5	818.5	868.5	918.5	968.5	1018.5	1068.5	1118.5	1168.5	1218.5	1268.5	1318.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	9.94	10.48	11.02	11.56	12.1	12.64	13.18	13.72	14.26	14.8	15.34	15.88	16.42	16.96	17.5	18.04	18.58	19.12	19.66	20.2

Characteristics:

1. This linear guide is semi-sealer structure, high stability, compact structure, versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

2. Customized motor is extremely stable, providing sufficient power and strong overload performance.

3. High quality ball screw for high positioning accuracy, high efficiency, small gap, high hardness and low friction.

4. Easy installation, mounting hole at the bottom, slidable nut design on the side, easy to install limit switch, origin switch and equipment fixing.
