Ball Screw High Precision Linear Guide For CNC Motion

Linear Guide Slide Table Ball Screw Motion Rail CNC Linear Guide Stage LSS120

High Precision Linear Motion Guide Module For 3D Printer Router Machine

Product description:

Effective Length:100-1050mm

Max. itinerary: 1050mm

Max. speed: 1600mm/s

Motor capacity: 400W

Balls crew: C7 Φ16mm

Linear slide: W15*H12.5--two pieces

Features:

1. Integrated design, high rigidity, durable, stable operation, quality assurance;

2. Fully enclosed dust-proof, convenient installation, stable performance;

3. Longer service life, high precision and high work efficiency.

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: High Precision Linear Motion Guide Module For 3D Printer Router Machine

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	20	32
	Max.velocity (mm/s)		250	500	1000	1600
	Max.conveyable weight	horizontal (kg)	85	65	32	20
		Vertical (kg)	25	21	10	6
	Ratedthrust (N)		625	312	200	156
	Standard stroke (mm)		100-1050mm
Parts	AC servo motor power (W)		400
	Ballscrew O.D （mm)		C7 Φ16
	Linear slide		W15*H12.5
	Coupling		Motor Φ14 * screwΦ10
	Original sensor	external hanging	EE-SX672 (NPN)
		build-in	EE-SX674 (NPN)

Sensor Connection Diagram <Origin and End Points>

CNC Ball Screw Module Linear Slide Module

Allowable load torque table N.m

CNC Ball Screw Module Linear Slide Module

Installation method:

(Unit: mm)

Horizontal installation		A	B	C
Lead 5	40kg	2448	316	322
	55kg	2197	247	257
	70kg	2005	207	219
Lead 10	25kg	1958	370	490
	35kg	1660	370	333
	47kg	1725	347	243
Lead 20	5kg	2265	1674	961
	10kg	1402	855	537
	30kg	1047	445	324
Lead 32	3kg	2263	1672	958
	16kg	1400	852	535
	24kg	1052	448	328

(Unit: mm)

Hanging installation		A	B	C
Lead 5	40kg	204	112	1394
	55kg	130	57	1115
	70kg	85	24	895
Lead 10	25kg	414	333	1277
	35kg	235	157	929
	47kg	129	57	751
Lead 20	10kg	461	372	1410
	20kg	264	178	1027
	30kg	148	69	832
Lead 32	8kg	997	1217	1709
	16kg	513	555	985
	24kg	268	231	640

(Unit: mm)

Vertical installation		A	C
Lead 5	8kg	762	614
	13kg	607	489
	17kg	498	483
Lead 10	5kg	1365	1101
	8kg	901	727
	12kg	674	543
Lead 20	2kg	2420	2031
	4kg	1690	1360
	6kg	1300	1050
Lead 32	3kg	1695	1361
	-	-	-
	-	-	-

Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

(Unit: mm)

MY	280
MP	280
MR	95

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	400	200	HSAL-A04FL-B0.2-C2	HANS-A-00323-P
Han's	H	Brake (Vertical )	400	200	HSAL-A04BL-B0.2-C2	HANS-A-00323-P
International	P	without brake (Horizontal )	400	200	MSMF042L1U2M	MADLN25SE
International	P	Brake (Vertical )	400	200	MSMF042L1U2M	MADLN25SE
Mitsubishi	M	without brake (Horizontal )	400	200	HF-KP43	MR-J3-40A
Mitsubishi	M	Brake (Vertical )	400	200	HF-KP43B	MR-J3-40A

Dimension

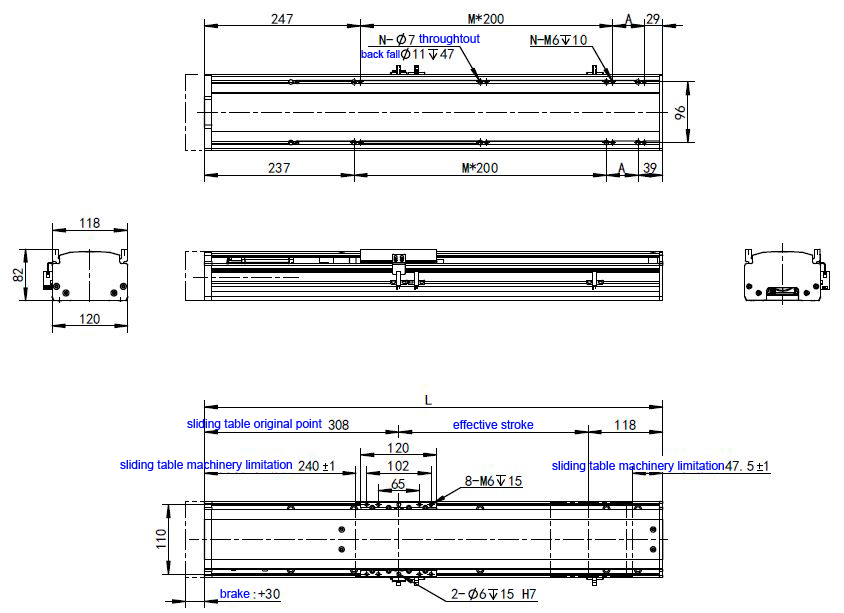

Motor Built-in

HAN'S MOTOR Ball Screw High Precision Linear Guide For CNC Motion

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	526	576	626	676	726	776	826	876	926	976	1026	1076	1126	1176	1226	1276	1326	1376	1426	1476
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	6.82	7.32	7.82	8.32	8.82	9.32	9.82	10.32	10.82	11.32	11.82	12.32	12.82	13.32	13.82	14.32	14.82	15.32	15.82	16.32

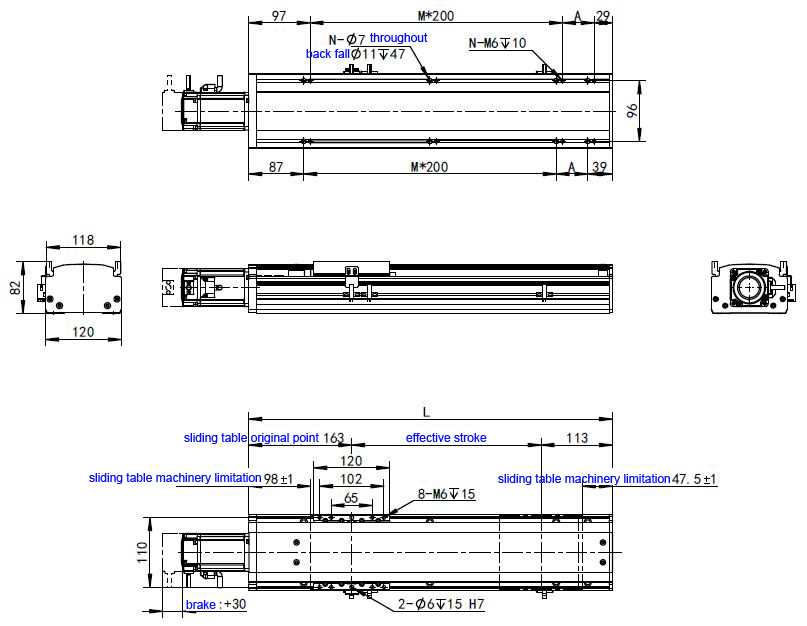

Motor Exposed

Ball Screw High Precision Linear Guide For CNC Motion

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	376	426	476	526	576	626	676	726	766	826	876	926	976	1026	1076	1126	1176	1226	1276	1326
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	6.11	6.61	7.11	7.61	8.11	8.61	9.11	9.61	10.11	10.61	11.11	11.61	12.11	12.61	13.11	13.61	14.11	14.61	15.11	15.61

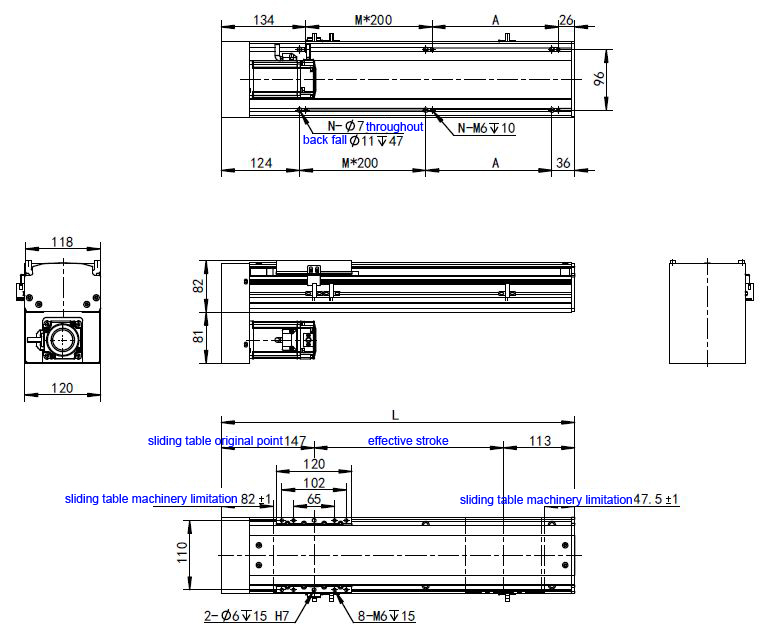

Motor Fold Down

Ball Screw High Precision Linear Guide For CNC Motion HAN'S LASER

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	360	410	460	510	560	610	650	710	760	810	860	910	960	1010	1060	1110	1160	1210	1260	1310
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	6.55	7.05	7.55	8.05	8.55	9.05	9.55	10.05	10.55	11.05	11.55	12.05	12.55	13.05	13.55	14.05	14.55	15.05	15.55	16.05

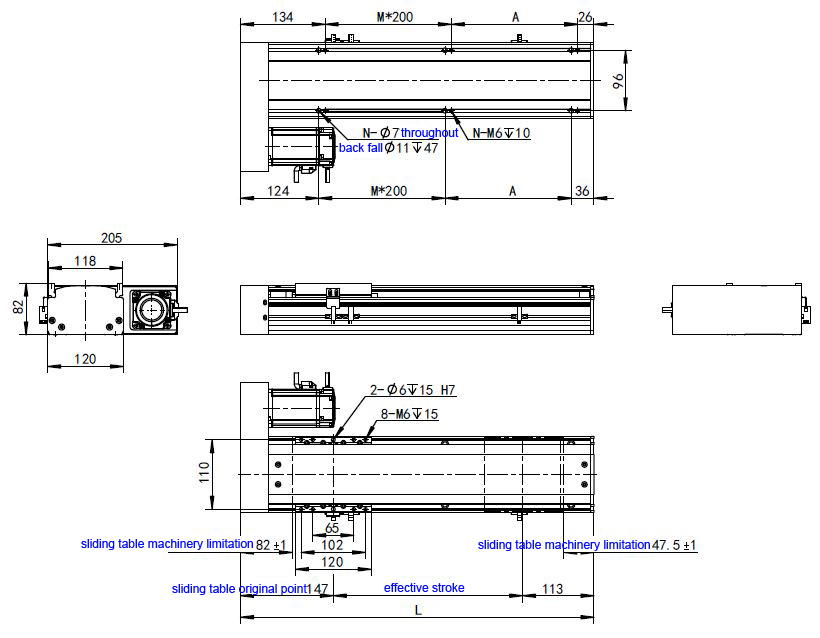

Motor Left Fold

Ball Screw High Precision Linear Guide For CNC Motion HAN'S LASER

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	360	410	460	510	560	610	650	710	760	810	860	910	960	1010	1060	1110	1160	1210	1260	1310
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	6.55	7.05	7.55	8.05	8.55	9.05	9.55	10.05	10.55	11.05	11.55	12.05	12.55	13.05	13.55	14.05	14.55	15.05	15.55	16.05

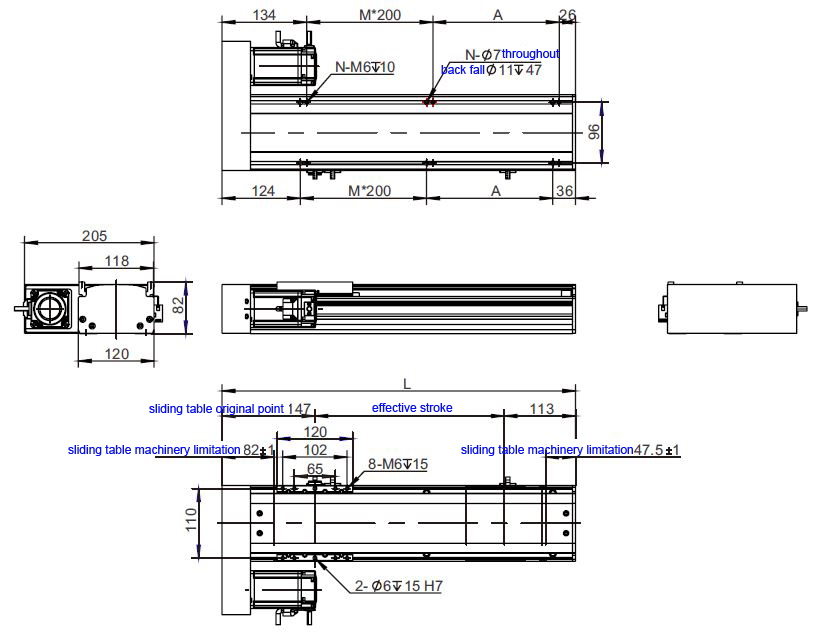

Motor Right Fold

HAN'S MOTOR Ball Screw High Precision Linear Guide For CNC Motion

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	360	410	460	510	560	610	650	710	760	810	860	910	960	1010	1060	1110	1160	1210	1260	1310
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	6.55	7.05	7.55	8.05	8.55	9.05	9.55	10.05	10.55	11.05	11.55	12.05	12.55	13.05	13.55	14.05	14.55	15.05	15.55	16.05

Characteristics:

(1) Product: Aluminium extrusion-processed profile;

(2) Material: Aluminium;

(3) Surface Finish: anodizing, polishing;

(4) Size: Small size and light weight same as drawings or samples, and customized;

(5) Standard Fully equipped: High-quality, high precision, high rigidity;

(6) Optimal design: Easy installation, robust, anti-corrosion, durable, and good heat-dissipation.

HAN'S MOTOR Linear Motor Module Related Products.:

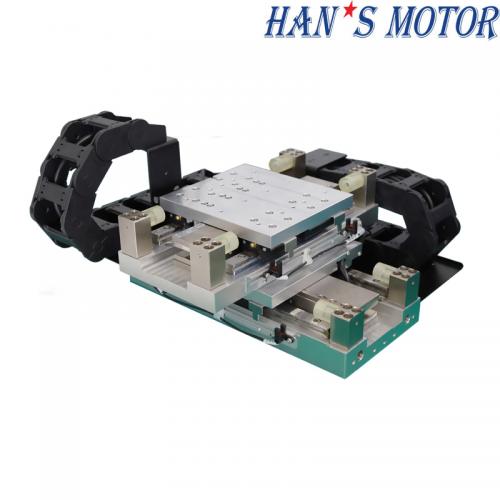

Ball Screw High Precision Linear Guide For CNC Motion

Company Information:

R&D Strengths.

Founded in 2005, led by returned talents for design and development of Direct Drive motor

and motion stage continuously for decades, with stable and expert R&D staff and experienced

production, sales, engineering service team.

And realized ISO 9001 standardization、advanced performance and excellent quality；

which can meet different customized requirements of direct drive products quickly.

China Best DDR motor Supplier

Our services.

One-stop Service: Custom Design, Fabrication, Assembly And Delivery

Pre-sale service: Free technical training, Quality assurance, Efficient service

HAN'S LASER China Best DDR motor Supplier

Applications:

Widely used in CNC machines, medical and food machinery, fitness machinery, packaging machinery, printing machinery, and other machinery supporting equipment.

Machining centers, injection machines, machine tools, punching machines, precision processing machines, automation devices, heavy-duty cutting machine tools, transportation equipment, marble cutting machines, measuring instruments, grinders etc.

HAN'S MOTOR China Best DDR motor Supplier

CNC Ball Screw Module Linear Slide Module

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity,

samples in stock will be delivered within 15 days and customized model will be delivered within 30 days.
