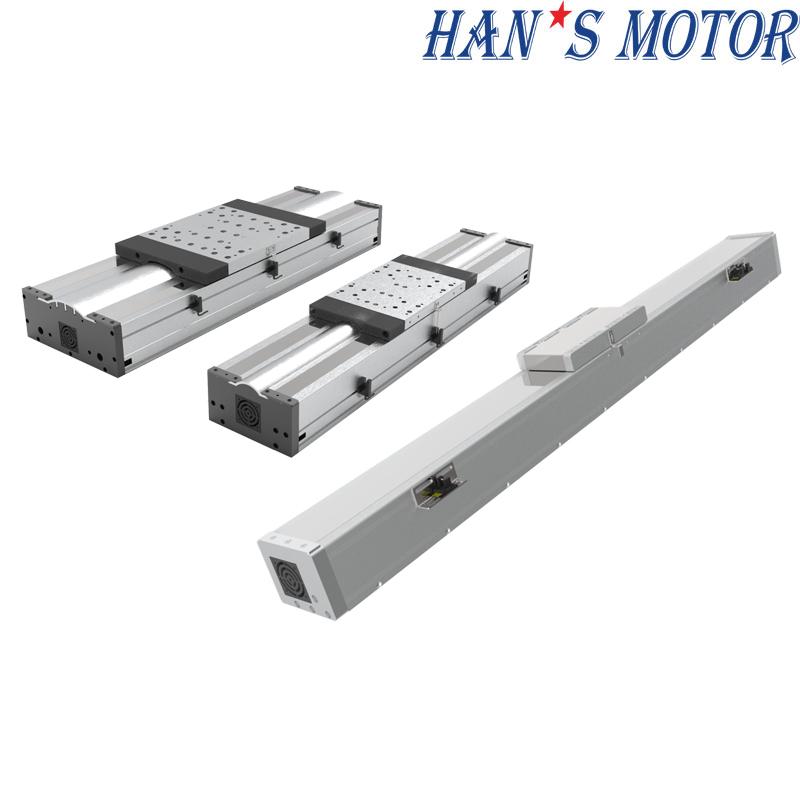

Precise positioning accuracy linear motor stage system

Features:

1. High precision 1μm, high acceleration 5G, high speed 5m/s;

2. Zero backlash error;

3. Allows multiple independent movers on the same axis;

4. Base width is 90mm, 135mm, 150mm, 170mm, 210mm, 230mm, 260mm and others for optional;

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: Precise positioning accuracy linear motor stage system （LMP230 Series )

Characteristics:

• The warranty period is 12 months

• Production capacity 10000 Pieces per month

• CE, RoHS and UL certification

• Free product manual and 3D model and a competitive price can be provided

• Module several types: miniature stages,single axis stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages

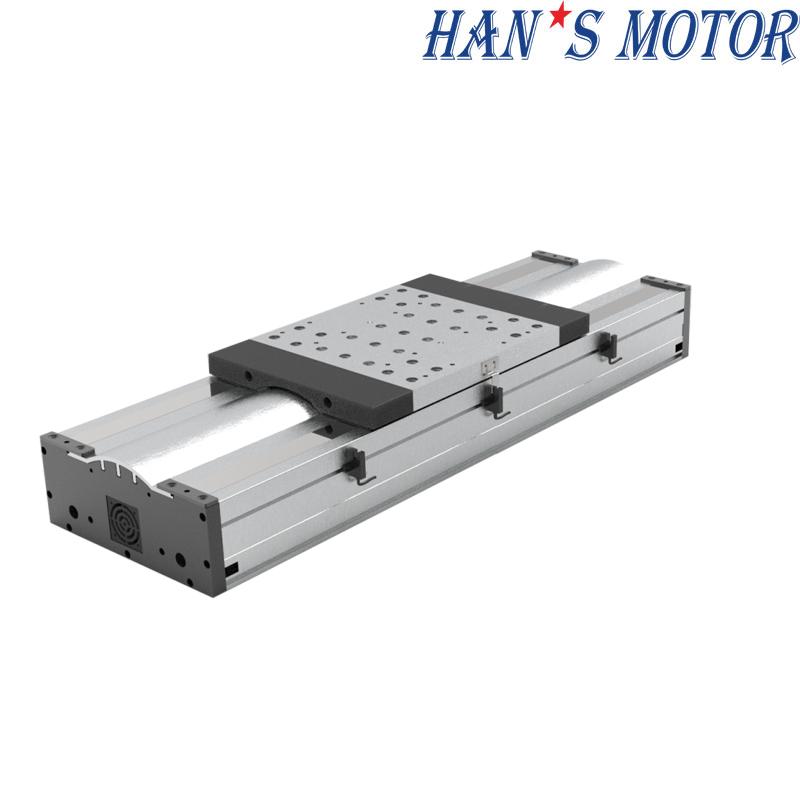

Precise positioning accuracy linear motor stage system

Product Specifications

Motor Model/Parameter

		Ironless Linear Motor				Iron Core Linear Motor
Parameter\ Motor Model	Unit	U53	U54	U55	U56	FJ22	FJ23	FL22	FL32	FL42	FL23	FL33	FL43
Continuous Force (Tmax）	N	168	224	280	336	208	332	196	294	392	314	472	629
Peak Force	N	936	1248	1560	1872	831	1329	517	776	1035	827	1237	1653
Motor Constant	N//SqrtW	15	17.4	19.4	21.3	27.5	24.4	18.9	23.4	27.2	25.3	31	36.2
Max.Continuous Power Dissipation	W	125	166.6	208.3	250	57.1	184.8	107.5	157.9	208.3	154.6	231.8	302.4
Continuous Current (Tmax）	Arms	2.3	2.3	2.3	2.3	2.2	4.4	4	4	4	4	4	4
Peak Current (1S)	Arms	13	13	13	13	9	18	12	12	12	12	12	12
Force Constant (25℃，±5%）	N/Arms	73	96	120	144	94.8	75.6	49	73.5	98	78.5	118	157
Back EMF Constant (25℃，±5%）	Vrms/rad/s	24.3	32	40	48	31.6	25.2	16.3	24.5	32.7	26	39.3	52.4
Electrical Resistance(25℃，±5%）P-P	Ω	11.25	15	18.75	22.5	11.8	4.5	3.2	4.7	6.2	4.6	6.9	9
Inductance(25℃，±20%）P-P	mH	10.5	14	17.5	21	40	15.3	15	22.5	30	24	36	48
Max Coil Temperature	℃	120	120	120	120	120	120	120	120	120	120	120	120
Polar Distance (N-N) (360℃ Electrical cycle)	mm	60	60	60	60	20	20	20	20	20	20	20	20
Magnetic Attraction	KN	0	0	0	0	1.23	1.82	1.1	1.6	2.1	1.7	2.6	3.4
Mover Mass	Kg	1	1.3	1.65	2	1.7	2.4	2.5	3.7	4.9	3.8	5.5	7.3

Linear Motor Stages Selection

LMP230-U53-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	420	520	620	720	820	920	1020	1120	1220	1320	1420	1520
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	23	27	31	35	39	43	47	51	55	59	63	67
Sliding Table M (mm)	250
A	8
B	1
Motion Parts Weight (kg)	7

LMP230-U54-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	470	570	670	770	870	970	1070	1170	1270	1370	1470	1570
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	26	30	34	38	42	46	50	54	58	62	66	70.0
Sliding Table M (mm)	300
A	16
B	2
Motion Parts Weight (kg)	8.5

LMP230-U55-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	18	18	22	22	26	26	30	30	34	34
N	1	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	390	630	730	830	930	1030	1130	1230	1330	1430	1530	1630
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	11.5	34	38	42	46	50	54	58	62	66	70	74.0
Sliding Table M (mm)	360
A	16
B	2
Motion Parts Weight (kg)	10

LMP230-U56-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	18	18	22	22	26	26	30	30	34	34	38
N	2	3	3	4	4	5	5	6	6	7	7	8
Stage Total Length (mm)	590	690	790	890	990	1090	1190	1290	1390	1490	1590	1690
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	34	38	42	46	50	54	58	62	66	70	74	78.0
Sliding Table M (mm)	420
A	24
B	3
Motion Parts Weight (kg)	3.8

LMP230-FJ22-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	420	520	620	720	820	920	1020	1120	1220	1320	1420	1520
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	22.4	25.6	28.8	32	35.2	38.4	41.6	44.8	48	51.2	54.4	57.6
Sliding Table M (mm)	280
A	8
B	1
Motion Parts Weight (kg)	9

LMP230-FJ23-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	450	550	650	750	850	950	1050	1150	1250	1350	1450	1550
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	24.6	27.8	31	34.2	37.4	40.6	43.8	47	50.2	53.4	56.6	59.8
Sliding Table M (mm)	280
A	8
B	1
Motion Parts Weight (kg)	10.4

LMP230-FL22-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	510	610	710	810	910	1010	1110	1210	1310	1410	1510	1610
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	29.1	32.3	35.5	38.7	41.9	45.1	48.3	51.5	54.7	57.9	61.1	64.3
Sliding Table M (mm)	340
A	16
B	2
Motion Parts Weight (kg)	13.2

Industry Applications:

Long stroke, high speed, high response single-axis motor modules which apply to laser welding machine, laser cutting machine, laser marking machine, carbon dioxide(CO₂) , light sorce applications.

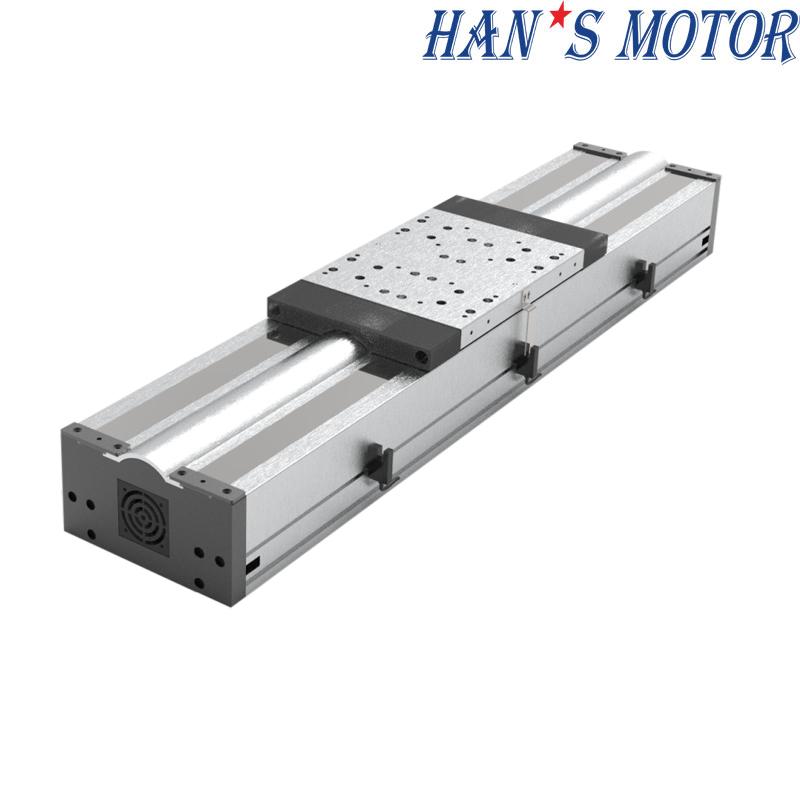

linear motor stage system

Packaging & Delivery:

Packaging Details.: plywood packing/Cantainer

Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 15-20 days for trial order and 30-45 days for bulk order
