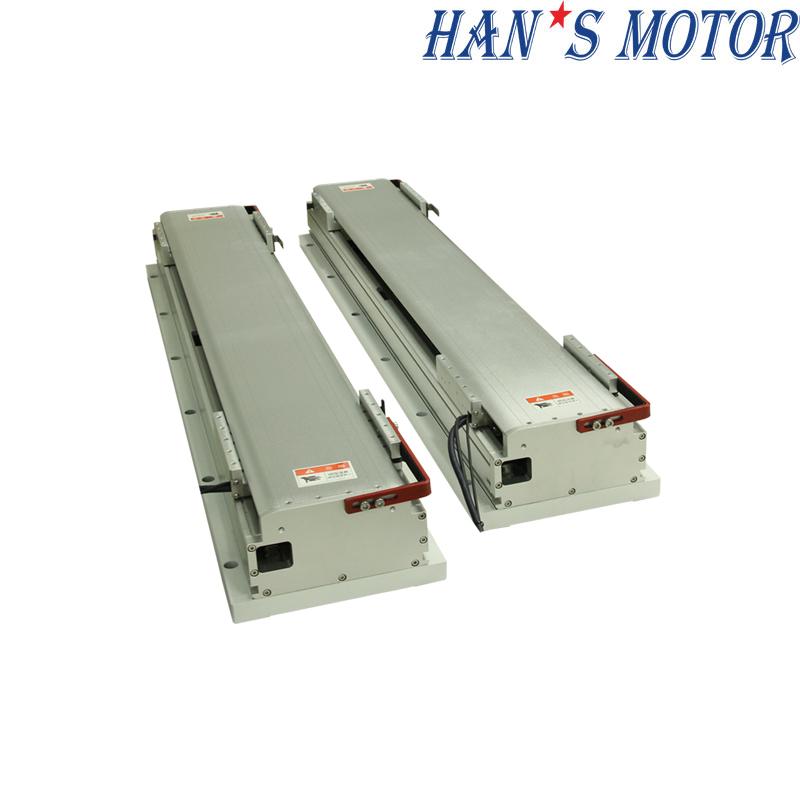

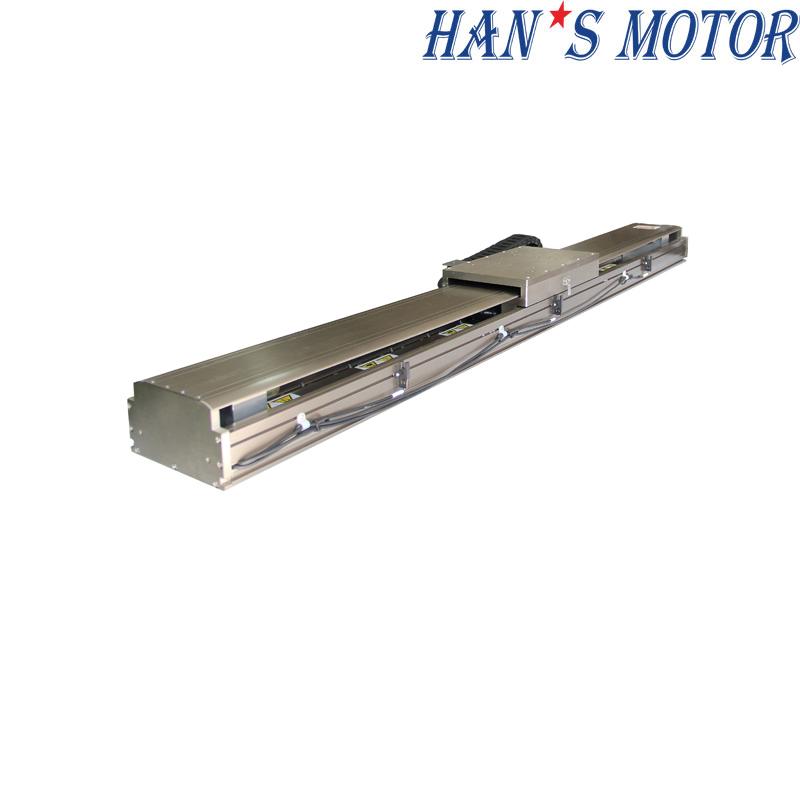

Products Name: Moving magnet linear motor stages for photovoltaic industry（LM210 Series)

Characteristics:

• Standard linear motor modules

• It can realize single-axis multi-mover to drive, the longest stroke can reach 2500mm

• Grating Positioning, Magnetic Grating Positioning or Time Grating Positioning

• warranty period is 1 year

Linear Motor Stages type:

Moving magnet linear motor stages for photovoltaic industry

Product Specifications

Motor Model/Parameter

		Flat-type Motor				U-type Motor
Parameter\ Motor Model	Unit	FJ23	FL23	FL33	FL43	U53	U54	U55	U56
Continuous Force (Tmax）	N	332	314	472	629	168	224	280	336
Peak Force	N	1329	827	1237	1653	936	1248	1560	1872
Motor Constant	N//SqrtW	24.4	25.3	31	36.2	15	17.3	19.4	21.3
Max.Continuous Power Dissipation	W	184.8	154.6	231.8	302.4	125	166.6	208.3	250
Continuous Current (Tmax）	Arms	4.4	4	4	4	2.3	2.3	2.3	2.3
Peak Current (1S)	Arms	18	12	12	12	13	13	13	13
Force Constant (25℃，±5%）	N/Arms	75.6	78.5	118	157	73	96	120	144
Back EMF Constant (25℃，±5%）	Vrms/rad/s	25.2	26	39.3	52.4	24.3	32	40	48
Electrical Resistance(25℃，±5%）P-P	Ω	4.5	4.6	6.9	9	11.25	15	18.75	22.5
Inductance(25℃，±20%）P-P	mH	15.3	24.0	36.0	48	10.5	14	17.5	21
Max Coil Temperature	℃	120	120	120	120	120	120	120	120
Polar Distance (N-N) (360℃ Electrical cycle)	mm	20	20	20	20	60	60	60	60
Magnetic Attraction	KN	1.82	1.7	2.6	3.4	0	0	0	0
Mover Mass	Kg	2.4	3.8	5.5	7.3	1	1.3	1.65	2

Linear Motor Stages Selection

LM210-FJ23-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	420	520	620	720	820	920	1020	1120	1220	1320	1420	1520
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	12.3	14.1	16.0	17.8	19.6	21.5	23.3	25.1	27.0	28.9	30.6	32.5
Sliding Table M (mm)	200
A	8
B	3
Motion Parts Weight (kg)	3.5

LM210-FL23-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	390	490	590	690	790	890	990	1090	1190	1290	1390	1490
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	10.9	12.8	14.7	16.5	18.3	20.2	22.0	23.9	25.8	27.5	29.4	31.3
Sliding Table M (mm)	170
A	8
B	3
Motion Parts Weight (kg)	2.8

LM210-FL33-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	450	550	650	750	850	950	1050	1150	1250	1350	1450	1550
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	13	14.9	16.8	18.6	20.4	22.2	24.1	26	27.7	29.6	31.5	33.2
Sliding Table M (mm)	230
A	12
B	5
Motion Parts Weight (kg)	3.7

LM210-FL43-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	520	620	720	820	920	1020	1120	1220	1320	1420	1520	1620
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	15.4	17.3	19.2	20.9	22.8	24.7	26.4	28.3	30.2	31.9	33.8	35.7
Sliding Table M (mm)	300
A	16
B	7
Motion Parts Weight (kg)	4.8

LM210-U53-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	410	510	610	710	810	910	1010	1110	1210	1310	1410	1510
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	16.8	20	23.2	26.4	29.6	32.8	36.0	39.2	42.4	45.6	48.8	52.0
Sliding Table M (mm)	190
A	8
B	3
Motion Parts Weight (kg)	5

LM210-U54-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	470	470	670	770	870	970	1070	1170	1270	1370	1470	1570
Dowel Pin D1 (mm)	50	50	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	20	20	26.4	29.6	32.8	36	39.2	42.4	45.6	48.8	52.0	55.2
Sliding Table M (mm)	250
A	12
B	5
Motion Parts Weight (kg)	5.5

LM210-U55-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	530	630	730	830	930	1030	1130	1230	1330	1430	1530	1630
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	23.5	26.8	30.1	33.4	36.7	40	43.3	46.6	49.9	53.2	56.5	59.8
Sliding Table M (mm)	310
A	16
B	7
Motion Parts Weight (kg)	6.5

LM210-U56-xxx-xxx-A
Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	18	18	22	22	26	26	30	30	34	34	38
N	2	3	3	4	4	5	5	6	6	7	7	8
Stage Total Length (mm)	590	690	790	890	990	1090	1190	1290	1390	1490	1590	1690
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	27.0	30.3	33.6	36.9	40.2	43.5	46.8	50.1	53.4	56.7	60.0	63.3
Sliding Table M (mm)	370
A	16
B	7
Motion Parts Weight (kg)	7.5
