Stages with Magnetic Direct-Drive Linear Motor

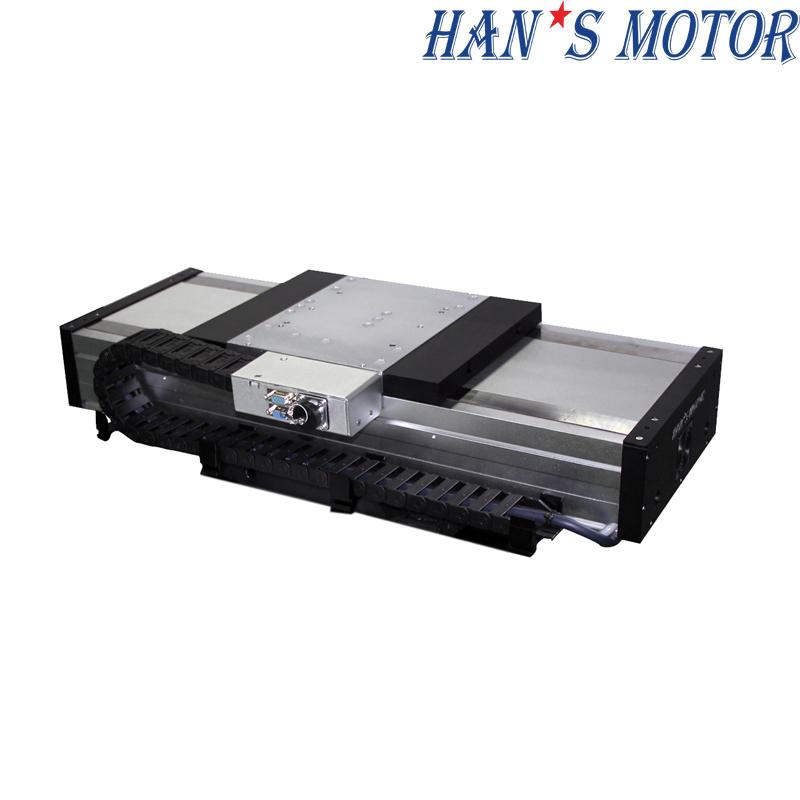

100-1200mm effective travel full protected linear motor stage with coreless motor, THK guide

Features：

1. Full protect shell, suitable for cleanroom environment

2. Driven by linear motor, the mover and stator operates without contact

3. High precision, high acceleration, high moving speed

4. Repeatability accuracy up to ±2um (within any 500mm stroke)

5. Allows multiple independent movers on the same axis

6. The maximum moving speed is more than 5m

7. Quickly assemble to XY cross stages and gantry stages

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Product name：100-1200mm effective travel full protected linear motor stage with coreless motor, THK guide

Reference-class linear stage

High travel accuracy. Inductive limit switches. High position resolution due to Renishaw RESA absolute grating. Matched with SERVOTRONIX servo drive, the repeated positioning accuracy is higher after compensation. Fully closed protective enclosure, used in the environment demanding occasions, such as clean, anti-dust, oil, corrosion and so on.

Linear motors

Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Application fields

Micromanipulation, automation, biotechnology, sample manipulation, sample positioning, applications with limited space and so on.

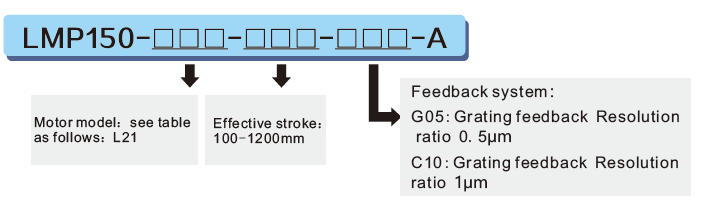

Selection Guide

Stages with Magnetic Direct-Drive Linear Motor

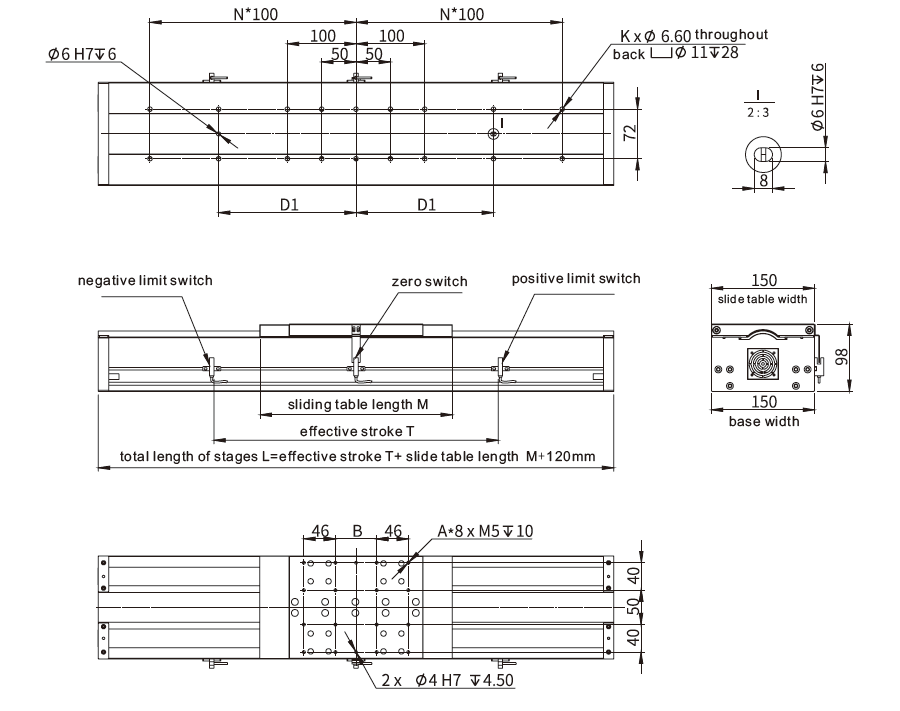

Dimensions

Stages with Magnetic Direct-Drive Linear Motor

Motor Model And Specifications

		coreless motor		iron core motor
Parameter\Motor Model	Units	U74	U78	FL21	FL31	FL41	FJ21
Continuous Force (Tmax）	N	28.8	57.5	118	176	236	125
Peak Force	N	144	288	314	466	628	498
Motor Constant	N//SqrtW	4.7	6.6	13.1	16.5	19.4	13.6
Max.Continuous Power Dissipation	W	38.2	76.3	80.6	114.2	147.8	84.2
Continuous Current (Tmax）	Arms	1.15	1.15	4	4	4	4
Peak Current (1S)	Arms	5.8	5.8	12	12	12	12
Force Constant (25℃，±5%）	N/Arms	25	50	29.5	44	59	56.8
Back EMF Constant (25℃，±5%）	Vrms/rad/s	8.2	16.4	9.8	14.7	19.7	18.8
Resistance(25℃，±5%）P-P	Ω	12.8	25.6	2.4	3.4	4.4	8.2
Inductance(25℃，±20%）P-P	mH	3.2	6.4	9	13.5	18	26
Max Coil Temperature	℃	120	120	120	120	120	120
Polar Distance (N-N)	mm	30	30	20	20	20	20
Magnetic Attraction	KN	0	0	0.68	0.98	1.3	0.75
Mover Mass	Kg	0.23	0.46	1.6	2.3	3.1	1

LMP150-U74-□□□-□□□-A:

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	360	360	560	660	760	860	960	1060	1160	1260	1360	1460
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	12.4	13.6	14.8	16.0	17.2	18.4	19.6	20.8	22.0	23.2	24.4	256
Sliding Table M (mm)	190
A	1
B	50
Motion Parts Weight (kg)	3.6

LMP150-U78-□□□-□□□-A:

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	470	570	670	770	870	970	1070	1170	1270	1370	1470	1570
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	12.6	13.8	15.0	16.2	17.4	18.6	19.8	21.0	22.2	23.4	24.6	25.8
Sliding Table M (mm)	300
A	2
B	70
Motion Parts Weight (kg)	5.2

LMP150-FL21□□□-□□□-A:

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	390	490	590	690	790	890	990	1090	1190	1290	1390	1490
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	11.5	12.7	13.9	15.1	16.3	17.5	18.7	19.9	21.1	22.3	23.5	24.7
Sliding Table M (mm)	220
A	1
B	50
Motion Parts Weight (kg)	4.0

LMP150-FL31□□□-□□□-A:

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	450	550	650	750	850	950	1050	1150	1250	1350	1450	1550
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	13.2	14.4	15.6	16.8	18.0	19.2	20.4	21.6	22.8	24.0	25.2	26.4
Sliding Table M (mm)	280
A	2
B	60
Motion Parts Weight (kg)	4.8

LMP150-FL41□□□-□□□-A:

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	14	14	18	18	22	22	26	26	30	30	34	34
N	2	2	3	3	4	4	5	5	6	6	7	7
Stage Total Length (mm)	520	620	720	820	920	1020	1120	1220	1320	1420	1520	1620
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	14.7	15.9	17.1	18.3	19.5	20.7	21.9	23.1	24.3	25.5	26.7	27.9
Sliding Table M (mm)	350
A	2
B	90
Motion Parts Weight (kg)	6.0

LMP150-FJ21□□□-□□□-A:

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	10	14	14	18	18	22	22	26	26	30	30	34
N	1	2	2	3	3	4	4	5	5	6	6	7
Stage Total Length (mm)	390	490	590	690	790	890	990	1090	1190	1290	1390	1490
Dowel Pin D1 (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Stage Weight (kg)	11.5	12.7	13.9	15.1	16.3	17.5	18.7	19.9	21.1	22.3	23.5	24.7
Sliding Table M (mm)	220
A	1
B	50
Motion Parts Weight (kg)	4.0

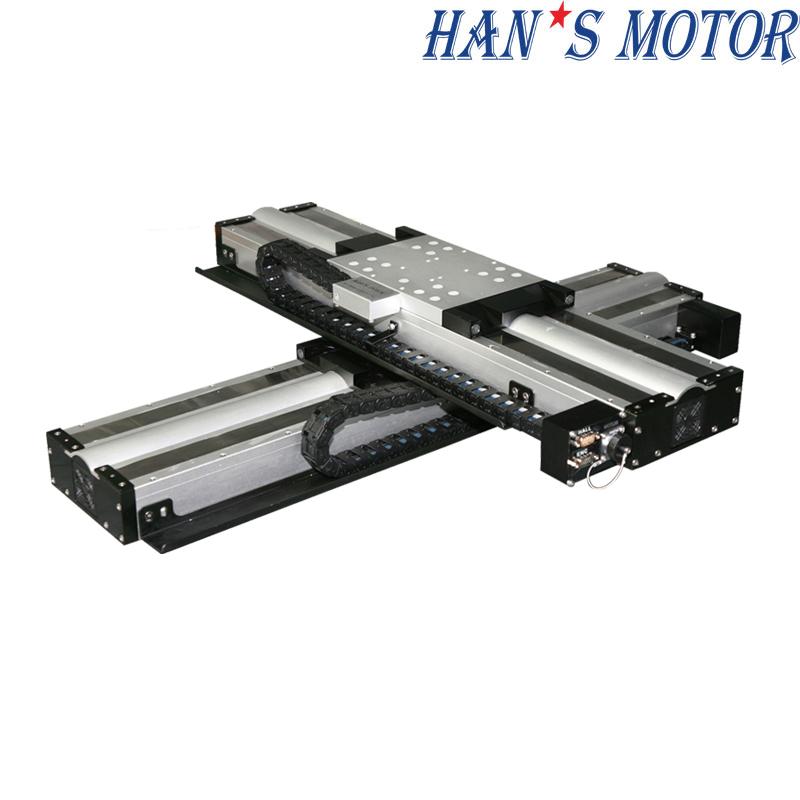

Related Stages Show：
