Features：
1. Low cogging effect
2. High thrust, high rigidity
2. Water cooling/Natureal cooling structure
3. Standardization, modularization, high reliability
5. Customizable development
Brand:
HAN'S MOTOROrder(MOQ):

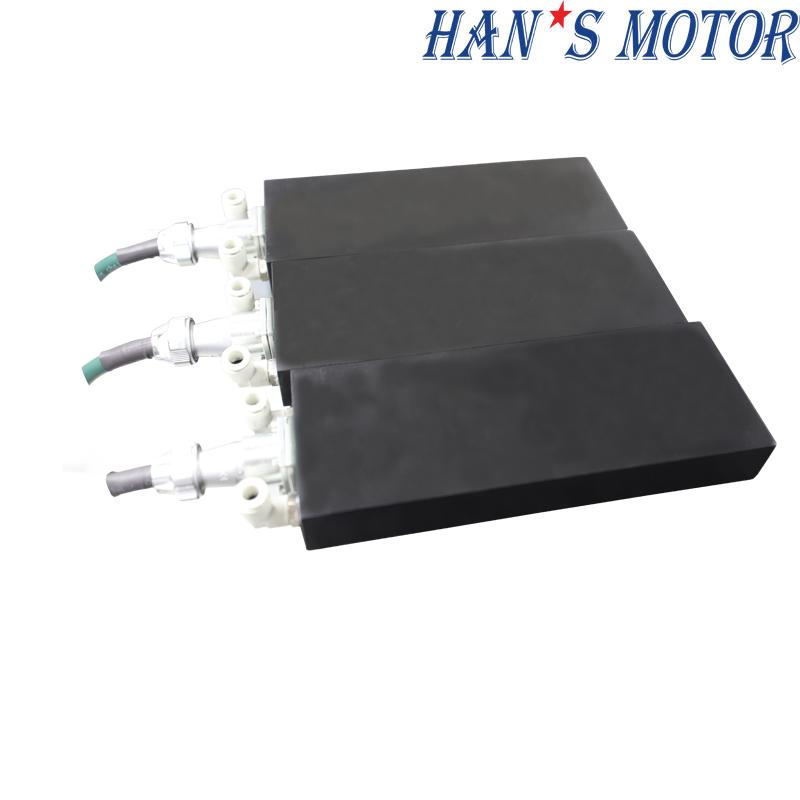

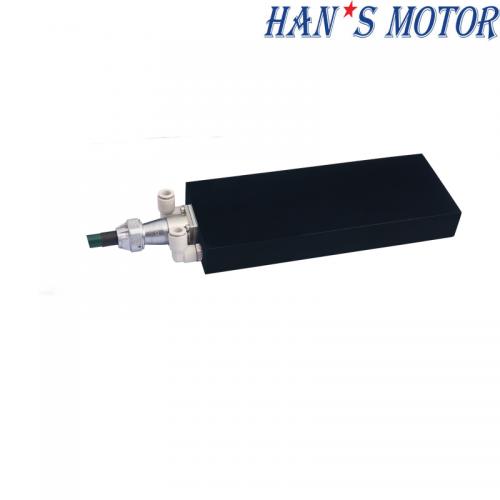

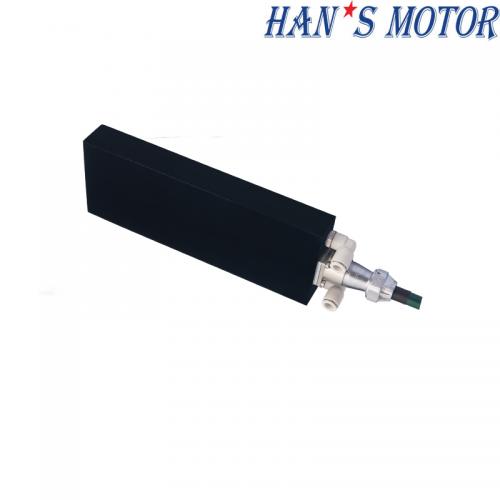

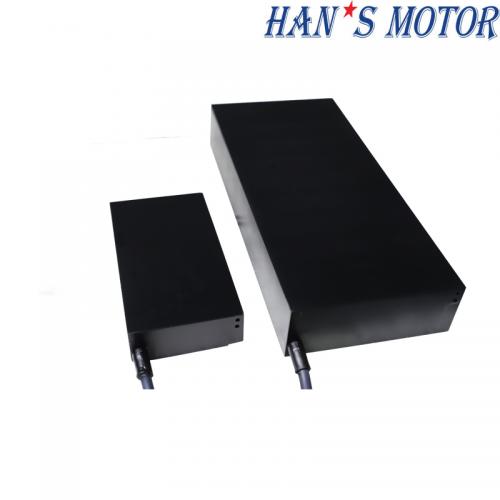

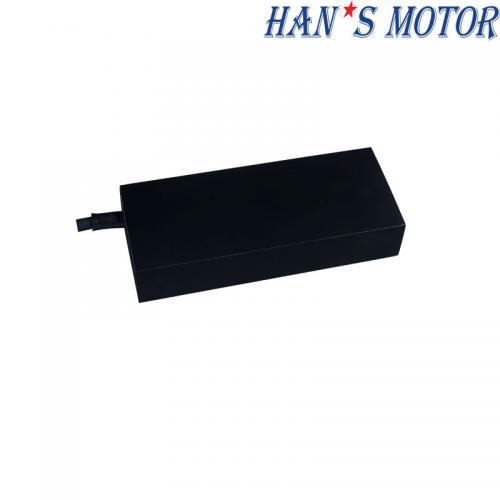

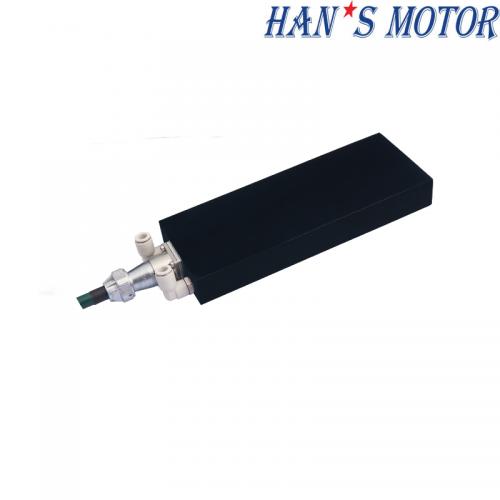

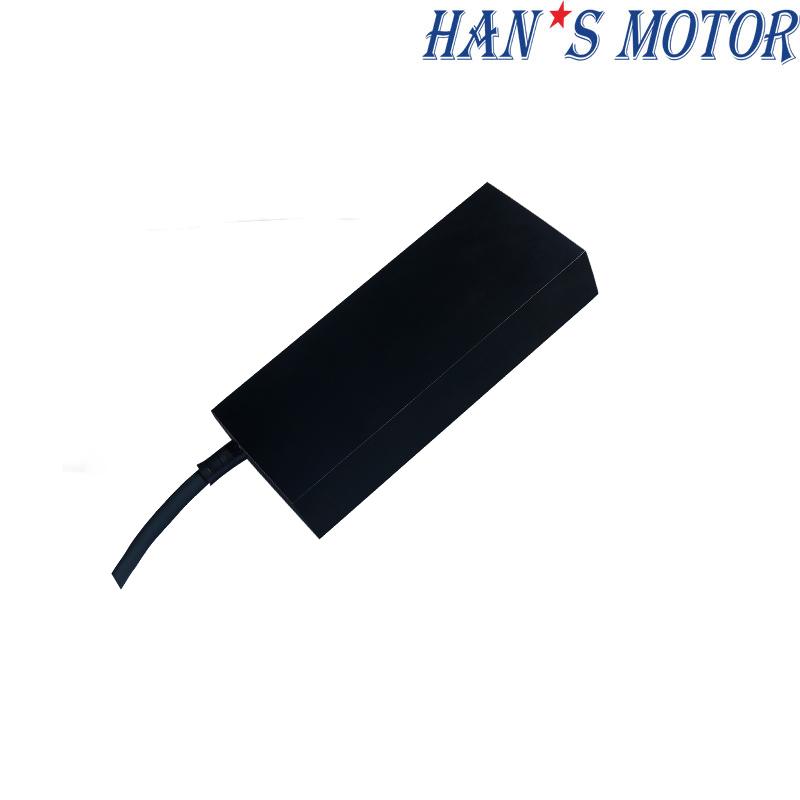

1Product name: Iron Core Linear Motor LSMFL-100 Continuous Thrust 629 ~ 1653N Linear Engines
Specifications
|
Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5 |
|
|
103A-S |
103B-S |
203A-S |
303A-S |
303B-P |
403A-S |
403A-P |
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Series |
Series |
Parallel |
Series |
Parallel |
|
Continuous Force (Tmax） |
Fc |
N |
157 | 157 | 314 | 472 | 472 | 629 | 629 |
|
Peak Force |
Fp |
N |
413 | 413 | 827 | 1237 | 1237 | 1653 | 1653 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
21.7 | 21.4 | 30.0 | 37.3 | 36.9 | 43.3 | 43.3 |
|
Max.Continuous Power Dissipation |
Pc | W | 72 | 74 | 150 | 220 | 225 | 290 | 290 |
|
Continuous Current (Tmax） |
Ic |
Arms |
4.0 | 2.6 | 4.0 | 4.0 | 7.8 | 4.0 | 8.0 |
|
Peak Current (1S) |
Ip |
Arms |
12.0 | 7.8 | 12.0 | 12.0 | 23.4 | 12.0 | 24.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
39.0 | 60.4 | 78.5 | 118.0 | 60.5 | 157.0 | 78.6 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
13.0 | 20.1 | 26.0 | 39.3 | 20.0 | 52.4 | 26.2 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
2.2 | 5.3 | 4.4 | 6.7 | 1.8 | 8.8 | 2.2 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
12.0 | 29.0 | 24.0 | 36.0 | 9.7 | 48.0 | 12.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 | 120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
20 | 20 | 20 | 20 | 20 | 20 | 20 |
|
Magnetic Attraction |
Fa |
kN |
0.9 | 0.9 | 1.7 | 2.6 | 2.6 | 3.4 | 3.4 |
|
Max.DC Bus Voltage |
Ubus |
V |
600 | 600 | 600 | 600 | 600 | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
7.9 | 5.0 | 3.7 | 2.4 | 4.9 | 1.7 | 3.7 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
4.4 | 2.6 | 1.9 | 1.1 | 2.6 | 0.6 | 1.9 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
9.6 | 6.2 | 4.7 | 3.1 | 6.2 | 2.3 | 4.7 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
14.1 | 8.9 | 6.8 | 4.4 | 8.9 | 3.2 | 6.8 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
7.9 | 4.9 | 3.7 | 2.3 | 4.9 | 1.6 | 3.7 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
16.7 | 10.8 | 8.3 | 5.5 | 10.8 | 4.1 | 8.3 |
|
Mover Mass |
Mp |
Kg |
2.0 | 2.0 | 3.8 | 5.5 | 5.5 | 7.3 | 7.3 |
|
Stator Mass within unit length |
Ms |
Kg/m |
7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |

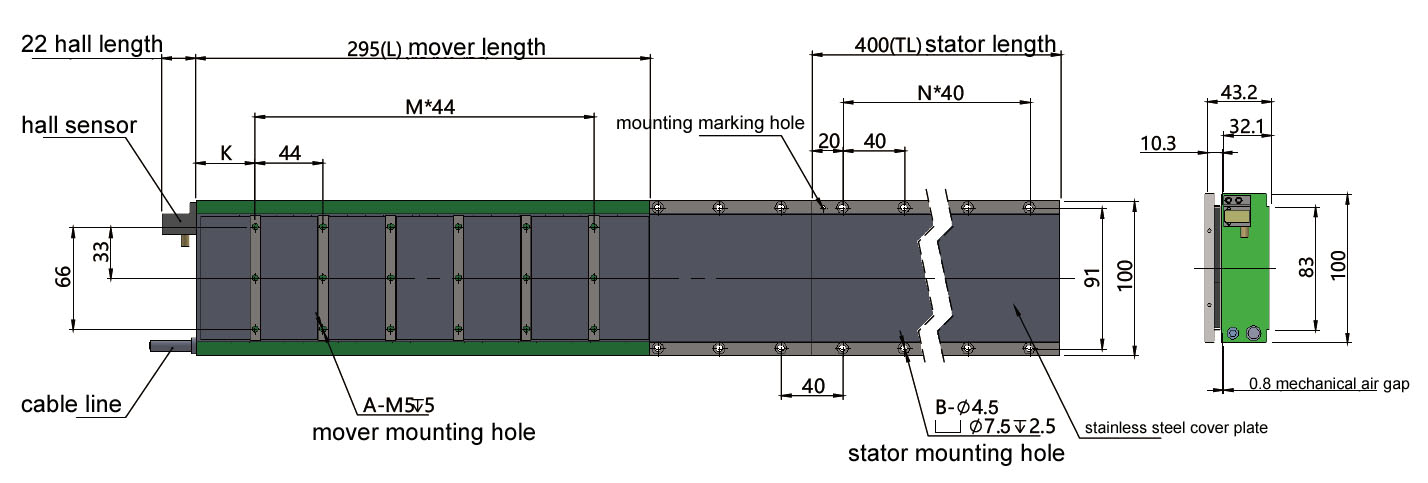

Dimension
| Mover Length | ||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
k |
|
LSMFL10103A-S-H-NC-N-C00.5 |
85 | 1 | 6 |
21.5 |
|
LSMFL10103B-S-H-NC-N-C00.5 |
85 | 1 | 6 | 21.5 |
|
LSMFL10203A-S-H-NC-N-C00.5 |
155 | 2 | 9 | 34.5 |
|
LSMFL10303A-S-H-NC-N-C00.5 |
225 | 4 | 15 | 25.5 |
| LSMFL10303B-P-H-NC-N-C00.5 | 225 | 4 | 15 | 25.5 |
|
LSMFL10403A-S-H-NC-N-C00.5 |
295 | 5 | 18 | 38.5 |
|
LSMFL10403A-P-H-NC-N-C00.5 |
295 | 5 | 18 | 38.5 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
| LSMFJ2A-W100-L40 | 40 | 0 | 2 |
| LSMFJ2A-W100-L80 | 80 | 1 | 4 |
|
LSMFJ2A-W100-L200 |
200 | 4 | 10 |
|
LSMFJ2A-W100-L320 |
320 | 7 | 16 |
|
LSMFJ2A-W100-L400 |
400 | 9 | 20 |
Suitable for any mover of this series.
