Features：
1. Core, low cogging effect
2. High thrust, high rigidity
3. High precision, high speed, high acceleration
4. Low noise, simple structure, low maintenance cost
Brand:
HAN'S MOTOROrder(MOQ):

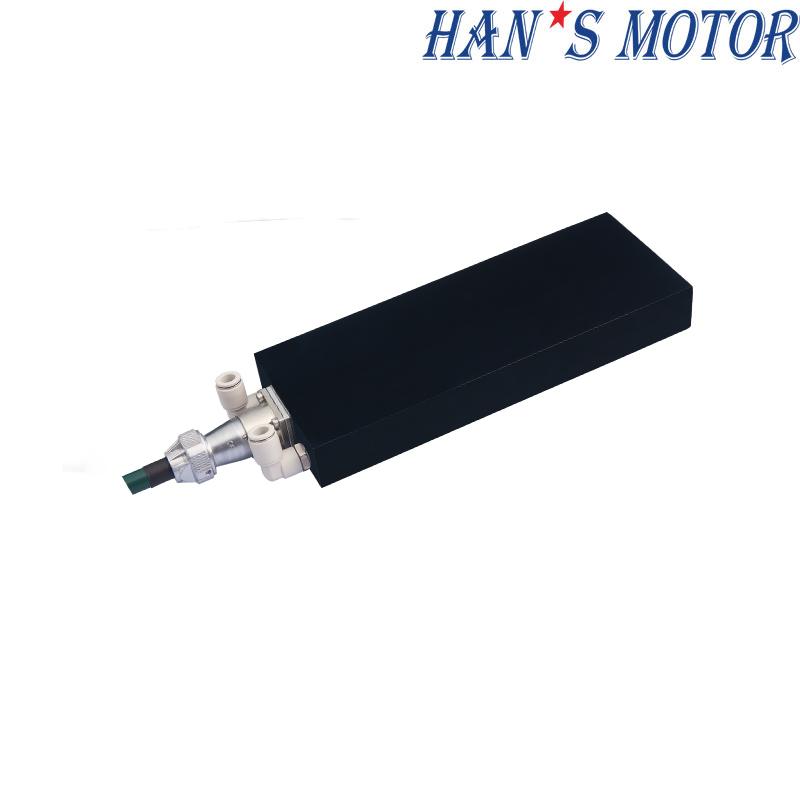

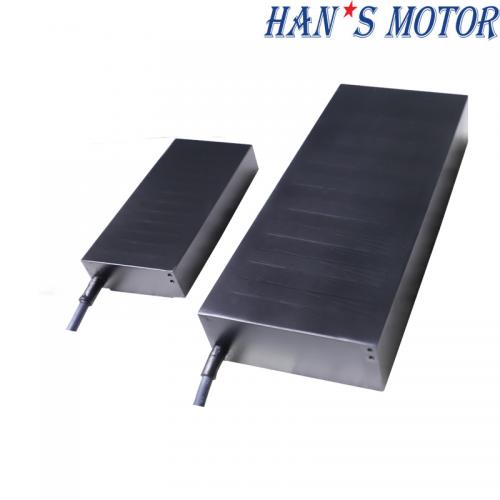

1Product name：Permanent synchronous iron core linear motor LSMFL-50 For AOI optical inspection
Specifications
|
Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5 |
101A-S |
101B-S |
201A-S |
201B-S |
301A-S |
401A-S | ||
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Series |
Series |
Series |
Series |
|
Continuous Force (Tmax） |
Fc |
N |
59 | 59 | 118 | 118 | 176 | 236 |
|
Peak Force |
Fp |
N |
157 | 157 | 314 | 314 | 466 | 628 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
11.5 | 11.7 | 16.3 | 16.3 | 20.1 | 23.5 |
|
Max.Continuous Power Dissipation |
Pc | W | 36 | 35 | 72 | 72 | 105 | 138 |
|
Continuous Current (Tmax） |
Ic |
Arms |
4.0 | 2.6 | 4.0 | 2.6 | 4.0 | 4.0 |
|
Peak Current (1S) |
Ip |
Arms |
12.0 | 7.8 | 12.0 | 7.8 | 12.0 | 12.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
14.8 | 22.7 | 29.5 | 45.4 | 44.0 | 59.0 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
4.9 | 7.6 | 9.8 | 15.1 | 14.7 | 19.7 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
1.1 | 2.5 | 2.2 | 5.1 | 3.2 | 4.2 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
4.5 | 11.0 | 9.0 | 22.0 | 13.5 | 18.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
20 | 20 | 20 | 20 | 20 | 20 |
|
Magnetic Attraction |
Fa |
kN |
0.3 | 0.3 | 0.7 | 0.7 | 1.0 | 1.3 |
|
Max.DC Bus Voltage |
Ubus |
V |
600 | 600 | 600 | 600 | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
21.6 | 13.8 | 10.5 | 6.6 | 6.9 | 5.0 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
12.2 | 7.6 | 5.8 | 3.5 | 3.7 | 2.6 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
25.4 | 16.5 | 12.7 | 8.2 | 8.5 | 6.3 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
37.9 | 24.3 | 18.7 | 11.9 | 12.4 | 9.1 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
21.7 | 13.6 | 10.6 | 6.5 | 6.9 | 5.0 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
44.2 | 28.8 | 22.1 | 14.4 | 14.8 | 11.0 |
|
Mover Mass |
Mp |
Kg |
0.9 | 0.9 | 1.6 | 1.6 | 2.3 | 3.1 |
|
Stator Mass within unit length |
Ms |
Kg/m |
3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |

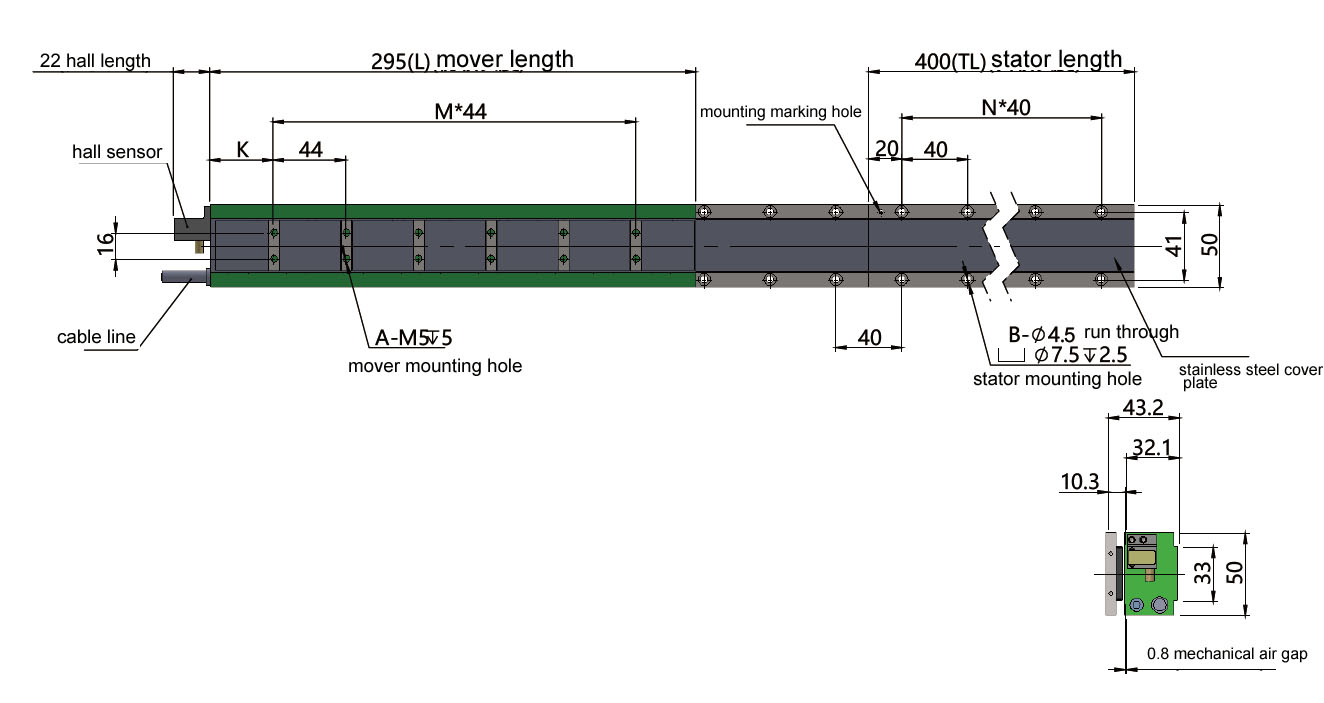

Dimension
| Mover Length | ||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
|
LSMFL10101A-S-H-NC-N-C00.5 |
85 | 1 | 21.5 | |
|
LSMFL10101B-S-H-NC-N-C00.5 |
85 | 1 | 21.5 | |
|
LSMFL10201A-S-H-NC-N-C00.5 |
155 | 2 | 34.5 | |
|
LSMFL10201B-S-H-NC-N-C00.5 |
155 | 2 | 34.5 | |
| LSMFL10301A-S-H-NC-N-C00.5 | 255 | 4 | 25.5 | |
|
LSMFL10401A-S-H-NC-N-C00.5 |
295 | 5 | 38.5 | |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
| LSMFJ2A-W50-L40 | 40 | 0 | 2 |
| LSMFJ2A-W50-L80 | 80 | 1 | 4 |
|
LSMFJ2A-W50-L200 |
200 | 4 | 10 |
|
LSMFJ2A-W50-L320 |
320 | 7 | 16 |
|
LSMFJ2A-W50-L400 |
400 | 9 | 20 |
Suitable for any mover of this series.
