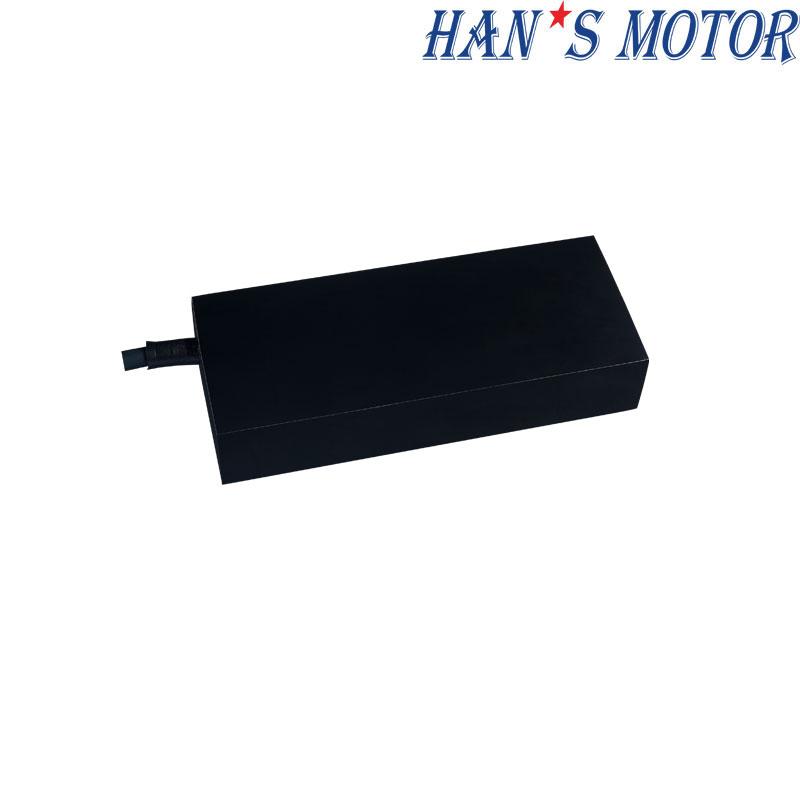

High acceleration and precision iron core linear motor LSMFJ-100 for printing uv machine

Features:

1. Core technology, low cogging effect

3. Water cooling/Natureal cooling structure

4. Multi-series, maximum specification peak thrust 20000N

5. Standardization, modularization, high reliability


6. Customizable development

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:High acceleration and precision iron core linear motor LSMFJ-100 for printing uv machine


Specifications

Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5
103A-S 203A-P
Performance Parameters
     Symbol
     Units
       Series
      Parallel
Continuous Force (Tmax)
Fc N 174 332
Peak Force
Fp N 593 1329
Motor Constant (25℃)
Km25 N/Sqrt(W) 21.1 29.7
Max.Continuous Power Dissipation
Pc W 94 171
Continuous Current (Tmax)
Ic Arms 2.3 4.4
Peak Current (1S)
Ip Arms 9.0 18.0
Force Constant (25℃,±5%)
Kf N/Arms 75.6 75.6
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s 25.2 25.2
Resistance(25℃,±5%)P-P
R 8.6 4.3
Inductance(25℃,±20%)P-P
L mH 30.6 15.3
Max Coil Temperature
Tmax 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 20 20
Magnetic Attraction
Fa kN 1.0 1.0
Max.DC Bus Voltage
Ubus V 600 600
Vmax,Fc@Vbus=310Vdc

m/s 4.0 4.1
Vmax,Fp@Vbus=310Vdc

m/s 1.7 1.7
Vmax,0@Vbus=310Vdc

m/s 4.9 4.9
Vmax,Fc@Vbus=537Vdc

m/s 7.4 7.5
Vmax,Fp@Vbus=537Vdc

m/s 3.7 3.7
Vmax,0@Vbus=537Vdc

m/s 8.6 8.6
Mover Mass
Mp Kg 1.2 2.4
Stator Mass within unit length
Ms

Kg/m

7.0 7.0

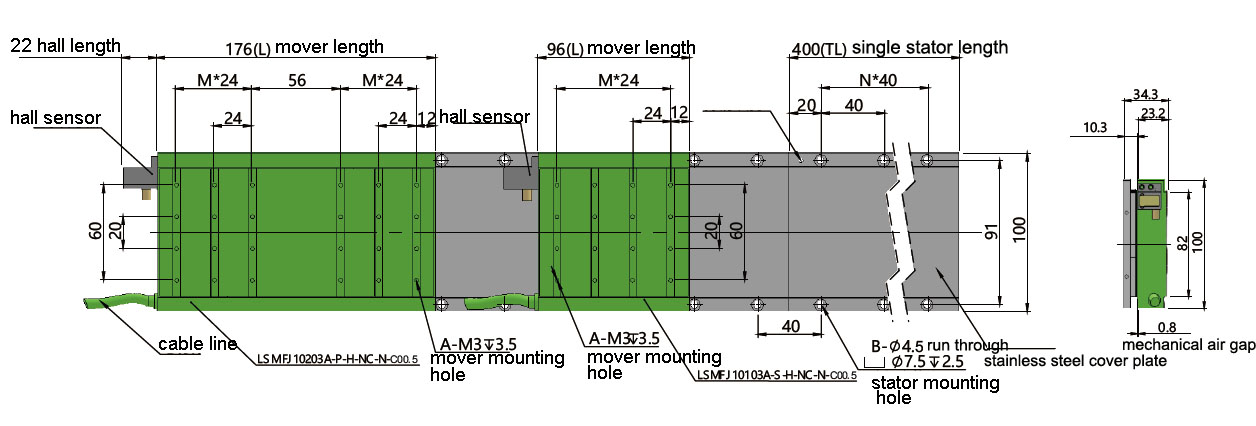

Dimension

3 phase linear motor

Mover Length
Mover model
Mover length L
     M      Mover mounting hole A
LSMFJ10103A-S-H-NC-N-C00.5
96 3 16
LSMFJ10203A-S-H-NC-N-C00.5
176 2 24

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/ 12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMFJ2A-W100-L40
40 0 2
LSMFJ2A-W100-L80
80 1 4
LSMFJ2A-W100-L200
200 4 10
LSMFJ2A-W100-L320
320 7 16
LSMFJ2A-W100-L400
400 9 20

Suitable for any mover of this series.


Application case:Semiconductor Industry

In the semiconductor industry, linear motor with its high speed, high precision characteristics, widely used in photoengraving machine, IC bonding machine, IC molding machine and other processing equipment, and a single equipment often need more than one linear motor.

3 phase linear motor



Industry Applications:

3 phase linear motor


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
