Features：
1. Core technology
2. Low cogging effect
3. Water cooling/Natureal cooling structure
4. Standardization, modularization, high reliability
5. Multi-series, maximum specification peak thrust 20000N
6. Optional hall sensor
7. Customizable development
Brand:
HAN'S MOTOROrder(MOQ):

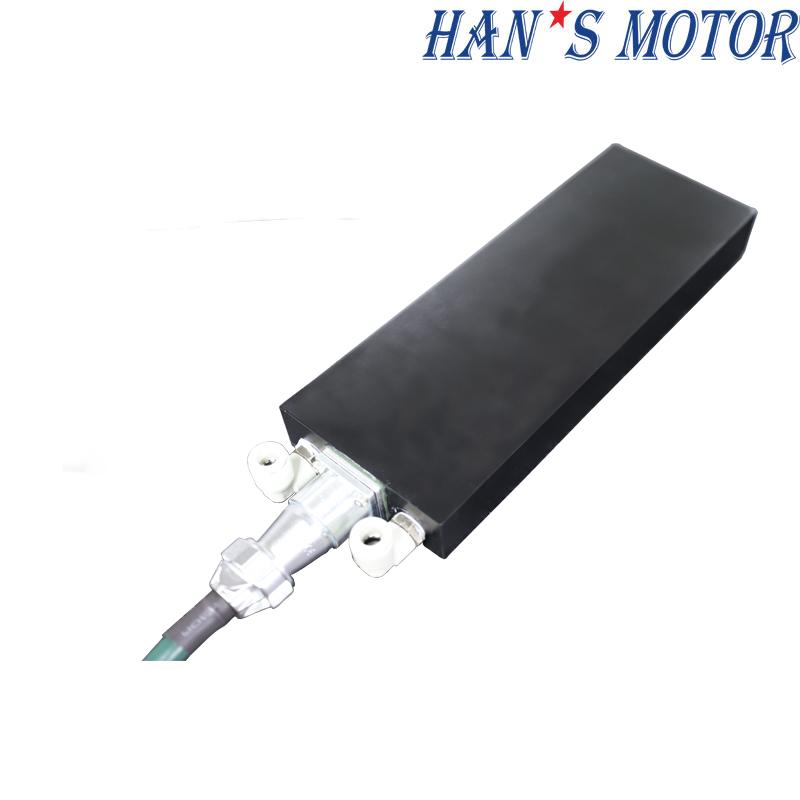

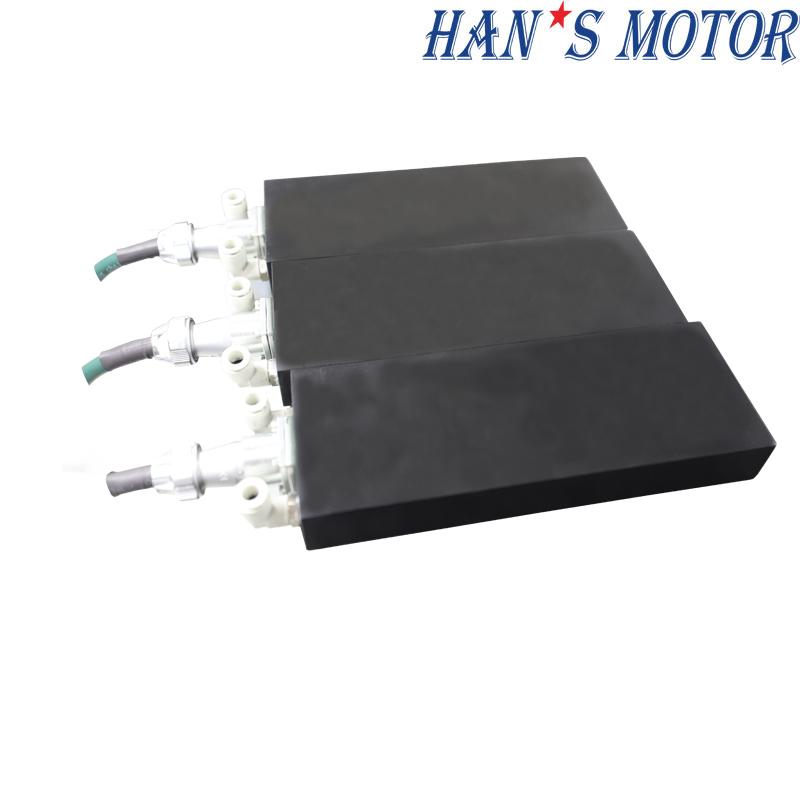

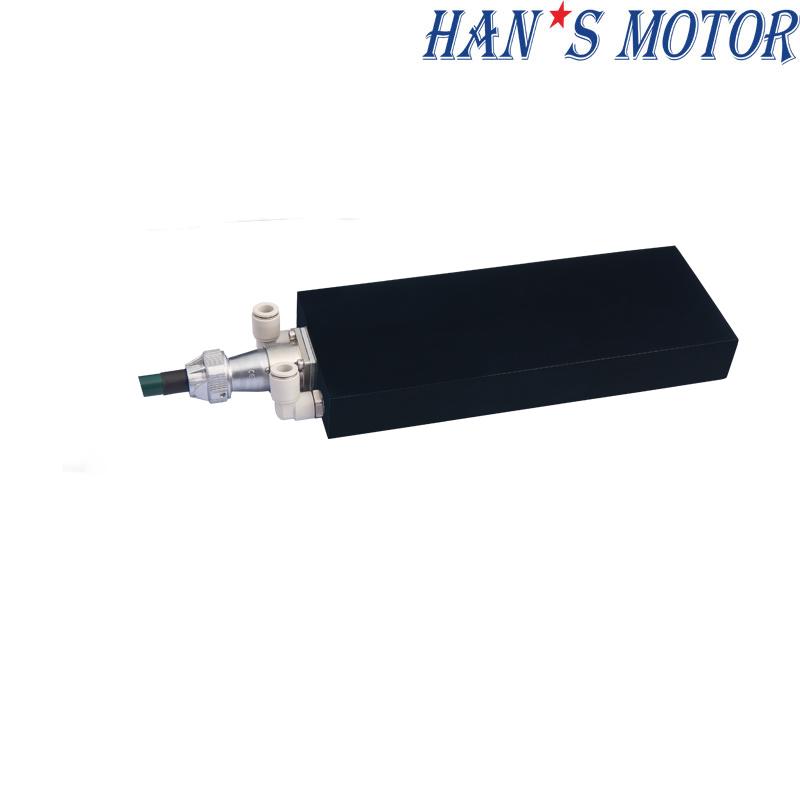

1Product name：High thrust and high speed Iron core linear motor LSMFJ-50 for cnc laser machine
Specifications
|
Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 |
101A-S | 201A-S | 201A-P | ||
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Parallel |
|
Continuous Force (Tmax） |
Fc | N | 65 | 125 | 125 |
|
Peak Force |
Fp | N | 222 | 498 | 498 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
11.5 | 16.4 | 16.4 |
|
Max.Continuous Power Dissipation |
Pc | W | 44 | 80 | 80 |
|
Continuous Current (Tmax） |
Ic | Arms | 2.3 | 2.2 | 4.4 |
|
Peak Current (1S) |
Ip |
Arms |
9.0 | 9.0 | 18.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
28.3 | 56.8 | 28.4 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
9.4 | 18.8 | 9.4 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
4.0 | 8.0 | 2.0 |
|
Inductance(25℃，±20%）P-P |
L | mH | 13.0 | 26.0 | 6.5 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 20 | 20 | 20 |
|
Magnetic Attraction |
Fa | kN | 0.4 | 0.8 | 0.8 |
|
Max.DC Bus Voltage |
Ubus | V | 600 | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
11.3 | 5.4 | 11.4 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
5.4 | 2.2 | 5.4 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
13.3 | 6.6 | 13.2 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
20.1 | 9.8 | 20.2 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
9.9 | 4.6 | 9.9 |
|
Vmax,0@Vbus=537Vdc |
|
m/s | 23.1 | 11.5 | 23.0 |
|
Mover Mass |
Mp | Kg | 0.6 | 1.0 | 1.0 |
|
Stator Mass within unit length |
Ms | Kg/m |
3.3 |
3.3 | 3.3 |
Dimension
|
Mover Length |
|||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
LSMFJ10101A-S-H-NC-N-C00.5 |
96 | 3 | 8 |
|
LSMFJ10201A-S-H-NC-N-C00.5 |
176 | 2 | 12 |
|
LSMFJ10201A-P-H-NC-N-C00.5 |
176 | 2 | 12 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
|
LSMFJ2A-W50-L40 |
40 | 0 | 2 |
|
LSMFJ2A-W50-L80 |
80 | 1 | 4 |
|
LSMFJ2A-W50-L200 |
200 | 4 | 10 |
|
LSMFJ2A-W50-L320 |
320 | 7 | 16 |
|
LSMFJ2A-W50-L400 |
400 | 9 | 20 |
Suitable for any mover of this series.
Application case：PCB industry
Requires: Smooth thrust, small inertia, large acceleration, strong overload capacity, no cogging force and electromagnetic suction.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
