Features：
1. Extremely high force in a modular
2. Compact design
3. Low cost
4. No maintenance
Brand:
HAN'S MOTOROrder(MOQ):
1Product name：High Force Linear Motor Iron Core Motors With Compact Design

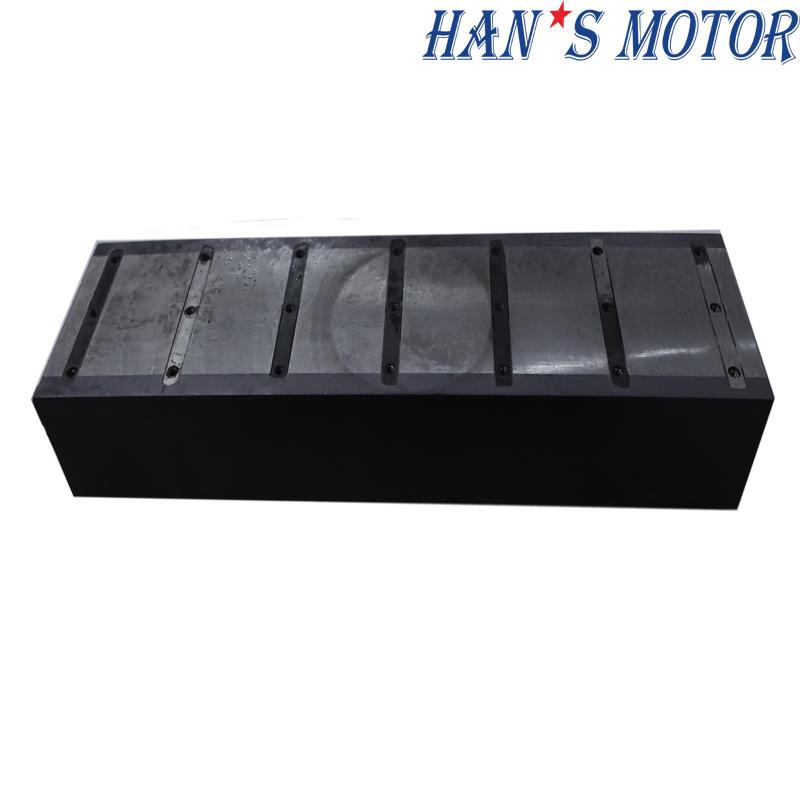

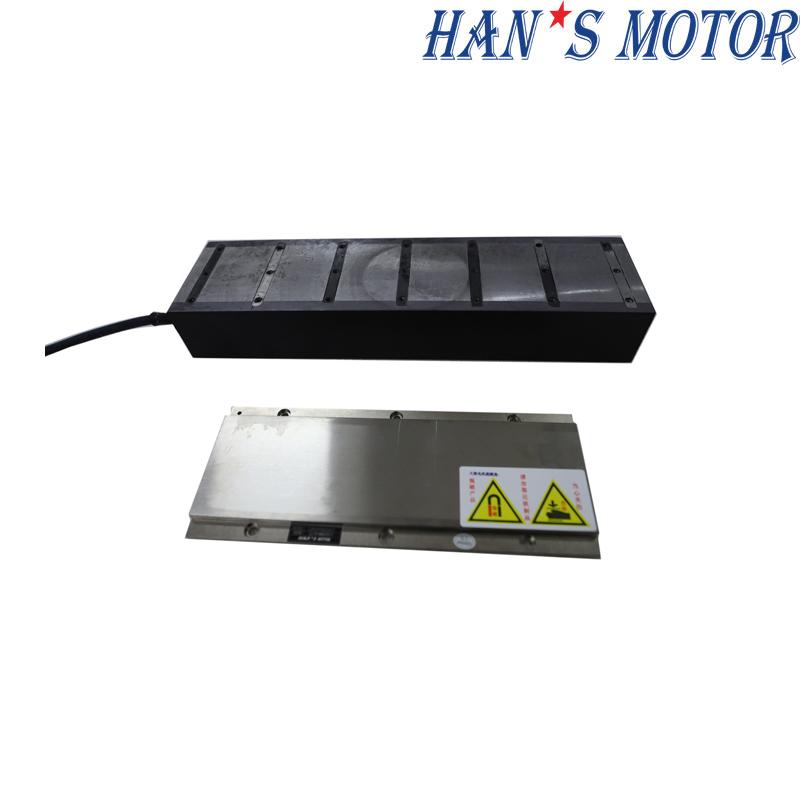

Iron Core Motors
Designed and constructed with an iron core, these linear motors offer an extremely high continuous force for their size, starting at 65N for the small LSMFJ-50, all the way up to 7800N for the water-cooled LSMFK-200. Peak forces are even higher, reaching up to 10400N. All this raw power comes in a surprisingly compact package.
A small footprint, modular design, and high force density enable very flexible application designs, using iron core linear motors. The ability to string multiple motors together, either in series or parallel, widens its range of applications even further.
Features：
1. Maximum rated thrust - ideal for driving heavy objects
2. Maintain the rigidity required for machining and other process thrust
3. Zero reverse gap
4. High rigidity
5. High positioning accuracy
6. Compact mechanical structure
Specifications
|
Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5 |
301A-S |
302A-S |
302A-P |
303A-P |
303B-P |
303C-P | 304A-P | 304B-P | ||
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Parallel |
Parallel |
Parallel |
Parallel |
Parallel | Parallel |
|
Continuous Force (Tmax） |
Fc |
N |
293 | 606 | 606 | 1250 | 1097 |
1097 |
972 | 960 |
|
Peak Force |
Fp |
N |
694 | 1426 | 1426 | 2930 | 2524 |
2523 |
2236 | 2209 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
31.5 | 46.8 | 46.1 | 69.4 | 69.4 |
66.9 |
60.4 | 60.2 |
|
Max.Continuous Power Dissipation |
Pc | W | 119 | 230 | 237 | 445 | 343 |
369 |
356 | 349 |
|
Continuous Current (Tmax） |
Ic |
Arms |
6.0 | 6.0 | 12.0 | 12.0 | 8.0 |
16.0 |
8.0 | 11.0 |
|
Peak Current (1S) |
Ip |
Arms |
18.0 | 18.0 | 36.0 | 36.0 | 24.0 |
48.0 |
24.0 | 33.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
48.8 | 101.0 | 50.5 | 104.2 | 137.2 |
68.6 |
121.5 | 87.3 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
16.3 | 33.7 | 16.8 | 34.7 | 45.7 |
22.9 |
40.5 | 29.1 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
1.6 | 3.1 | 0.8 | 1.5 | 2.6 |
0.9 |
2.7 | 1.4 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
25.0 | 50.0 | 12.5 | 25.0 | 43.4 |
13.5 |
48.6 | 25.1 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 | 120 |
120 |
120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
42 | 42 | 42 | 42 | 42 |
42 |
42 | 42 |
|
Magnetic Attraction |
Fa |
kN |
1.3 | 2.7 | 2.7 | 5.3 | 5.3 |
5.3 |
3.9 | 3.9 |
|
Max.DC Bus Voltage |
Ubus |
V |
600 | 600 | 600 | 600 | 600 |
600 |
600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
6.0 | 2.8 | 5.9 | 2.7 | 2.1 |
4.2 |
2.2 | 3.2 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
3.0 | 1.3 | 3.0 | 1.3 | 1.0 |
2.1 |
1.0 | 1.5 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
7.7 | 3.7 | 7.4 | 3.6 | 2.7 |
5.4 |
3.1 | 4.3 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
10.7 | 5.1 | 10.5 | 5.0 | 3.9 |
7.5 |
4.1 | 5.8 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
5.5 | 2.6 | 5.5 | 2.6 | 2.1 |
3.8 |
2.0 | 2.9 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
13.4 | 6.4 | 12.9 | 6.2 | 4.7 |
9.5 |
5.3 | 7.4 |
|
Mover Mass |
Mp |
Kg |
2.9 | 5.7 | 5.7 | 10.6 | 10.6 |
10.6 |
8.3 | 8.3 |
|
Stator Mass within unit length |
Ms |
Kg/m |
6.8 | 6.8 | 6.8 | 6.8 |
6.8 |
6.8 |
6.8 | 6.8 |
Dimension
| Mover Length | ||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
K |
|
LSMF610301A-S-H-NC-N-C00.5 |
101 | 1 | 6 | 22.5 |
|
LSMF610302A-S-H-NC-N-C00.5 |
200 | 3 | 12 | 16 |
|
LSMF610302A-P-H-NC-N-C00.5 |
200 | 3 | 12 | 16 |
|
LSMF610303A-P-H-NC-N-C00.5 |
368 | 6 | 21 | 16 |
|
LSMF610303B-P-H-NC-N-C00.5 |
368 | 6 | 21 | 16 |
|
LSMF610303C-P-H-NC-N-C00.5 |
368 | 6 | 21 | 16 |
|
LSMF610304A-P-H-NC-N-C00.5 |
278 | 4 | 15 | 27 |
|
LSMF610304B-P-H-NC-N-C00.5 |
278 | 4 | 15 | 27 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|

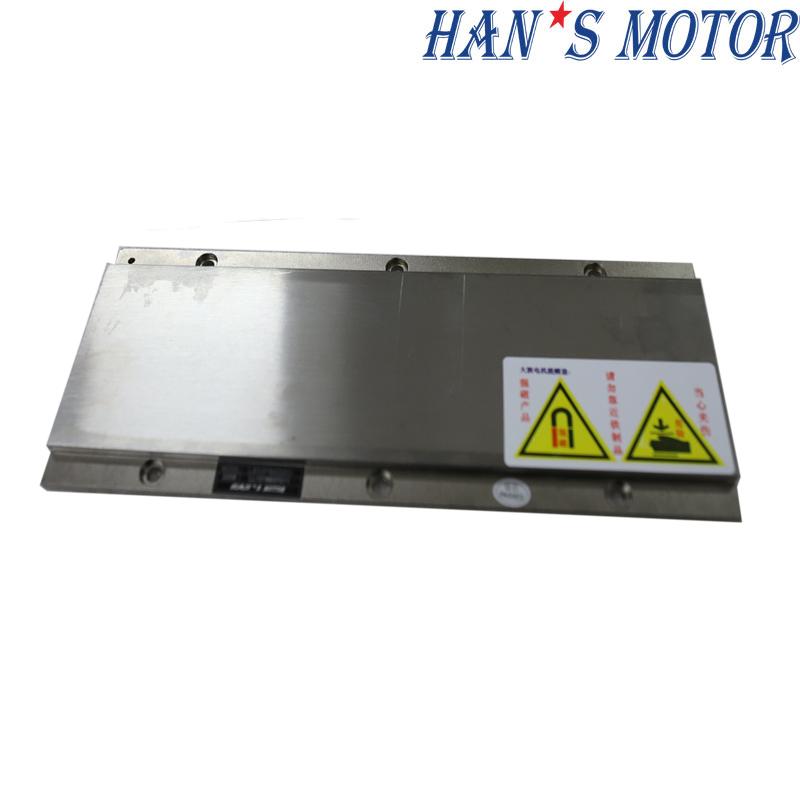

Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
| LSMF6201C | 168 | 1 | 4 |
| LSMF6202C | 252 | 2 | 6 |
|
LSMF6203C |
420 | 4 | 10 |
Suitable for any mover of this series.
The Most Representative Application Case

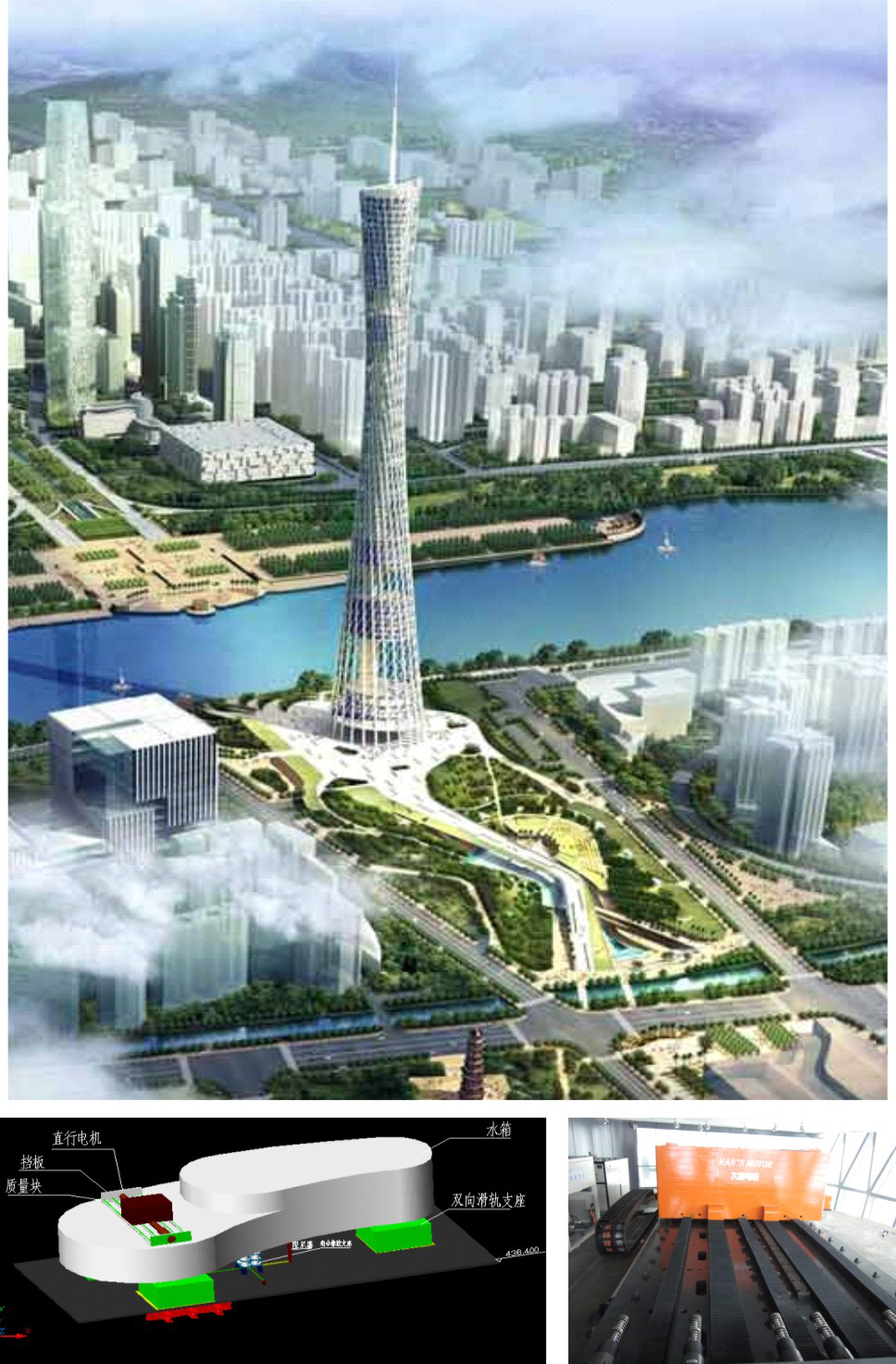

Project: Canton Tower
Solution： 4 sets of 8000N water-cooling iron core linear motor in parallel
HAN'S LASER Group
Our Company Show
Production Line Show
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
