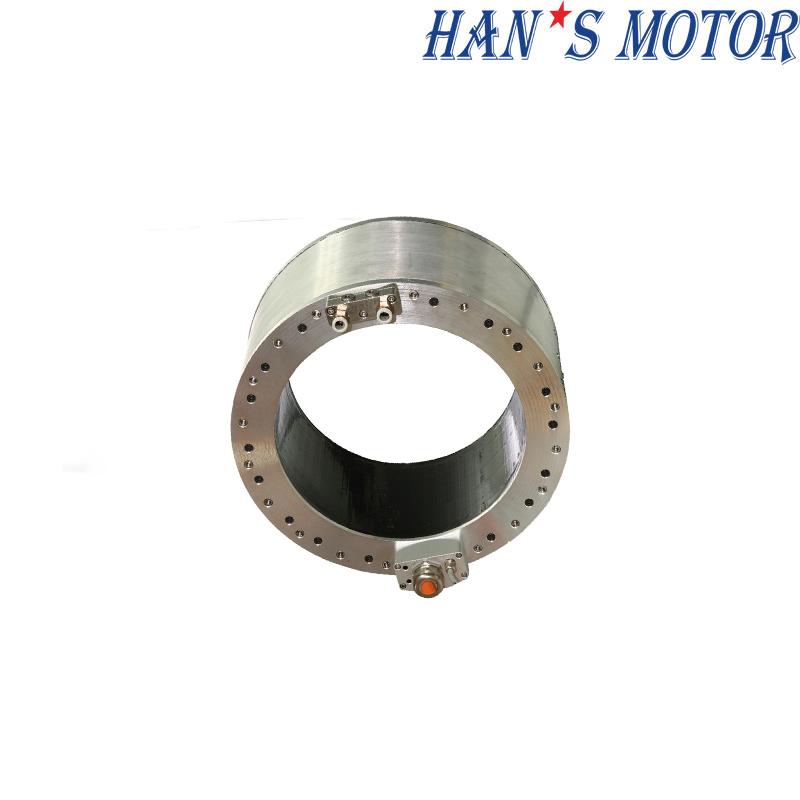

High Torque Frameless Inner Rotor Torque Motor BI Series
DDR BI16 Series
Features:
1. Direct drive, high dynamic response;
2. Inner rotor/outer rotor structure;
3. High speed/low speed winding design;
4. HEIDENHAIN absolute encoder;
5. It can be divided into stator and rotor, the maximum peak torque is 5500Nm;
6. Reliable performance, mature process, fast delivery
Water cooling motor highlight:
Better heat dissipation with water cooling device, added double times of torque for the same size of motor,
suit for machine tools area.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: High Torque Frameless Inner Rotor Torque Motor BI Series
Product Specifications
|
Torque Motor BI16 Series Specification |
|||
|
Motor Model No.：BI16-xxx-S-A-0-W |
|
|
003-S-A-0 |
|
Performance Parameters |
Symbol |
Unit |
|
|
Pole pairs |
p |
— |
11 |
|
Max.Working Bus Voltage |
Vdc |
V |
310 |
|
Peak torque |
Tp |
Nm |
90 |
|
Continuous torque (Water cooling) |
Tcw |
Nm |
30 |
|
Continuous torque (Natural cooling) |
Tc |
Nm |
24.6 |
|
Peak Current |
Ip |
Arms |
9.0 |
|
Continuous current (Water cooling) |
Icw |
Arms |
2.7 |
|
Continuous current ((Natural cooling) |
Ic |
Arms |
2.2 |
|
Torque Constant |
Kt |
Nm/Arms |
11.2 |
|
Back EMF Constant |
Ke |
Vrms/rad/s |
4.05 |
|
Back EMF Constant |
Ke |
Vrms/(1000r/min) |
731 |
|
Line Resistance |
R |
Ω |
16.8 |
|
Line Inductance |
L |
mH |
40.2 |
|
Max.speed,Tcw |
Nmax,Tcw |
rpm |
200 |
|
Max.speed,Tc |
Nmax,Tc |
rpm |
180 |
|
Max.speed,Tp |
Nmax,Tp |
rpm |
50 |
|
Max.speed,0 |
Nmax |
rpm |
300 |
|
Power consumption, output Tcw |
Plw |
W |
184 |
|
Power consumption, output Tc |
Plc |
W |
122 |
|
Motor constant |
Km |
Nm/√W |
2.2 |
|
Cooling water flow |
dV/dt |
L/min |
4 |
|
Cooling water temperature difference setting |
△θ |
k |
5 |
|
Rated winding temperature |
θ |
℃ |
120 |
|
Motor Mass |
Ms |
Kg |
3.58 |
|
Rotor Mass |
Mr |
Kg |
1.37 |
|
Rotor Moment of Inertia |
Jm |
Kg*m2 |
0.0050 |
|
Cable length (Can be extended optional) |
L |
M |
0.5 |
|
Cable Minimum bending radius |
R |
mm |
37.5 |

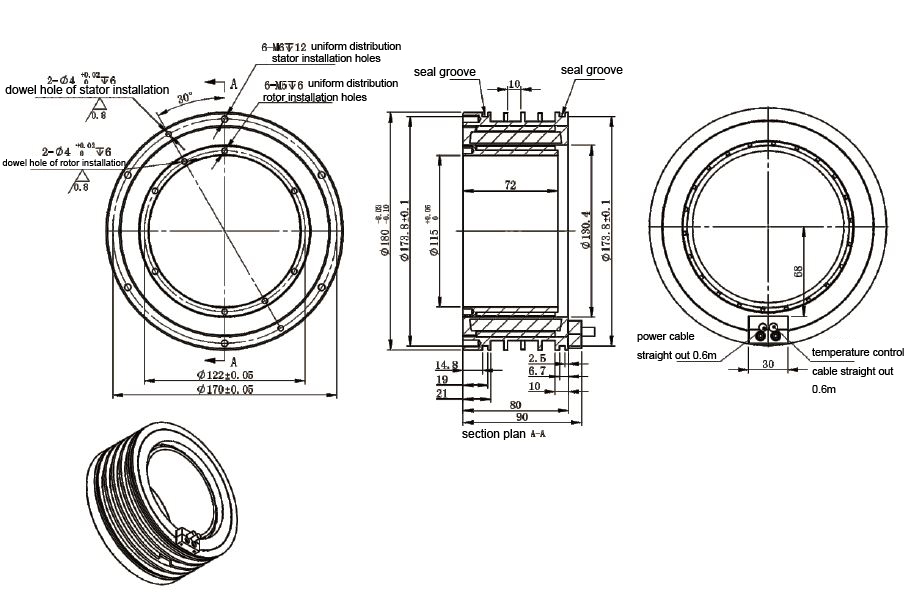

Dimension
|
Model |
Center Hole(mm) |
Outer Diameter |
Height/mm |
Spec. |
Continuous torque/Nm |
Peak torque/Nm |
|
BI16 (water cooling) |
115 |
180 |
90 |
BI16-003 |
30 |
90 |
Design.: Leading design technology
Drive: Standard integrated built-in driver
Customized: Professional customized services
Quality: High quality and reliable guarantee
Specialities:
HAN'S MOTOR motion control solutions serve in wide range of applications for multiple sectors.
such as: industrial manufacturing, NC machine tool, semiconductor, automation, PCB, solar energy industry, laser industry, SMT, AOI, medical, textiles, Automotive industry, transportation, Customs, Assembly line, etc.
Applications.: Widely used in machine tools and Robot applications
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
