HAN'S MOTOR Large Torque High Speed Direct Drive

DDR Torque Motor Direct Drive Motion Control Products For CNC Machine Tool BI4 Series

HAN'S Frameless Inner Rotor Power Torque Motor BI4 Series

Product description:

A Direct Drive Motor, is a type of permanent-magnet synchronous motor which directly drives the load. When using this kind of motor, the use of a transmission or gearbox is eliminated. Therefore, the amount of moving parts in the system is reduced tremendously. This increases the efficiency and creates a quiet and highly dynamic operation as well as a very high lifetime of the system. Direct Drive Motors are torque motors and linear motors.

Features:

Cost Optimized Solution

High Dynamic Performance

High Position Accuracy

Ease of use

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name:

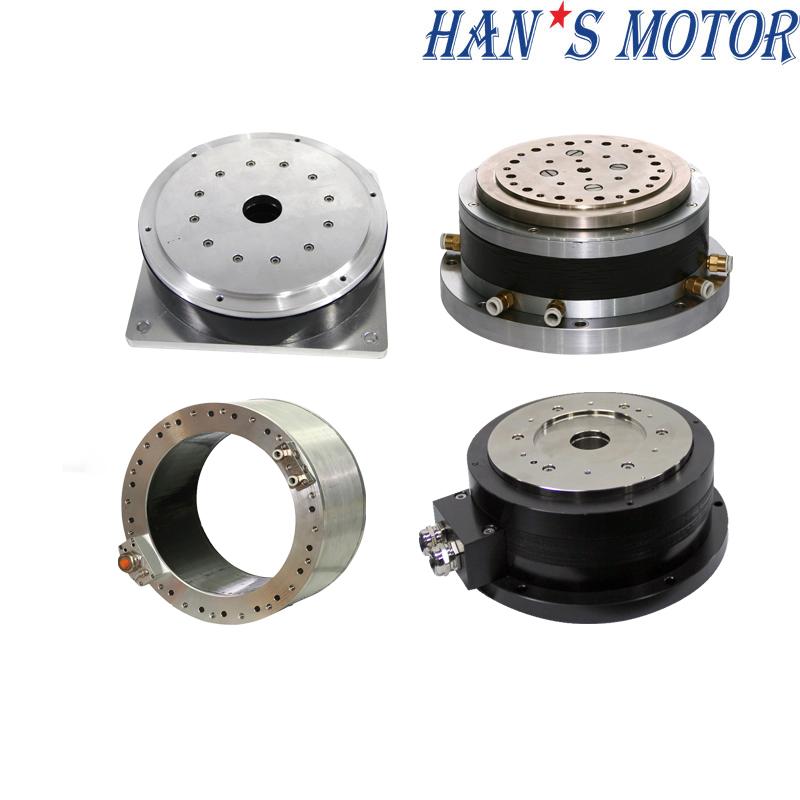

Water Cooling Type Direct Drive Motor Frameless Inner Rotor Torque Motor

Product Specifications

Torque Motor BI4 Series Specification
Motor Model No.：BI4-xxx-S-x-0-W			010-S-A-0	015-S-B-0	020-S-A-0	030-S-B-0
Performance Parameters	Symbol	Unit
Pole pairs	p	—	22	22	22	22
Max.Working Bus Voltage	Vdc	V	540	600	540	600
Peak torque	Tp	Nm	170	235	356	536
Continuous torque (Water cooling)	Tcw	Nm	101	141	209	315
Continuous torque (Natural cooling)	Tc	Nm	48.06	66.60	100.10	150.70
Peak Current	Ip	Arms	7	7	43	29
Continuous current (Water cooling)	Icw	Arms	3.80	3.80	23.00	15.14
Continuous current ((Natural cooling)	Ic	Arms	1.80	1.80	11.00	7.25
Torque Constant	Kt	Nm/Arms	26.7	37	9.1	20.8
Back EMF Constant	Ke	Vrms/rad/s	8.9	12.3	3.0	6.9
Back EMF Constant	Ke	Vrms/ (1000r/min)	1614	2237	550	1256
Line Resistance	R	Ω	38.0	50.0	2.3	5.8
Line Inductance	L	mH	140.0	180.0	9.0	20.0
Max.speed,Tcw	Nmax,Tcw	rpm	110.0	60.0	460.0	240.0
Max.speed,Tc	Nmax,Tc	rpm	170.0	110.0	580.0	290.0
Max.speed,Tp	Nmax,Tp	rpm	30.0	5.0	300.0	160.0
Max.speed,0	Nmax	rpm	230.0	160.0	670.0	330.0
Power consumption, output Tcw	Plw	W	1152.0	1516.0	2555.1	2769.4
Power consumption, output Tc	Plc	W	259.0	340.0	584.4	633.9
Motor constant	Km	Nm/√W	3.0	3.6	4.1	6.0
Cooling water flow	dV/dt	L/min	3.40	3.90	5.21	7.00
Cooling water temperature difference setting	△θ	k	5	5	5	5
Rated winding temperature	θ	℃	130	130	130	130
Motor Mass	Ms	Kg	7.5	10.0	13.0	32.0
Rotor Mass	Mr	Kg	2.4	3.4	5.0	7.5
Rotor Moment of Inertia	Jm	Kg*m2	0.0137	0.0193	0.0276	0.0415
Cable length (Can be extended optional)	L	M	3.0	3.0	3.0	3.0
Cable Minimum bending radius	R	mm	102.0	102.0	102.0	102.0

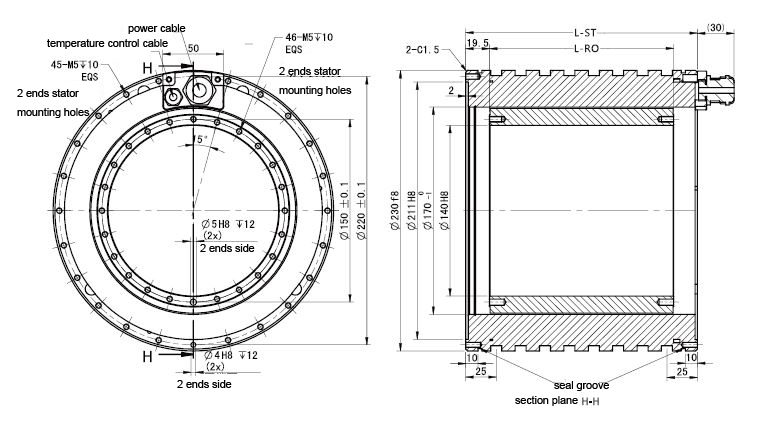

Dimension

Characteristics:

Direct drive torque motors has high torque over a wide range of speed, from low speed condition to high velocities, the performance of a torque motor over its velocity range can be seen in the torque/speed curve, which have been designed specifically for direct drive applications provide excellent control loop quality ensuring optimum stiffness, smooth motion, and excellent velocity control with low torque ripple.

Running smoothly, high quality and excellent performance.

Why choose us?

Q: What about the products specialites?

A: Unique technology, direct drive expertise,high quality and ease of integration

Q: What is your trade Assurance?

A: 100% quality assurance, 100% on time shipment

Q: What about your company's business area?

A: We are proud of an extensive offering of DDL motor (Direct Drive Linear Motor), DDR motor (Direct Drive Rotary motor), voice coil actuator, servo drive, industrial Robot, automation and other motion products, which providing a large selection to meet nearly all customers’ needs.

Q: What's your products applications?

A: Now our motion control solutions serve in a broad range of applications in multiple sectors,

such as: industrial manufacturing, CNC machine tool, semiconductor, automation, PCB, solar energy industry,

laser industry, SMT, AOI, medical, textiles, automotive industry, assembly line etc.

China Best DDR motor Supplier HAN'S MOTOR

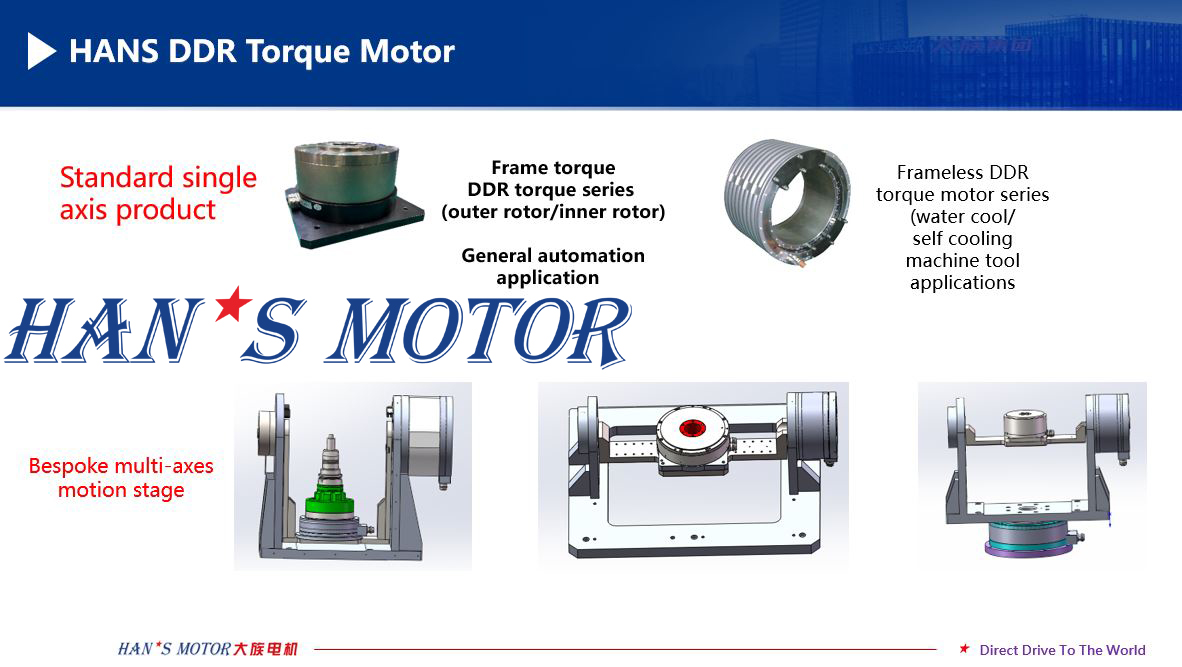

HAN'S MOTOR DDR Torque Motor Products Series.:

direct drive rotary motors China Best DDR motor Supplier

HAN'S LASER High Torque Frame Motor Direct Drive Motor

We're pursuing good quality, reasonable price, on time delivery and efficient service etc.

High Torque Frame Motor Direct Drive Motor

Applications:

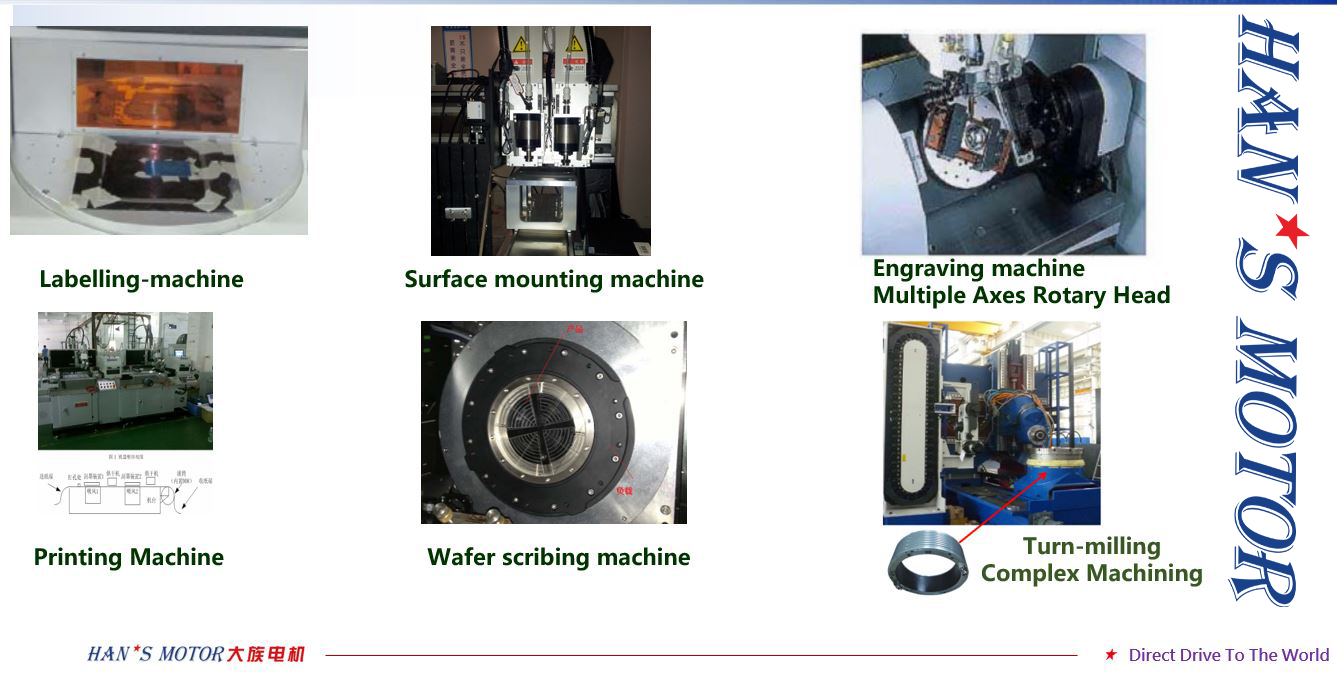

Machine tools, machining centers, metal forming, rotary transfer systems, printing/converting machines, and plastic processing equipment.
