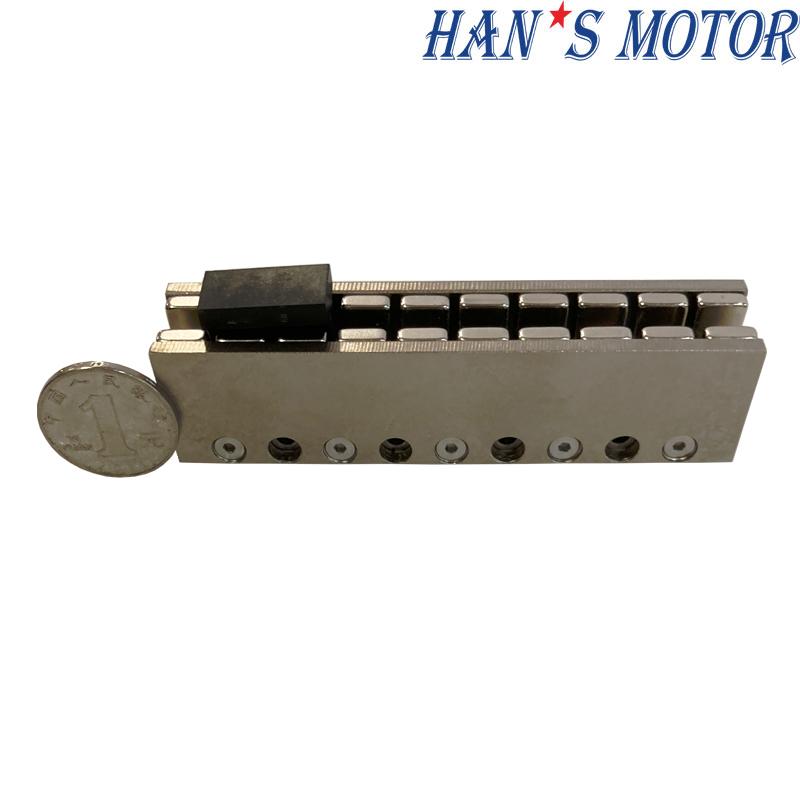

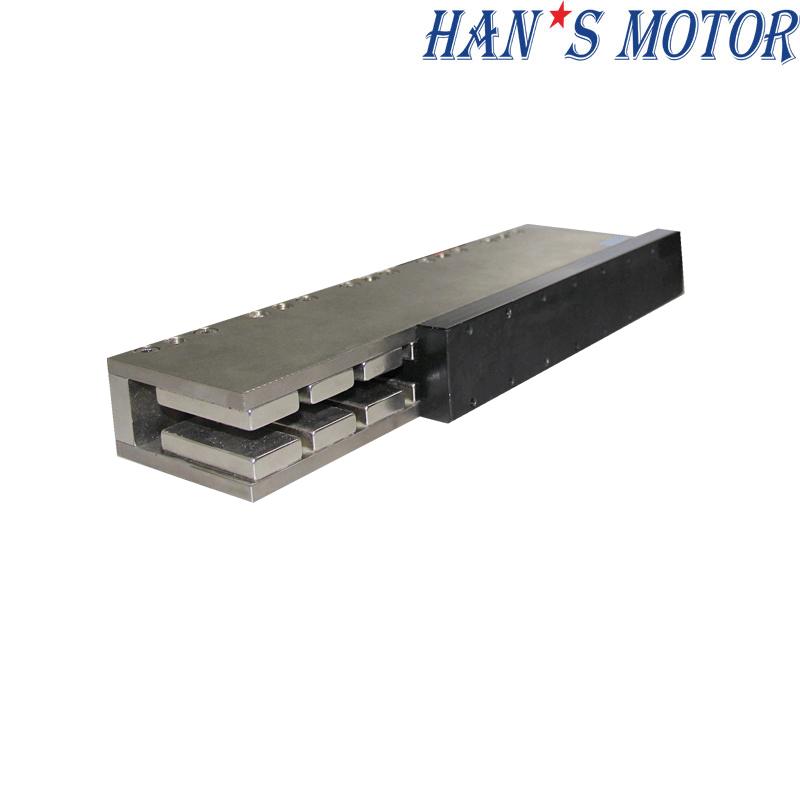

Smallest high precision U-type LSMU4 ironless linear motor for Semiconductor Equipment

Features:

1. Coreless

2. Zero cogging effect

3. Winding compact design, High thrust density

4. High continuous force and Peak force

5. Optional hall sensor

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product nameSmallest high precision U-type LSMU4 ironless linear motor for Semiconductor Equipment


Specifications

Mover Spec: LSMU410xxxx-x-H-NC-N-D00.5
101A-S 201A-S 201A- P 301A-S 301A- P 401A-S 401A- P 601A-S
601B- P
Performance Parameters
Symbol
 Unit   Series Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Continuous Force (Tmax)
Fc N 36 72 72 108 108 144 144 216 216
Peak Force
Fp N 144 288 288 432 432 576 576 864 864
Motor Constant
Km25 N//Sqrt (W)
7.8 11.0 10.8 13.5 13.2 15.6 15.6 19.2 18.9
Max.Continuous Power Dissipation
Pc W 29.4 58.8 61.0 88.2 91.5 116.6 117.7 174.3 178.7
Continuous Current (Tmax)
Ic Arms 2.3 2.3 4.6 2.3 4.6 2.3 4.6 2.3 4.6
Peak Current (1S)
Ip Arms 9.2 9.2 18.4 9.2 18.4 9.2 18.4 9.2 18.4
Force Constant (25℃,±5%)
Kf N/Arms
15.7 31.4 15.7 47.1 23.6 62.8 31.4 94.2 47.1
Back EMF Constant (25℃,±5%)
Ke Vrm/rad /s
5.2 10.5 5.2 15.7 7.9 20.9 10.5 31.3 15.7
Electrical Resistance (25℃,±5%)P-P
R Ω
2.7 5.4 1.4 8.1 2.1 10.7 2.7 16.0 4.1
Inductance          (25℃,±20%)P-P
L mH 2.0 4.0 1.0 6.0 1.5 8.0 2.0 12.0 3.0
Max Coil Temperature
Tmax

120 120 120
120
120
120
120
120
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 60 60
60
60
60 60 60 60
60
Magnetic Attraction
Fa kN 0.0 0.0
0.0
0.0 0.0 0.0 0.0 0.0 0.0
Max.DC Bus Voltage
Ubus V 330 330
330
330
330
330
330
330
330
Vmax,Fc@Vbus=310Vdc
Vmax,Fc
m/s 23.1 11.1 23.1 7.1 15.0 5.1 11.1 3.1 7.1
Vmax,Fp@Vbus=310Vdc
Vmax,Fp
m/s
20.3 8.5 20.2 4.6 12.3 2.6 8.5 0.7 4.5
Vmax,0@Vbus=310Vdc
Vmax,0
m/s
23.9 11.9 23.9 7.9 15.9 5.9 11.9 3.9 7.9
Mover Mass
Mp Kg 0.3 0.6 0.6 0.9 0.9 1.2 1.2 1.8 1.8
Stator Mass within unit length
Ms Kg/m 9.0 9.0
9.0
9.0 9.0 9.0 9.0 9.0 9.0


Dimension

fast linear motor

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMU410101A-S-H-NC-N-D00.5
61 1 3
LSMU410201A-S-H-NC-N-D00.5
121
3
7
LSMU410201A-P-H-NC-N-D00.5
7
LSMU410301A-S-H-NC-N-D00.5
181
5
11
LSMU410301A-P-H-NC-N-D00.5
11
LSMU410401A-S-H-NC-N-D00.5
241
7
15
LSMU410401A-P-H-NC-N-D00.5
15
LSMU710601A-S-H-NC-N-D00.5
361
11
23
LSMU710601A-P-H-NC-N-D00.5
23

Remark:  1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter d of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
              2. optional temperature sensor.


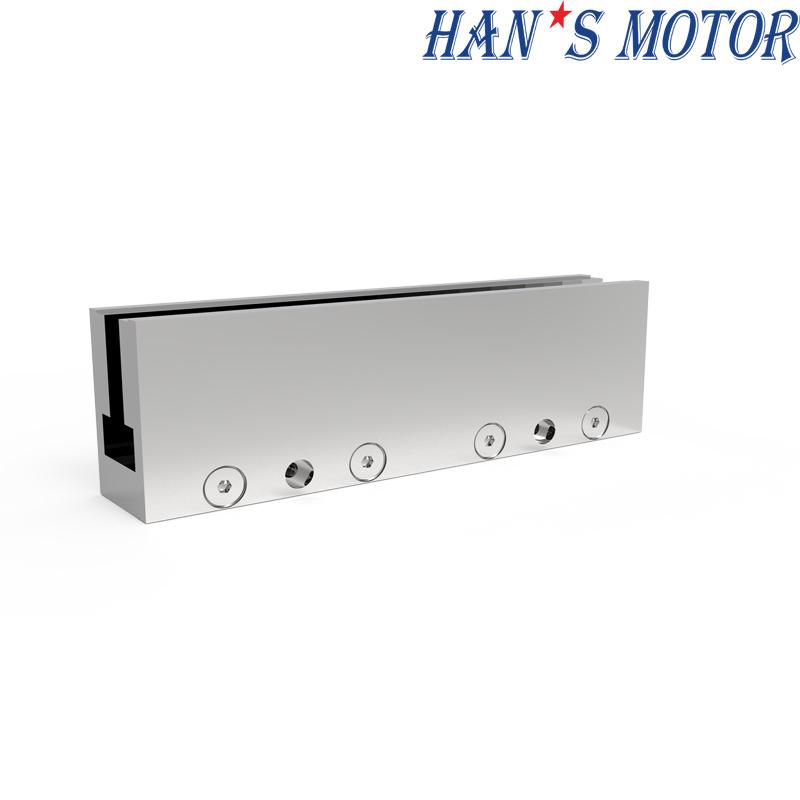

Stator Length
  Stator model   Stator length TL       N       Stator mounting hole B Stator mounting hole C
LSMU4202A 119.5 1 2 2
LSMU4203A
179.5 2 3 3
LSMU4204A
239.5 3 4 4
LSMU4205A
299.5 4 5 5
LSMU4206A
599.5 9 10 10

Suitable for any mover of series mover, stator installation mode can be selected.


Advantages:

1. No gravity, using balanced double magnetic track, safe and easy to operate.

2. No tooth groove effect, easy to keep movement more stable and maintain higher accuracy.

3. Motor stator can be connected, stroke can be extended indefinitely.

4. The absence of a core represents higher acceleration and deceleration.

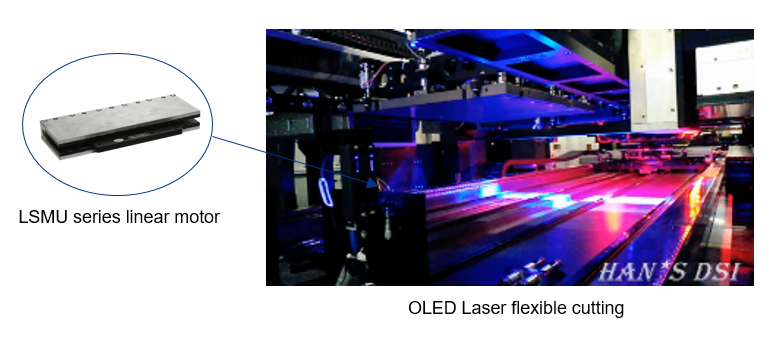

Application Case:Panel Industry

It is suitable for high precision, high straightness, low speed fluctuation, large stroke, good clean environment.
