Features：
1. Coreless
2. Zero cogging effect
3. Winding compact design, High thrust density
4. High continuous force and Peak force
5. Optional hall sensor
Brand:
HAN'S MOTOROrder(MOQ):

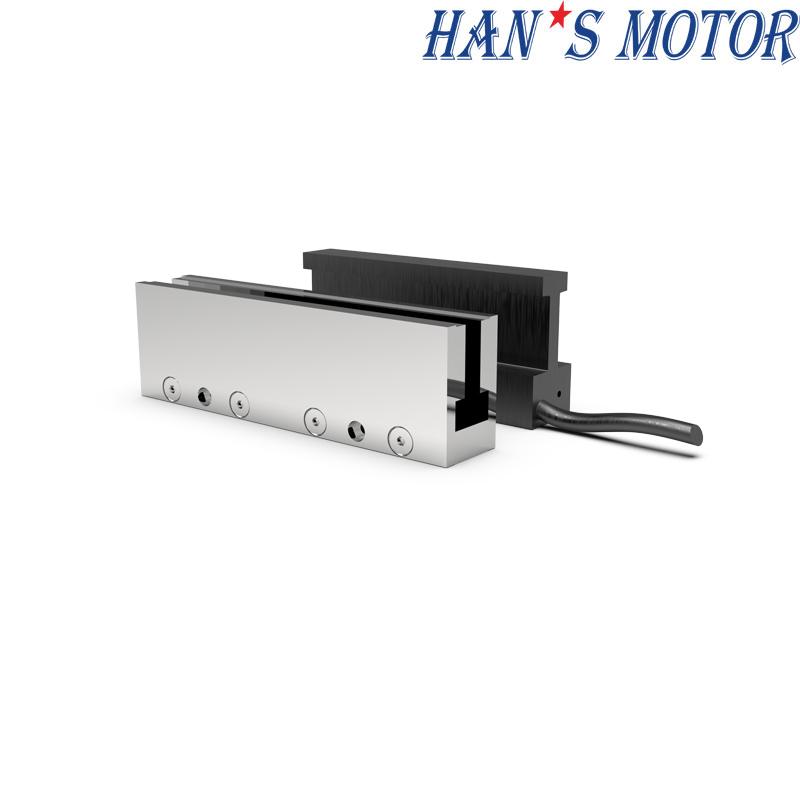

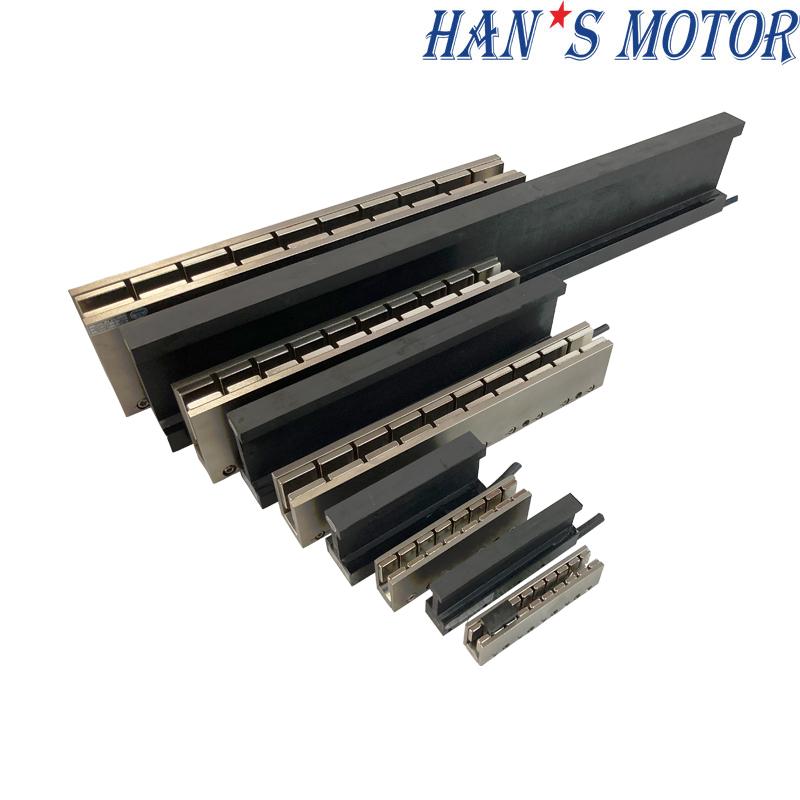

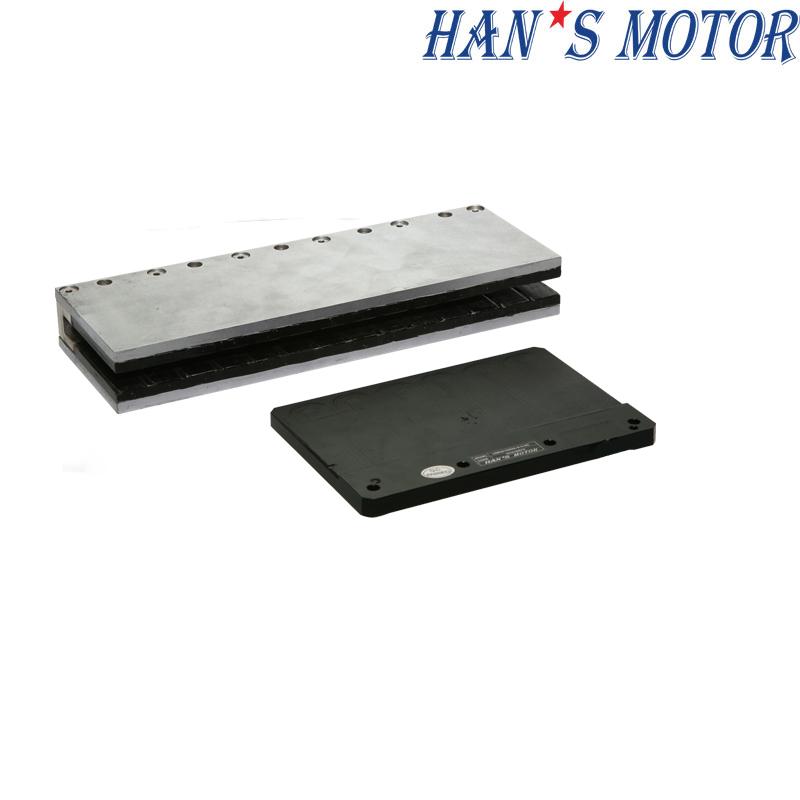

1Product name：High speed and big thrust coreless linear motor LSMU6 for precision 3C machining
Specifications
|
Mover Spec: LSMU610xxxx-x-H-NC-N-D00.5 |
101A-S | 201B-S | 201B- P | 301A-S | 301A- P | 401A-S | 401A- P |
501A-S |
501A- P | 601A- S | 601A-P | 801A- S | 801A- P | ||
|
Performance Parameters |
Symbol |
Unit | Series |
Series |
Parallel |
Series |
Parallel |
Series |
Parallel |
Series |
Parallel |
Series |
Parallel |
Series |
Parallel |
|
Continuous Force (Tmax） |
Fc | N | 110 | 221 | 221 | 331 | 332 | 442 | 442 | 552 | 552 | 662 | 662 | 883 | 883 |
|
Peak Force |
Fp | N | 660 | 1326 | 1326 | 1988 | 1989 | 2649 | 2649 | 3311 | 3309 | 3972 | 3972 | 5300 | 5300 |
|
Motor Constant |
Km25 |
N//Sqrt (W) |
16.1 | 22.8 | 23.3 | 27.9 | 28.5 | 32.2 | 32.9 | 36.2 | 36.8 | 39.7 | 40.0 | 45.9 | 46.6 |
|
Max.Continuous Power Dissipation |
Pc | W | 64 | 129 | 124 | 193 | 185 | 257 | 247 | 319 | 309 | 382 | 376 | 508 | 494 |
|
Continuous Current (Tmax） |
Ic | Arms | 2.5 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 |
|
Peak Current (1S) |
Ip | Arms | 15.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
44.0 | 88.4 | 44.2 | 132.5 | 66.3 | 176.6 | 88.3 | 220.7 | 110.3 |
264.8 |
132.4 | 353.3 | 176.7 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrm/rad /s |
14.7 | 29.5 | 14.8 | 44.2 | 22.1 | 58.9 | 29.5 | 73.6 | 36.8 | 88.3 | 44.2 | 117.8 | 58.9 |
|
Electrical Resistance (25℃，±5%）P-P |
R |
Ω |
5.0 | 10.0 | 2.4 | 15.0 | 3.6 | 20.0 | 4.8 | 24.8 | 6.0 | 29.7 | 7.3 | 39.5 | 9.6 |
|
Inductance (25℃，±20%）P-P |
L | mH | 9.5 | 19.0 | 4.8 | 28.5 | 7.1 | 38.0 | 9.5 | 47.5 | 11.9 | 57.0 | 14.3 | 76.0 | 19.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 |
120 |
120 |
120 |
120 |
120 |
120 | 120 | 120 | 120 |
120 |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 84 |
84 |
84 |
84 |
84 | 84 | 84 | 84 | 84 | 84 | 84 |
84 |
84 |
|
Magnetic Attraction |
Fa | kN | 0.0 |
0.0 |
0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
|
Max.DC Bus Voltage |
Ubus | V | 330 |
330 |
330 |
330 |
330 |
330 |
330 |
330 | 330 | 330 | 330 |
330 |
330 |
|
Vmax,Fc@Vbus=310Vdc |
Vmax,Fc |
m/s | 7.9 | 3.6 | 7.9 | 2.2 | 5.1 | 1.5 | 3.6 | 1.1 | 2.8 | 0.8 | 2.2 | 0.4 | 1.5 |
|
Vmax,Fp@Vbus=310Vdc |
Vmax,Fp |
m/s |
4.8 | 0.6 | 4.9 | 0.0 | 2.2 | 0.0 | 0.8 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
|
Vmax,0@Vbus=310Vdc |
Vmax,0 |
m/s |
8.5 | 4.2 | 8.5 | 2.8 | 5.6 | 2.1 | 4.2 | 1.7 | 3.4 | 1.4 | 2.8 | 1.0 | 2.1 |
|
Mover Mass |
Mp | Kg | 1.0 | 1.9 | 1.9 | 2.7 | 2.7 | 3.6 | 3.6 | 4.5 | 4.5 | 5.4 | 5.4 | 7.2 | 7.2 |
|
Stator Mass within unit length |
Ms | Kg/m | 24.0 |
24.0 |
24.0 |
24.0 | 24.0 | 24.0 | 24.0 |
24.0 |
24.0 |
24.0 |
24.0 | 24.0 | 24.0 |
Dimension
|
Mover Length |
|||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
LSMU610101A-S-H-NC-N-D00.5 |
85 | 1 | 3 |
|
LSMU610201B-S-H-NC-N-D00.5 |
169 |
3 |
7 |
|
LSMU610201B-P-H-NC-N-D00.5 |
7 | ||
|
LSMU610301A-S-H-NC-N-D00.5 |
253 |
5 |
11 |
|
LSMU610301A-P-H-NC-N-D00.5 |
11 | ||
|
LSMU610401A-S-H-NC-N-D00.5 |
337 |
7 |
15 |
|
LSMU610401A-P-H-NC-N-D00.5 |
15 | ||
|
LSMU610501A-S-H-NC-N-D00.5 |
421 |
9 |
19 |
|
LSMU610501A-P-H-NC-N-D00.5 |
19 | ||
|
LSMU610601A-S-H-NC-N-D00.5 |
505 | 11 | 23 |
|
LSMU610601A-P-H-NC-N-D00.5 |
23 | ||
|
LSMU610801A-S-H-NC-N-D00.5 |
673 |
15 |
31 |
|
LSMU610801A-P-H-NC-N-D00.5 |
31 | ||
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
|

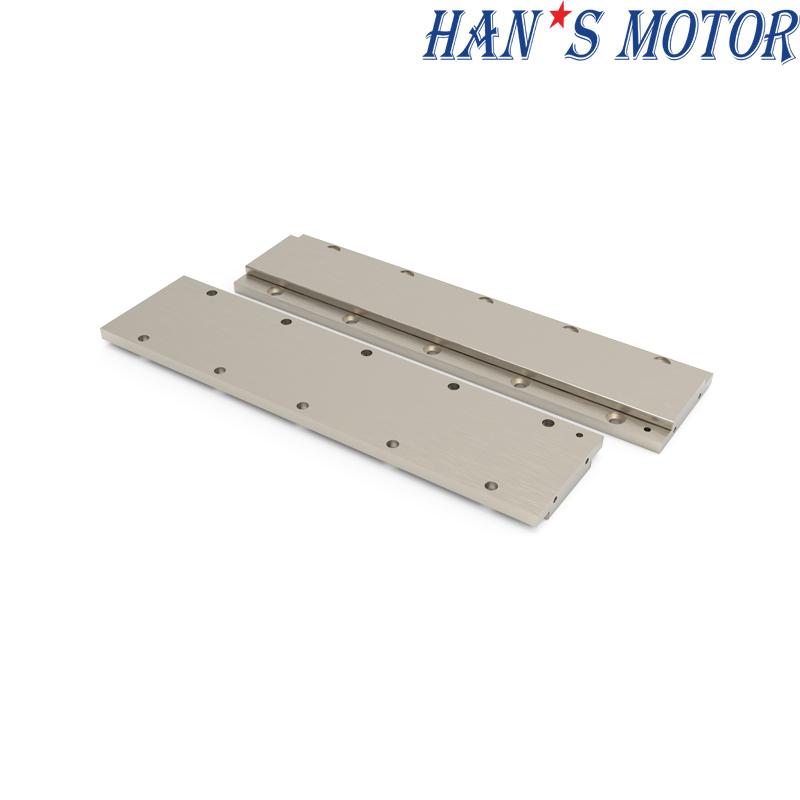

Stator Length |
||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |
| LSMU6202A | 167.5 | 1 | 2 | 2 |
|
LSMU6203A |
251.5 | 2 | 3 | 3 |
|
LSMU6204A |
419.5 | 4 | 5 | 5 |
Suitable for any mover of this series, stator installation mode can be selected.
Advantages:
1. High speed,
2. high positioning accuracy
3. Simple structure, maintenance
4. Safe and reliable work, long life

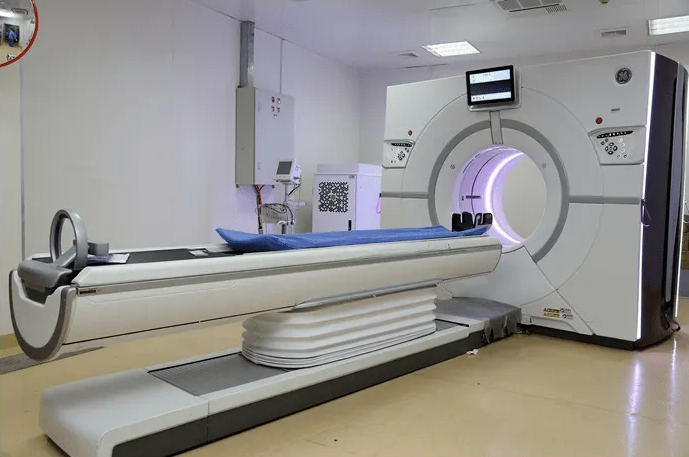

Application Case：Medical Industry
CT and MRI devices require very high precision. Need to bear a high inertia loads at very high speeds.The use of linear motor can achieve accurate and smooth control of the scanning table can improve the accuracy of diagnostic images and patient comfort.
