water cooling linear motor
water cooling linear motor
water cooling linear motor

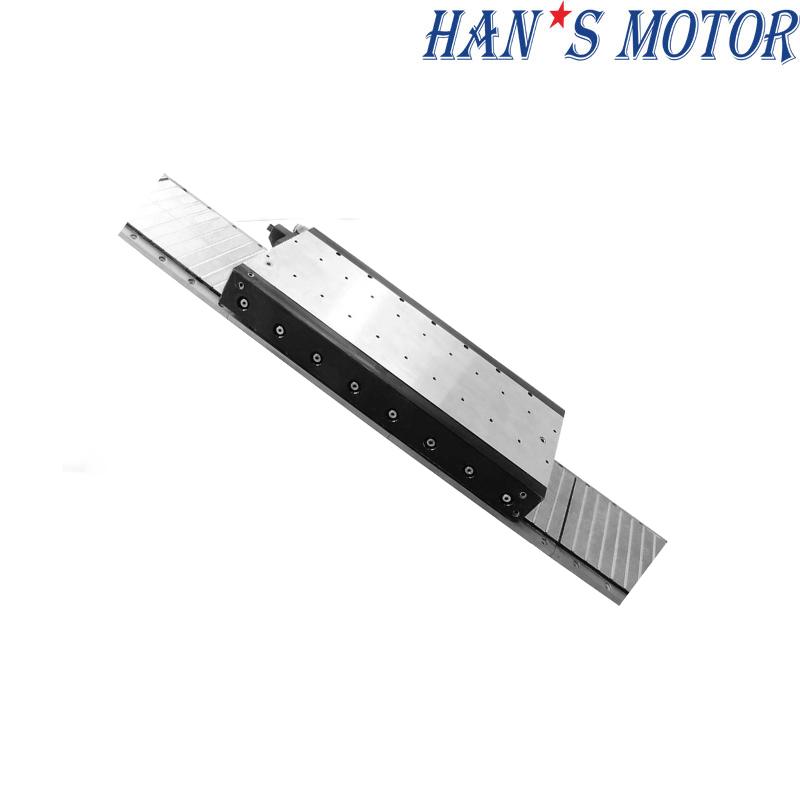

High thrust linear motor iron core with water cooling applied to cnc machining center

Features:

1. Core technology

2. low cogging effect

3. Water cooling structure

4.Large thrust density

5. High positioning accuracy, fast reaction speed

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:High thrust linear motor iron core with water cooling applied to cnc machining center


Specifications

Mover Spec.:LSMF610xxxx-x-H-WC
      201B-S             401C-P
PERFORMANCE PARAMETERS
    Symbol
    Units


Continuous Force (Tmax)
Fc N 1000 2000
Peak Force
Fp N 2600 5100
Motor Constant (25℃)
Km25
N/Sqrt(W)
54.7 73.8
Max.Continuous Power Dissipation
Pc W 459 1009
Continuous Current (Tmax)
Ic Arms
7.2 9.9
Peak Current (1S)
Ip Arms
18.5 26.0
Force Constant (25℃,±5%)
Kf N/Arms
143.0 208.0
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
47.7 69.3
Electrical Resistance(25℃,±5%)P-P
R
4.3 5.0
Inductance(25℃,±20%)P-P
L mH 52.5 57.0
Max Coil Temperature
Tmax
120 120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 47.6 47.6
Minimum flow of cold water
Wmin
L/min
4.5 4.5
Temperature difference between inlet and outlet
△T

5.1 5.1
Pressure drop (stator loop series)
△P
Bar
0.7 0.7
Magnetic Attraction
Fa
kN 4.7 9.4
Max.DC Bus Voltage
Ubus
V 600 600
Vmax,Fc@Vbus=310Vdc

m/s
3.6 2.3
Vmax,Fp@Vbus=310Vdc

m/s
2.2 1.2
Vmax,0@Vbus=310Vdc

m/s
4.5 3.1
Vmax,Fc@Vbus=537Vdc

m/s
2.2 1.4
Vmax,Fp@Vbus=537Vdc

m/s
1.2 0.5
Vmax,0@Vbus=537Vdc

m/s
2.9 2.0
Mover Mass
Mp Kg 9.5 18.0
Stator Mass within unit length
Ms Kg/m 14.0 14.0

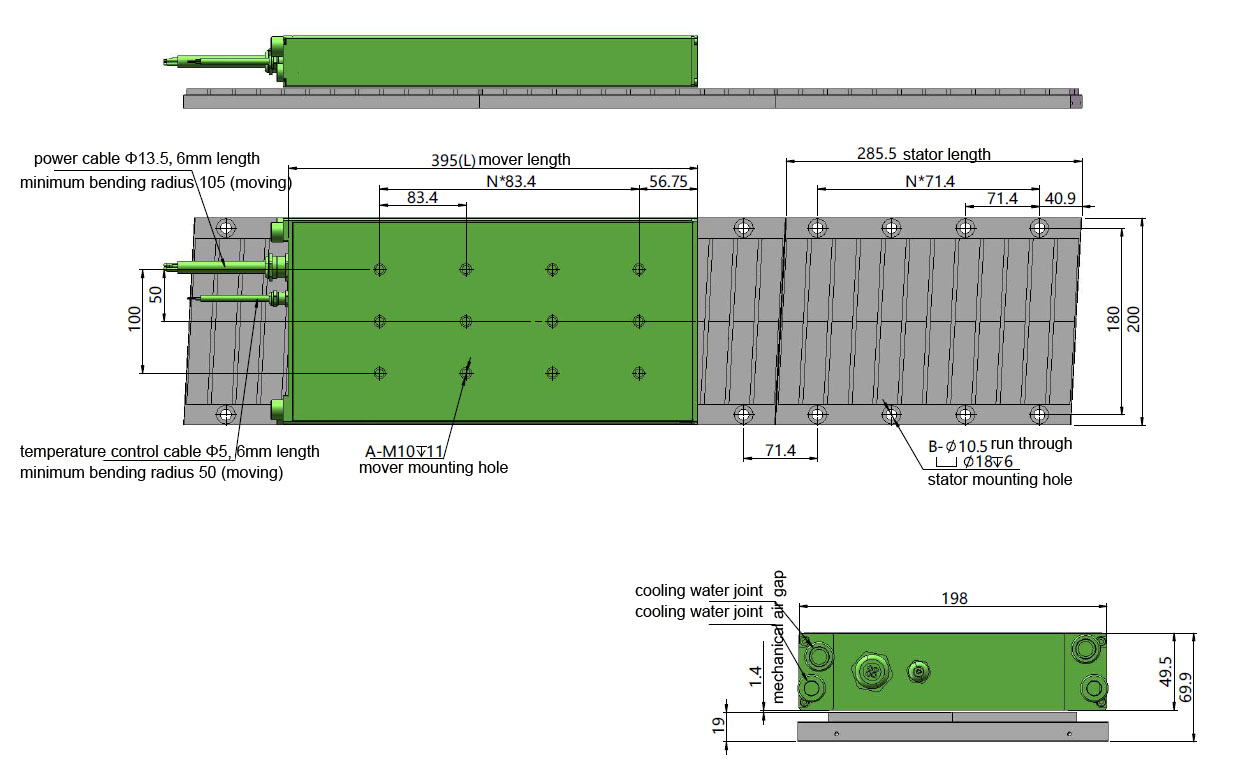

Dimension

water cooling linear motor

Mover Length
Mover model
Mover length L
C D Mover mounting hole A
LSMF510201C-S-H-WC
228
0 0 4
LSMF510401C-S-H-WC
407 95.3 83.4 8

Remarks:  1. Standard cable length is 6m, maximum outer diameter(d) of motor(201B) cable is d= 11.5mm, minimum bending radius within chain is 115mm; maximum outer diameter(d) of motor(401C) cable is d= 13.5mm, minimum bending radius within chain is 101.25mm. the length can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMF5201A
285.5 3 8
LSMF5203A
142.8 1 4

Suitable for any mover of this series.


Advantages:

1. High efficiency: fast moving speed is more than 1 times higher than rotary servo motor.
2. Isolated cooling: proprietary cooling structure design, low temperature rise < 3K (degrees Celsius).
3. High protection grade: IP65 high protection grade, suitable for harsh environment.
4. High precision: ultra-high positioning accuracy, bidirectional repeatable positioning accuracy up to 1μm.


Industry Applications:

HANS MOTOR applications


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
