Features：
1. 3 phase
2. High precision
3. High speed
4. High acceleration
5. Unlimited stroke
Brand:
HAN'S MOTOROrder(MOQ):

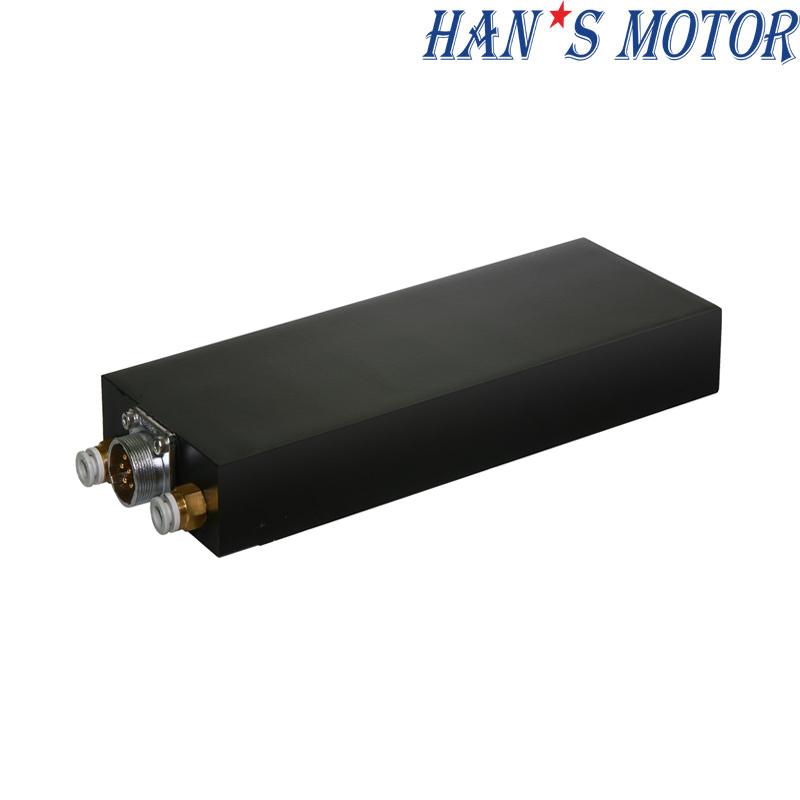

1Product name：High precision big thrust unique water cooling iron core linear motor
Specifications
|
Mover Spec.：LSMFH122xxxx-x-H-WC |
120A-S | 120A-P2 | ||
|
PERFORMANCE PARAMETERS |
Symbol |
Units |
|
|
|
Continuous Force (Tmax） |
Fc | N | 4378 | 3180 |
|
Peak Force |
Fp | N | 6830 | 6830 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
108.6 |
107.3 |
|
Max.Continuous Power Dissipation |
Pc | W | 2232 |
1207 |
|
Continuous Current (Tmax） |
Ic |
Arms |
11.0 |
16.0 |
|
Peak Current (1S) |
Ip |
Arms |
20.0 |
40.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
398.0 |
198.8 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
133.0 |
66.3 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
9.0 |
2.3 |
|
Inductance(25℃，±20%）P-P |
L | mH | 132.0 |
33.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 48.0 |
48.0 |
|
Minimum flow of cold water |
Wmin |
L/min |
6.5 |
6.5 |
|
Temperature difference between inlet and outlet |
△T |
℃ |
7.0 |
7.0 |
|
Pressure drop (stator loop series) |
△P |
Bar |
3.0 |
3.0 |
|
Magnetic Attraction |
Fa |
kN | 14.0 |
14.0 |
|
Max.DC Bus Voltage |
Ubus |
V | 600 |
600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
0.9 |
2.6 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
0.5 |
1.5 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
1.6 |
3.2 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
0.4 |
1.5 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
0.1 |
0.8 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
1.0 |
2.1 |
|
Mover Mass |
Mp | Kg | 20.0 |
20.0 |
|
Stator Mass within unit length |
Ms | Kg/m | 13.5 |
13.5 |

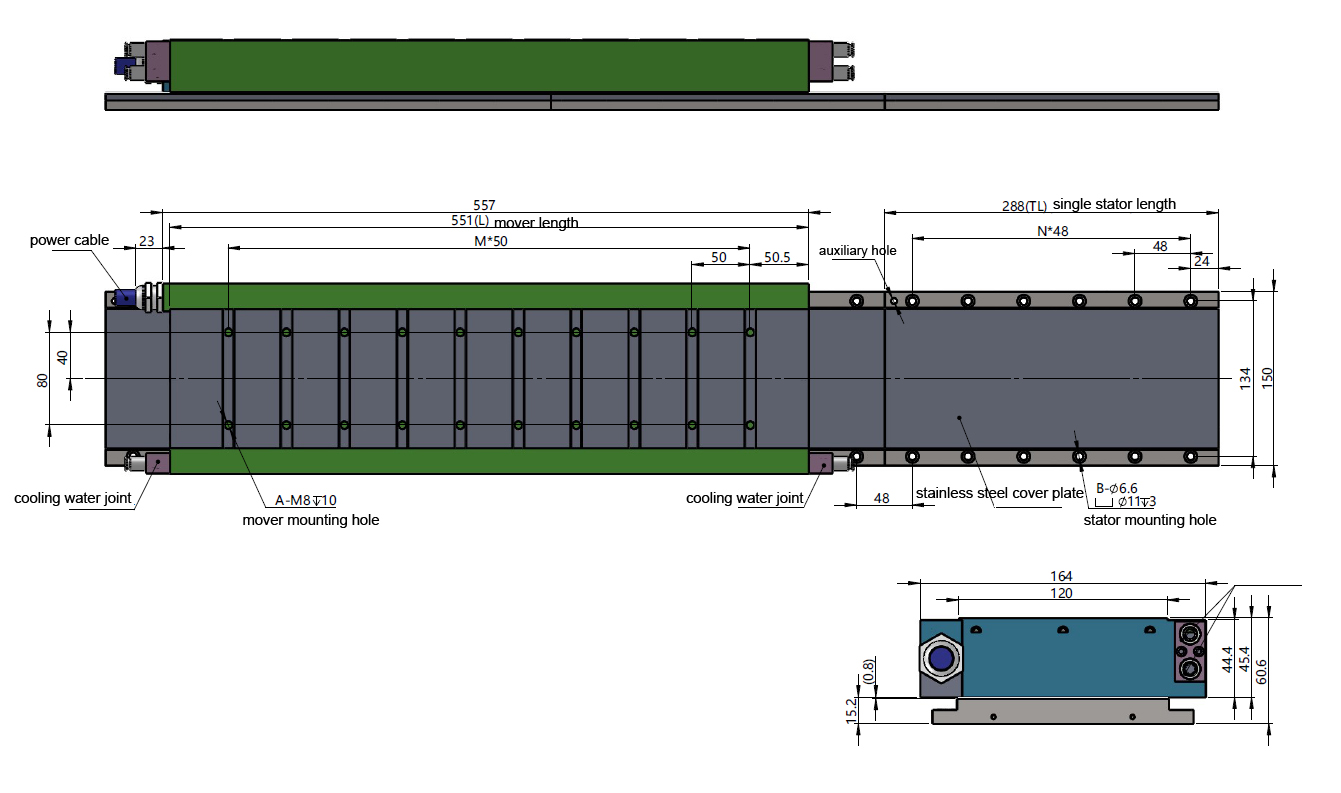

Dimension
|
Mover Length |
||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
|
LSMFH122120A-S-H-WC-P-A06.5 |
551 | 9 | 20 | |
|
LSMFH122120A-P2-H-WC-P-A06.5 |
551 | 9 | 20 | |
Remarks: 1. Standard cable length is 7m, maximum outer diameter of motor cable is 14mm, minimum bending radius within chain is 140mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
|
LSMH2120096A |
96 | 1 | 4 |
| LSMH2120144A | 144 | 2 | 6 |
|
LSMH2120288A |
288 |
5 | 12 |
|
LSMH2120384A |
384 | 7 | 16 |
Suitable for any mover of this series.

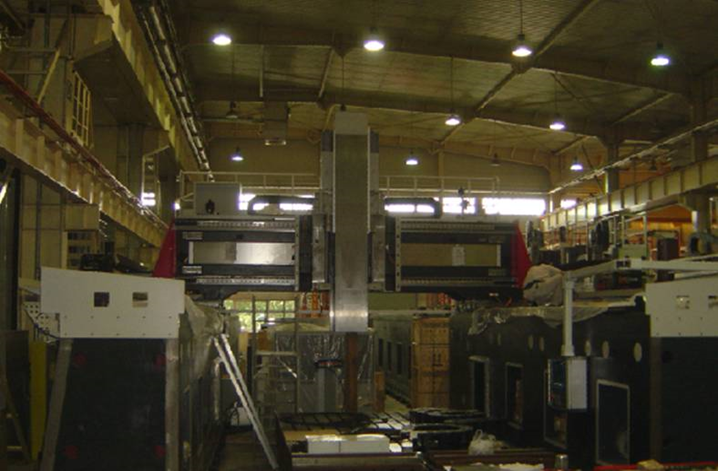

Application Case：High-speed gantry five-axis machining center
1. Stroke: 5500mm*3000mm
2. Load: 14 tons
3. Solution: 8000N water-cooling flat-plate linear motor
Laser Group Show
Our Company Show

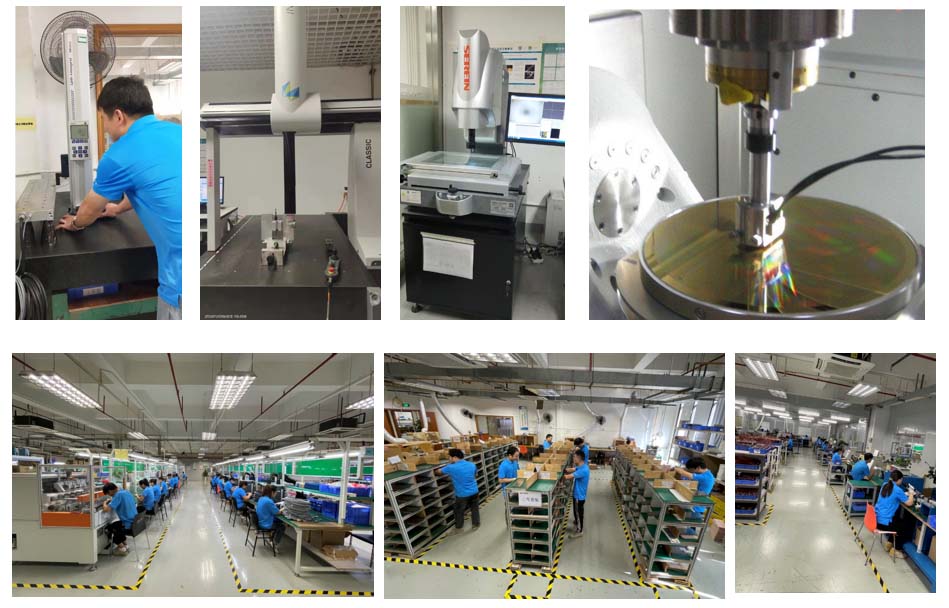

Production Center Show
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
