What is a torque motor?

A torque motor is a specialized form of DC electric motor which can operate indefinitely while stalled, without incurring damage.Torque motors are a special class permanent-magnet synchronous motors. Since the payload is directly connected to the rotor without the use of transmission elements.

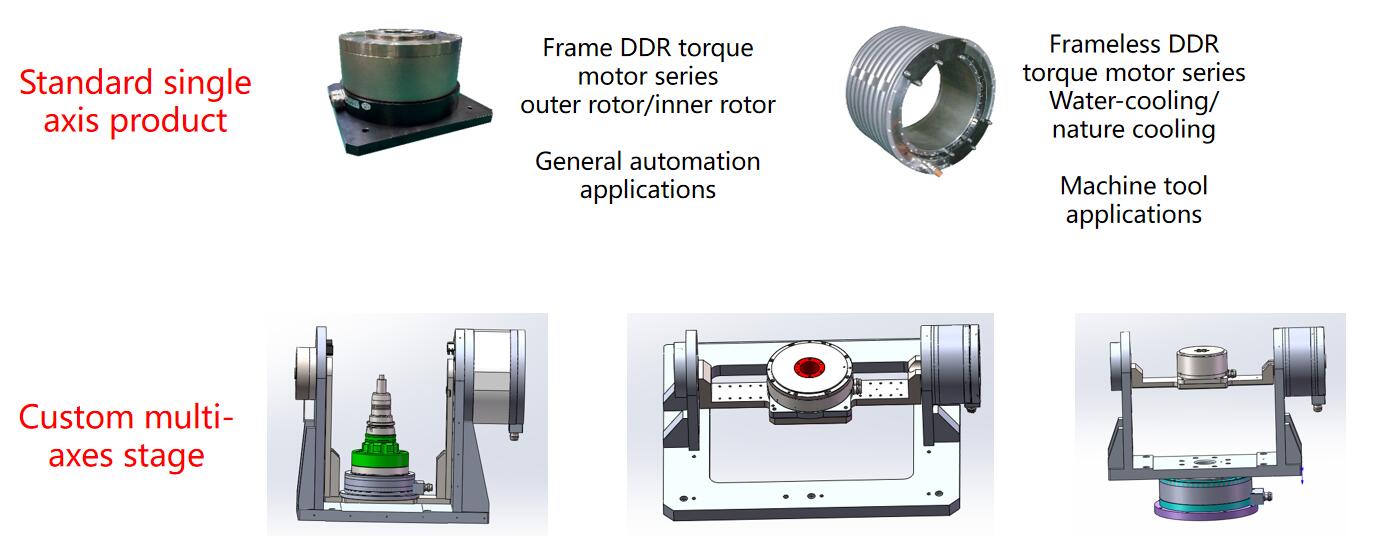

Torque motors are classified as direct drives, including frameless torque motor (inner rotor) or frame torque motor (inner rotor or outer rotor.

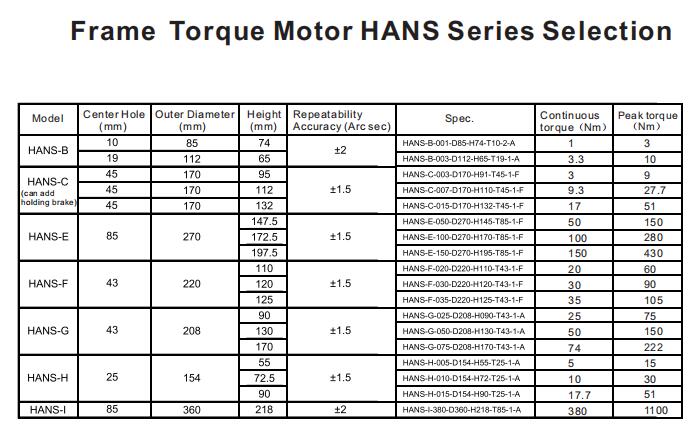

HANS series torque motor Selection

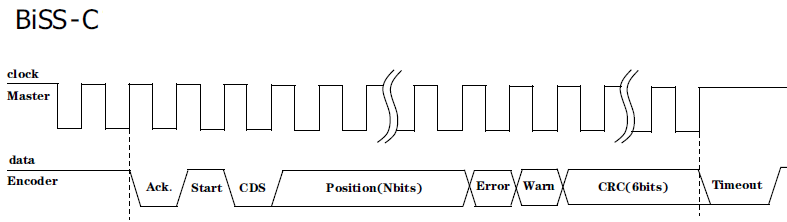

Encoder

Torque motor adavantages:

High precision：Repeatability accuracy≤±2″, after positioning accuracy compensation ≤±5″
Self-research absolute encoder, no need Hall, no commutation jitter
Serial design, peak torque maximum 1100Nm
Large hollow, easy for wiring
Short delivery time
Low cost
Customs winding to save cost of driver

Toque motor Applications:
