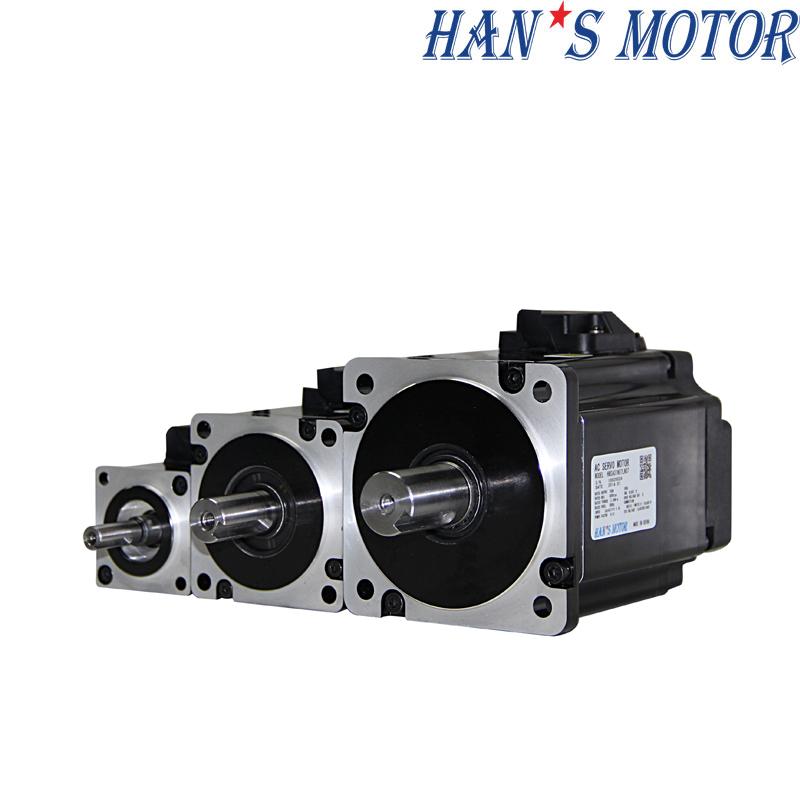

High Torque High Rated Power 0.4KW AC Servo Motor Driver kit
Product description:
Low vibration, high-speed output, constant current control.
Features:
1. Durable usage, wide application, low noise, high efficiency, high precision;
2. Compact structure, short body and small volume;
3. LCD digital display, modern industrial design, synchronous servo motor.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: High Frequency 23bit Low Inertia AC220V Servo Motor Driver Kit
Product Specifications
|
RATED PERFORMANCE |
||
|
Motor Model |
Unit |
HSAL-A04FL-B0.2-C2 |
|
absolute photoelectric encoder ( 23bits single loop) |
||
|
Rated output power |
W |
400 |
|
Votalge |
VAC |
220 |
|
Rated torque |
N.m |
1.27 |
|
Max.torque |
N.m |
3.82 |
|
Rated current |
A |
2.4 |
|
Max.current |
A |
7.2 |
|
Rated speed |
RPM |
3000 |
|
Max. speed |
RPM |
6000 |
|
torque constant |
N.m/A |
0.54 |
|
Back EMF Constant （25℃,±10%） |
mV/RPM |
32 |
|
inertia of rotor |
10-4 kg.m2 |
0.31 |
|
Resistance (25℃,±5%) p-p |
Ω |
4.1 |
|
Inductance (25℃,±20%) p-p |
mH |
14 |

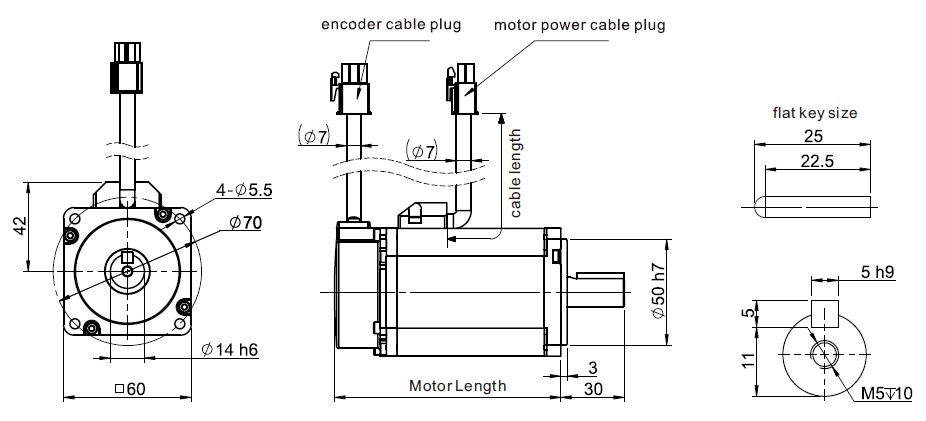

Dimension
Characteristics:
1) Servo drives can control torque, velocity or
position;
2) Over-current, over-heat, over-voltage and motor over-heat protection;
3) High Power, high torque and high performance;
4) High quality and stable performance;
5) Faster, more accurate, consistent, and safer;
6) Factory direct deal price.
Why choose us?
1. Q: What is your main line of business?
A: Han's Motor focus on linear motors, torque motors, motor modules, motion stages, AC servo systems,
variable frequency drives, and so on.
2. Q: What’s your company？
A: SHENZHEN HAN’S MOTOR S&T CO., LTD. is the company who integrated with R&D, production, marketing & sales. Which has specialized in direct drive system in the domestic research, development, promotion, application for 16 years.
3. Q: Do you have the test equipment?
A: We have completed testing equipment in production line.
4. Q: What's the advantage of your company?
A: Strong service team, factory direct price, stable quality, easy for installation and maintenance, delivery on time.
Applications:
Machinery: numerical control machine tool, textile machinery, packaging machines, printing machines, cutting
machines, marking machines, industrial robots.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: Carton box packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: 15 days for the small order and 20 days for the bulk order
